Chapter 2 Hardware Installation
Chapter 2
Rear Panel I/O Ports
The rear panel I/O ports consist of the following:
• 2 HDMI ports
• 2 RJ45 LAN ports
• 2 USB 2.0 ports
• 2 USB 3.0 ports
• 1 Mic-in jack
• 1 Line-out jack
LAN 1LAN 2
USB 3.0USB 2.0
HDMI 1 HDMI 2
Mic-in
Line-out

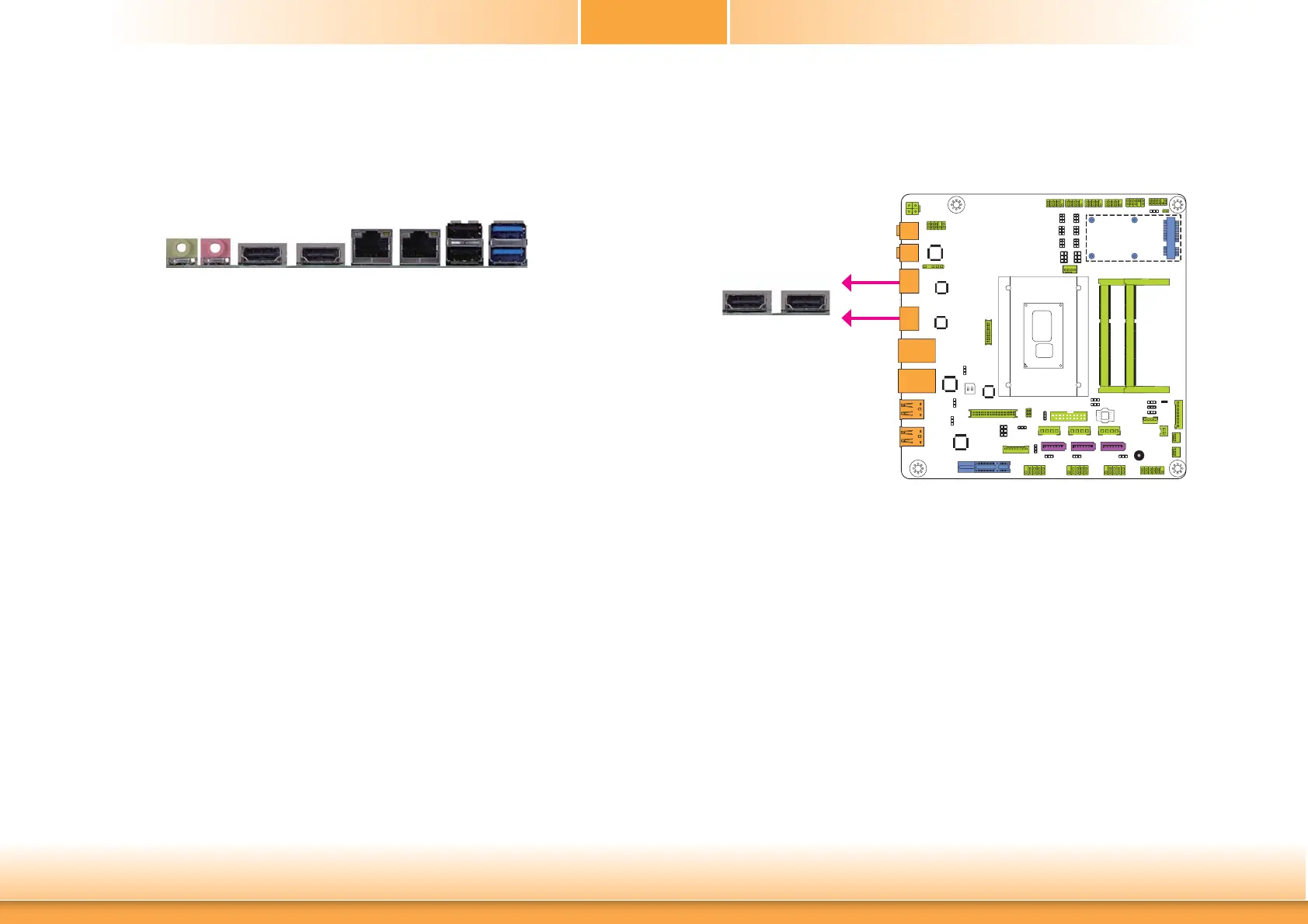

Graphics Interfaces
The display ports consist of the following:
• 2 HDMI ports
HDMI Port
The HDMI port which carries both digital audio and video signals is used to connect a LCD
monitor or digital TV that has the HDMI port.
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
HDMI 1 HDMI 2
HDMI 1
HDMI 2
