Chapter 2 Hardware Installation
Chapter 2

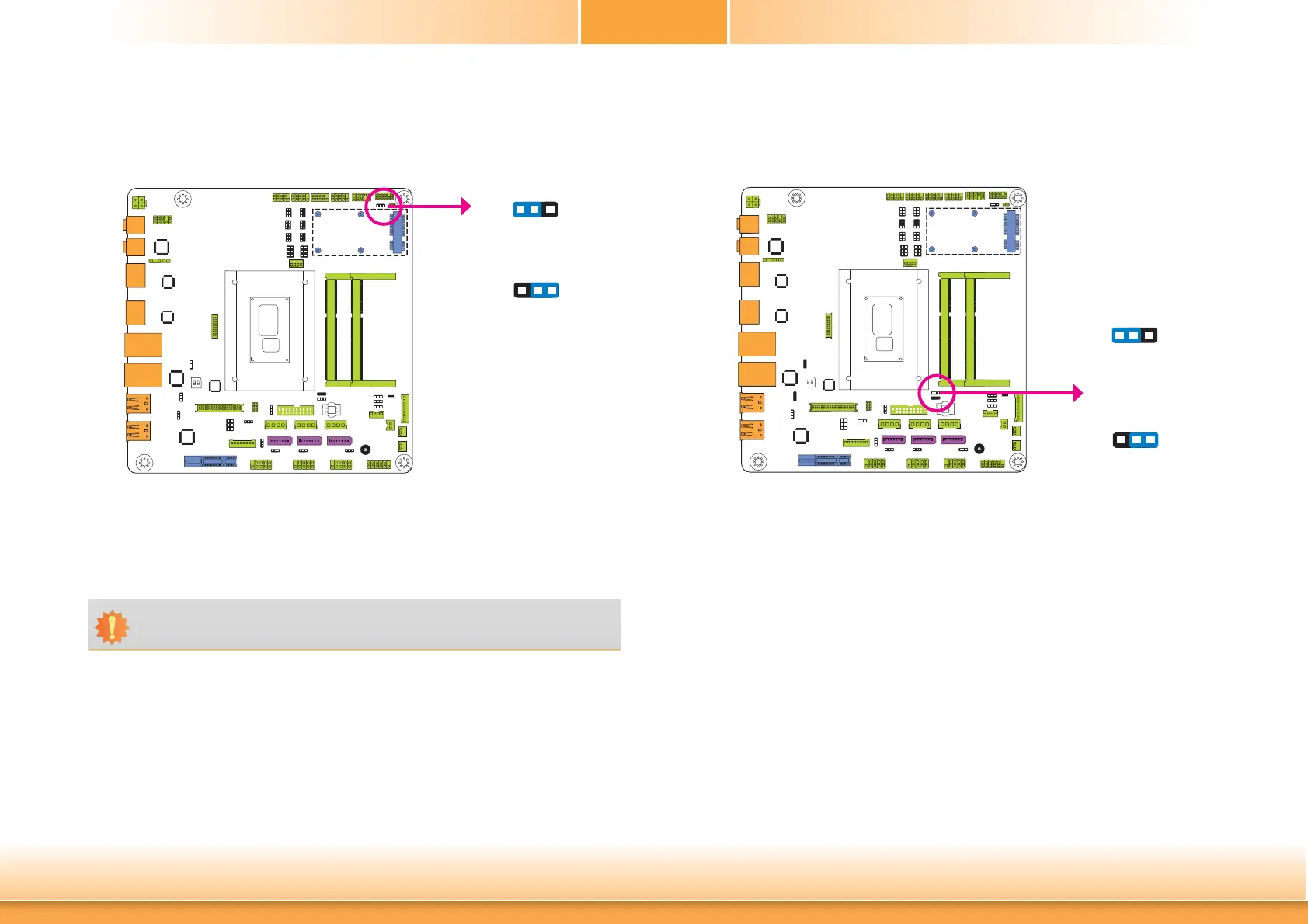

Mini PCIe Signal Select
JP17 is used to select the Mini PCIe signal: PCIe or mSATA.
2-3 On: mSATA
1-2 On:
PCIe (default)
JP17
132
132
PS/2 Keyboard/Mouse Power Select
JP2
1-2 On: +5V (default)
2-3 On: +5V_standby
132
132
JP2 is used to select the power of the PS/2 keyboard/mouse port. Selecting +5V_standby will
allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
Important:
The +5V_standby power source of your power supply must support ≥720mA.
