DFI HU101 - SATA DOM Power Select

18
Chapter 2 Hardware Installation
Chapter 2
SATA DOM Power Select
Note:
SATA port 0 provides adequate space for SATA DOM.

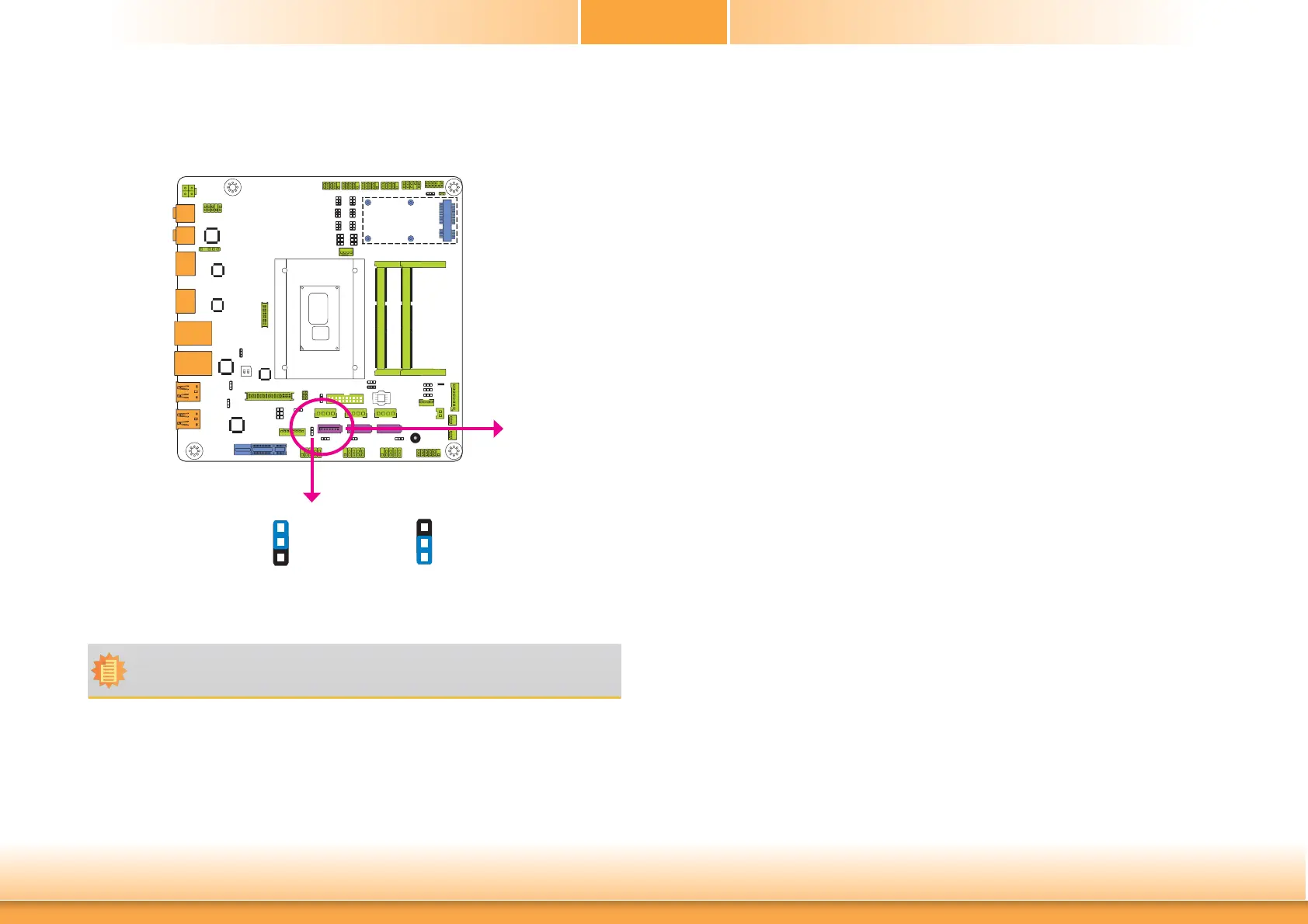

JP20 is used to select the power level of SATA DOM.
1-2 On: GND (default) 2-3 On: +5V
JP20
SATA 0
3
1
2
3
1
2
