Maintenance Manual LS4
Issued: May 2011
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only

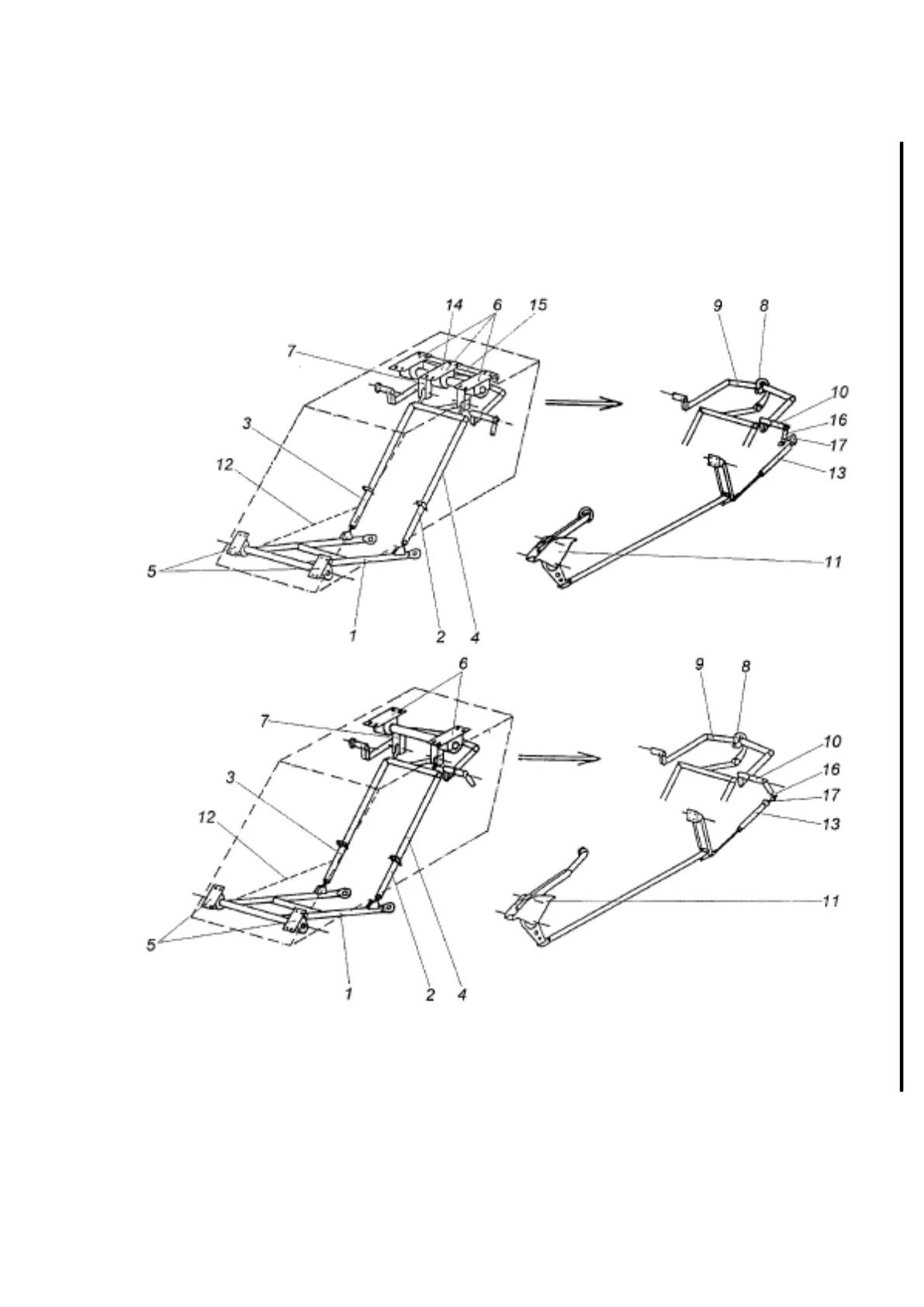

1.13 Landing gear
Sprung and retractable, housed in a closed box, left hand operation. A gas
strut in the LG operation system provides a constant pressure on the system
to prevent from damage during failures when rigging the glider.
Tail skid including cable deflector at front end or tail wheel optional.
LS4-a, LS4-b
LS4 with TN 4013 executed
LS4
Parts list see next page
