8.3 Permanent installation of equipment in baggage compartment
Installation is possible as follows:

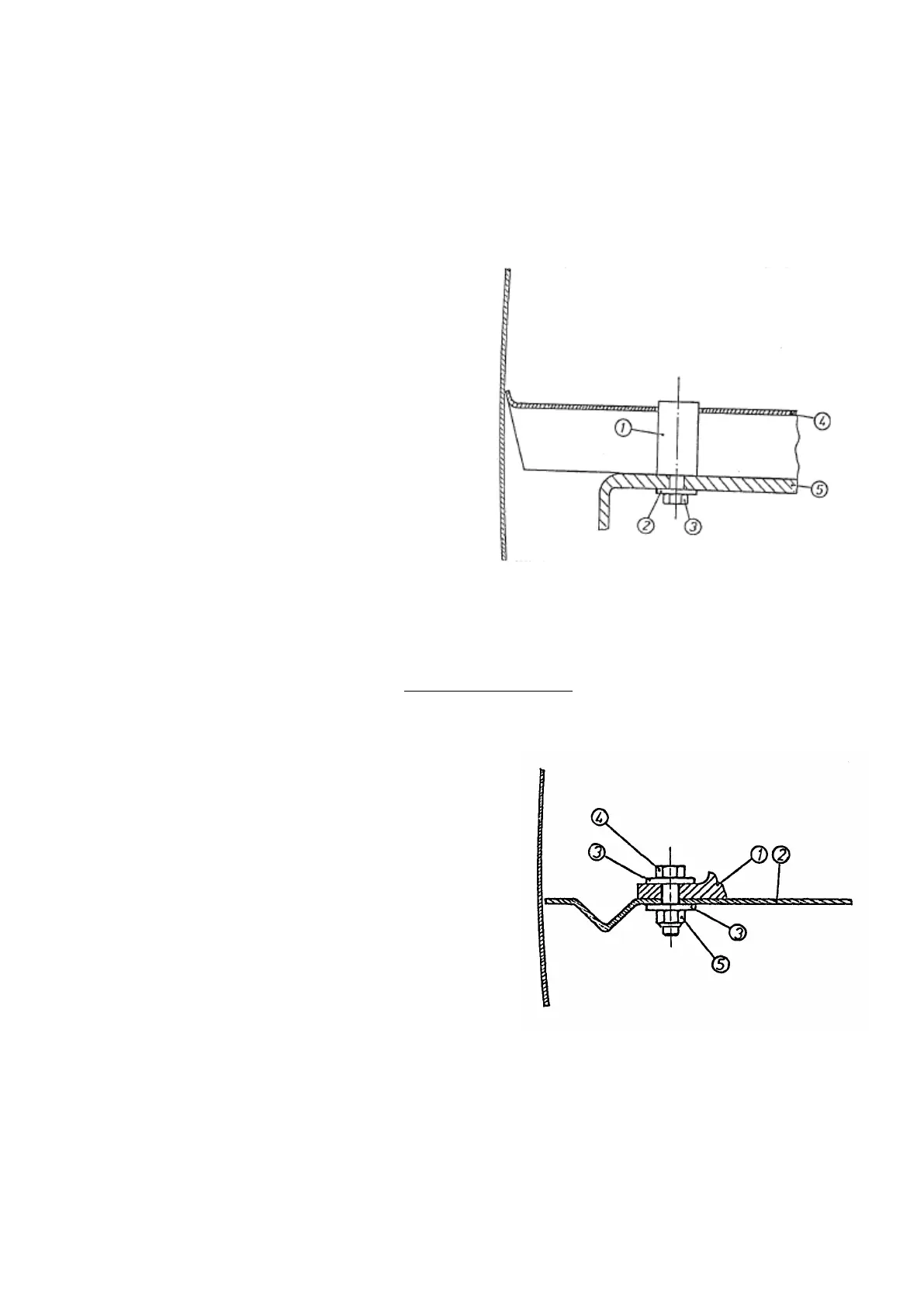

a) Equipment must be attached to landing gear box >5< (not to the baggage
compartment floor) using threaded spacers >1<, three of which are
necessary per unit.
Baggage compartment cover >4< has to be cut to for the spacers
(numbers see sketch).
1. Spacer, diameter 15 mm (o.6 in),
length 23 mm (0.91 in). (part
4R7-8d)
2. Large washer B 6.4 DIN9021
3. Screw M6*10 DIN85-A2,
stainless steel (secured with
Loctite 243)
4. Baggage compartment cover
5. Landing gear box
b) Only LS4-b: Attach to cover behind spar connection (only approved
for ELT and Barograph) as close as possible to stiffening corrugation. Use
large steel washers according to DIN 9021 (15 mm diameter for 5 mm
thread) and self locking nuts .
1 Flange of equipment part
2 Rear bagage compartment
floor
3 Washer B5,3 DIN9021-St zn
outside dia.: 15mm
4 Bolt M5 length according to
thickness of flange
5 Lock nut M5 width over
flats: 8mm (M5 DIN985-8)
Caution: Don’t exceed the max. baggage compartment load of 5 kg (11 lbs.)
with loose and permanently installed items.
