DG Flugzeugbau LS4 - Hint for Working at the Control Systems

Maintenance Manual LS4
Issued: May 2011
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
1-13
1.15 Hint for working at the control systems
Caution: When working on control systems:
Protection against corrosion (humidity entering pushrods) required for
previously used inspection openings to check minimum reach of thread to be
dropped.
Used rod end bearings may have different thread lengths with identical heads.
Therefore, before adjusting rod end bearings, remaining thread reach must be
checked by dismantling.

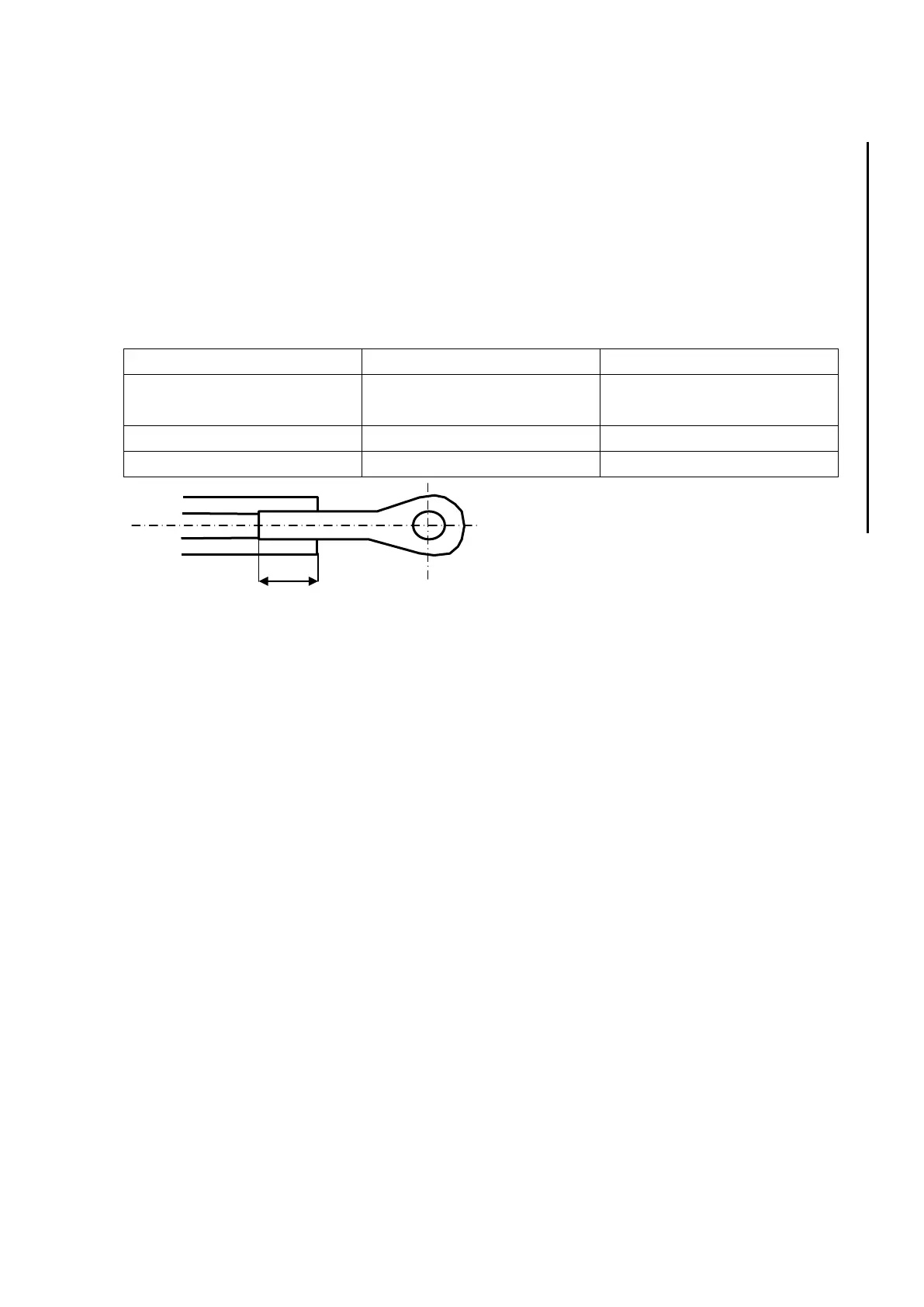

Thread diameter
Minimum reach x
Rod end designation
M6 x 1 (Standard)
17 mm / 0.67 in
EM 6 R (used in single
cases only)
M8 x 1,25 (Standard)
17 mm / 0.67 in
various versions possible
M10 x 1 (Fine thread)
17 mm / 0.67 in
PM 6 long
x
