DG Flugzeugbau LS4 - Page 90

Maintenance Manual LS4
Issued: May 2011
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
7-6

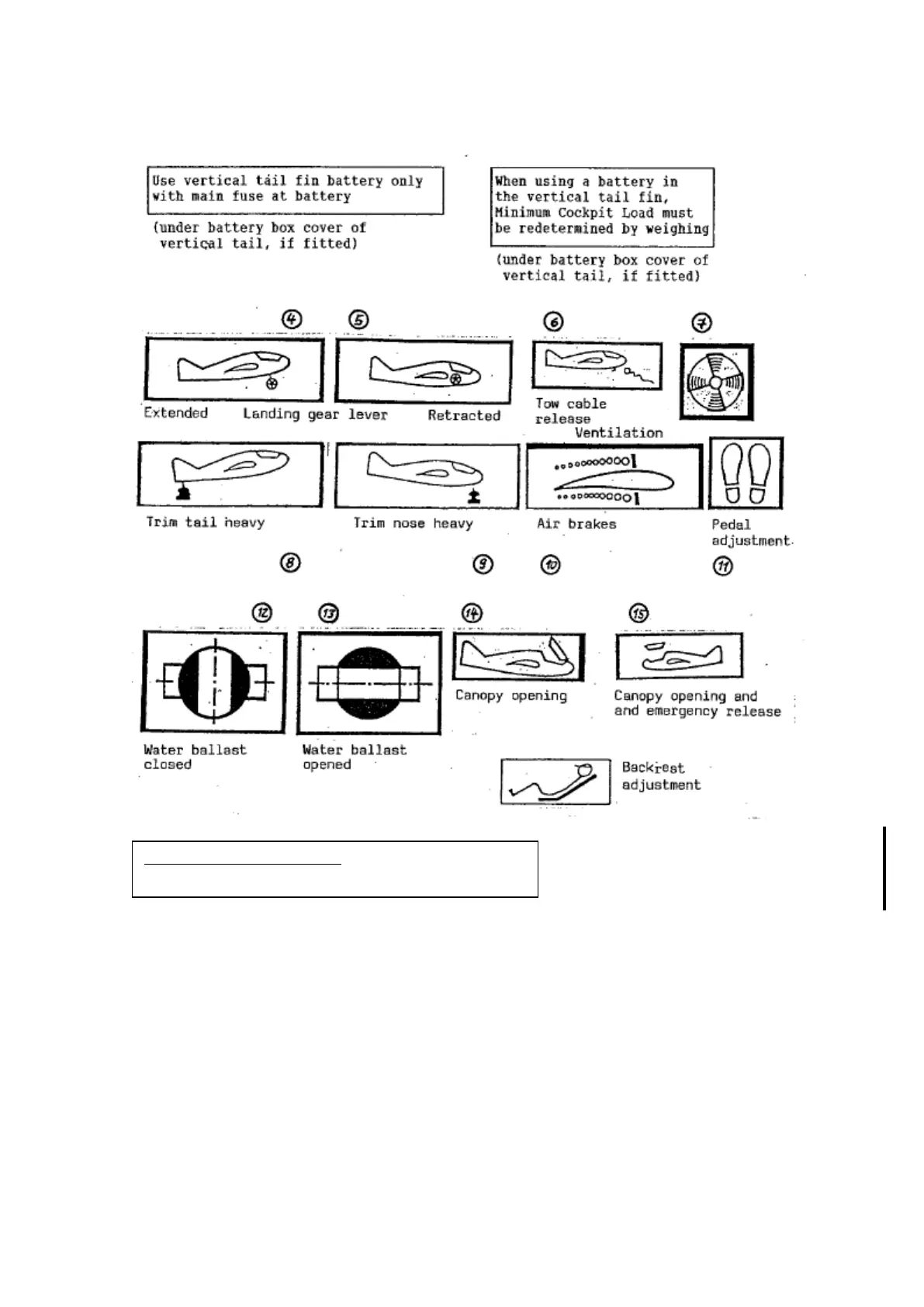

Placards and markings LS4-b cont.
near right canopy opening handle
CanopyEmergency Release: open left side normally,
Pull right side with approx. 15 kg/33 lbs. force to stop
