Transmitters 9 November 2001 103
Next Chapter
Tran sm it te r
Turn off the key switch before
plugging the transmitter into a
powered shelf.
3. Make sure the transmitter’s key switch is off. Then, hold
the module with the fins on the left side, and slide the
module part way into the slot. Verify that the module’s
connectors line up with those on the shelf.
CAUTION
Do not push or pull on the shield. Do not use the shield as a
handle.
The handle must be in the “release” position to permit the
module to slide in fully.

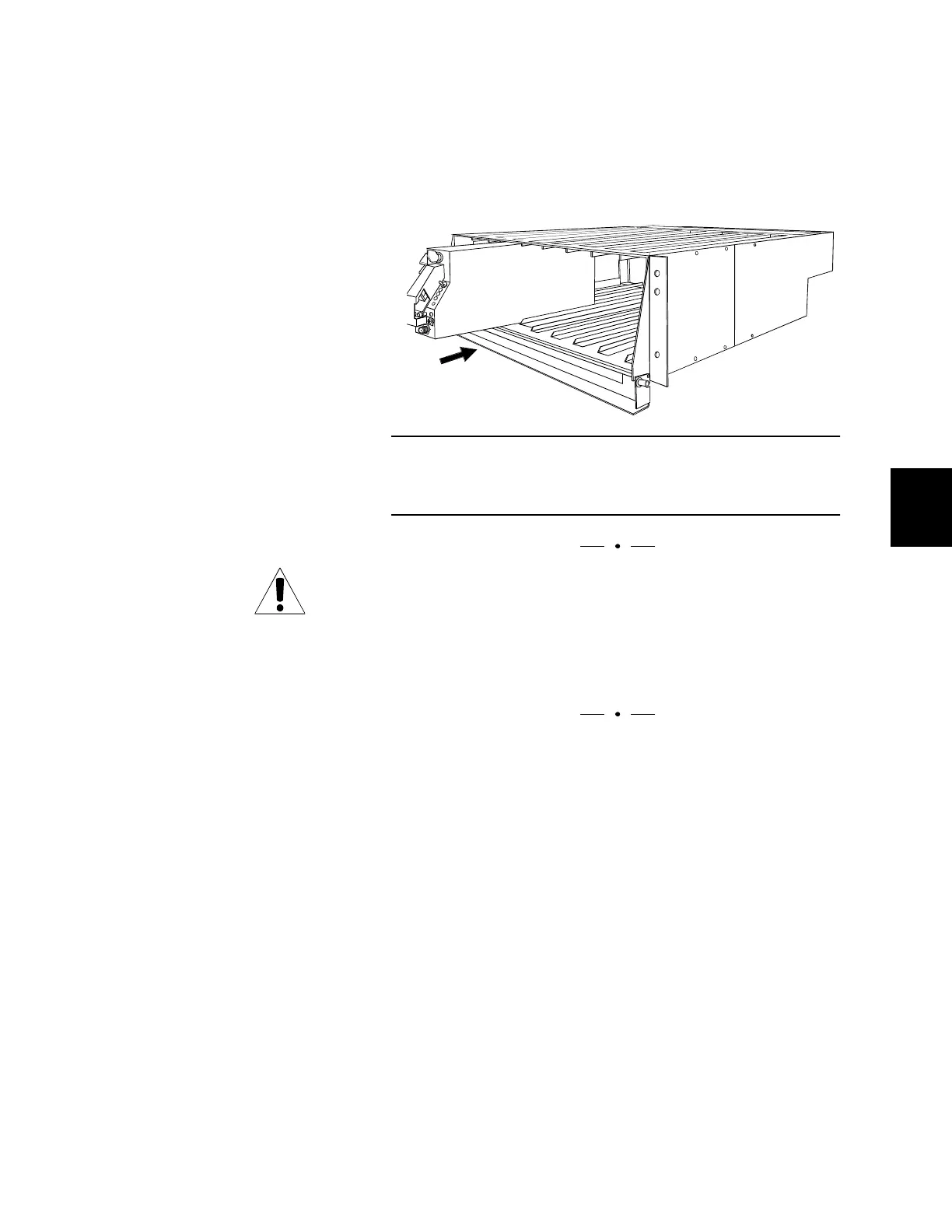

Figure 45. Module Installation
Hold the module with the fins on the left side and slide the
module into the slot.
