5. Turn water supply on to pressurize the system. The timer will open momentarily
and then will shut off.
6. The unit is now ready to be programmed.
FAUCET INSTALLATION
1. Wrap the swivel adapter and the nipple male pipe threads with 4-6 layers of
Teflon tape in a clockwise direction.
2. Screw the swivel adapter male threads into the inlet side of the controller valve
and tighten with a wrench or pliers. Repeat the steps with the ¾” MPT x MHT
nipple. (see Figure 4).
Note: Do not apply any Teflon tape to the male hose thread faucet.
3. Make sure the washer is in place inside the female swivel adapter, and then
screw the female swivel threaded clockwise onto the faucet and tighten by
hand only. Do not use pliers or a wrench. (Figure 5)
4. Turn on the faucet and check for leaks.
Warning: Do not tighten the swivel nut with pliers or wrench: Over-
tightening can cause damage to the swivel and washer resulting in leaks
and/or disconnection from the faucet.

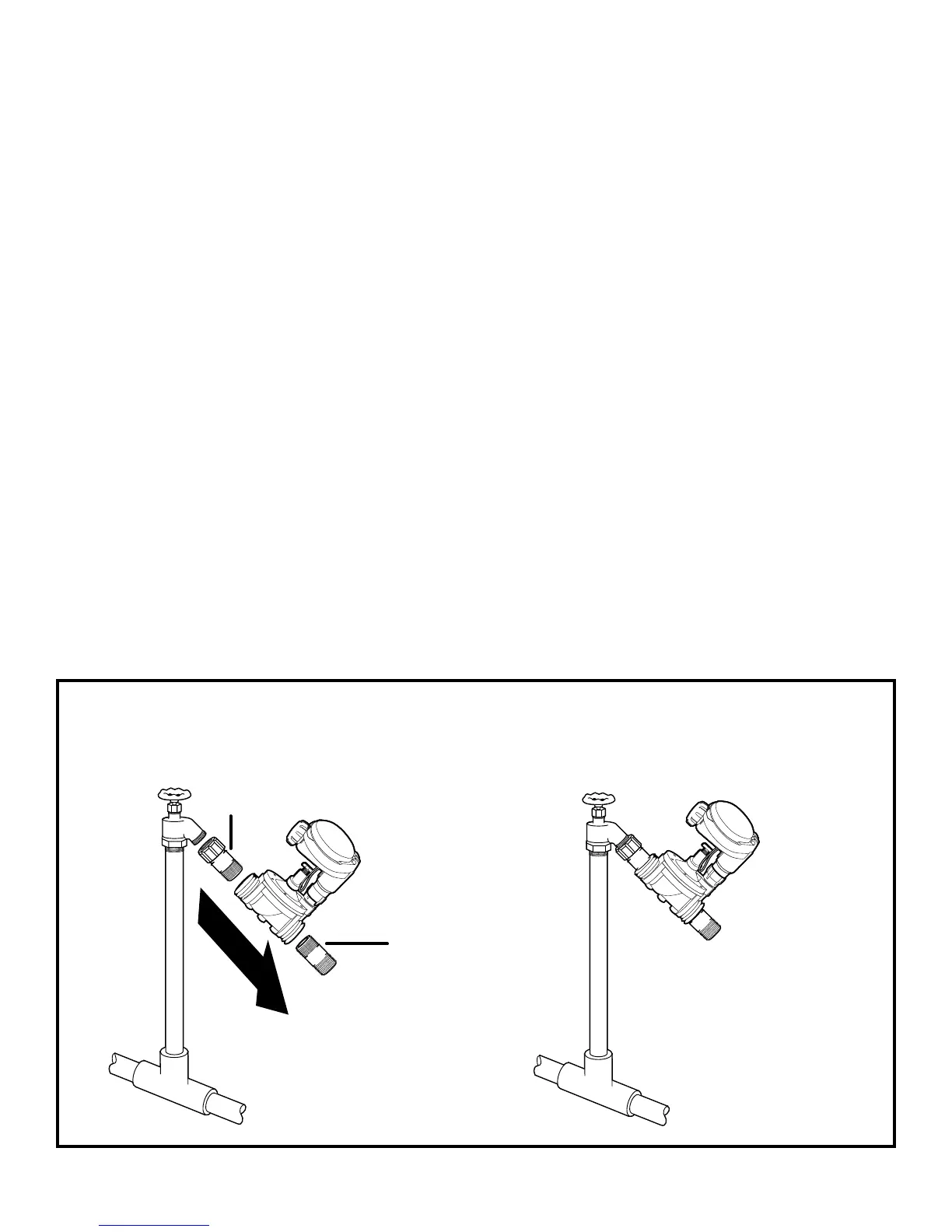

Basic installation of converting the controller with pipe thread into a hose thread
5
Figure 2
3/4 in. FHT x MNPT
swivel adapter
Nipple pipe
x hose thread
Figure 5Figure 4
water
flow
