Main Power Connector

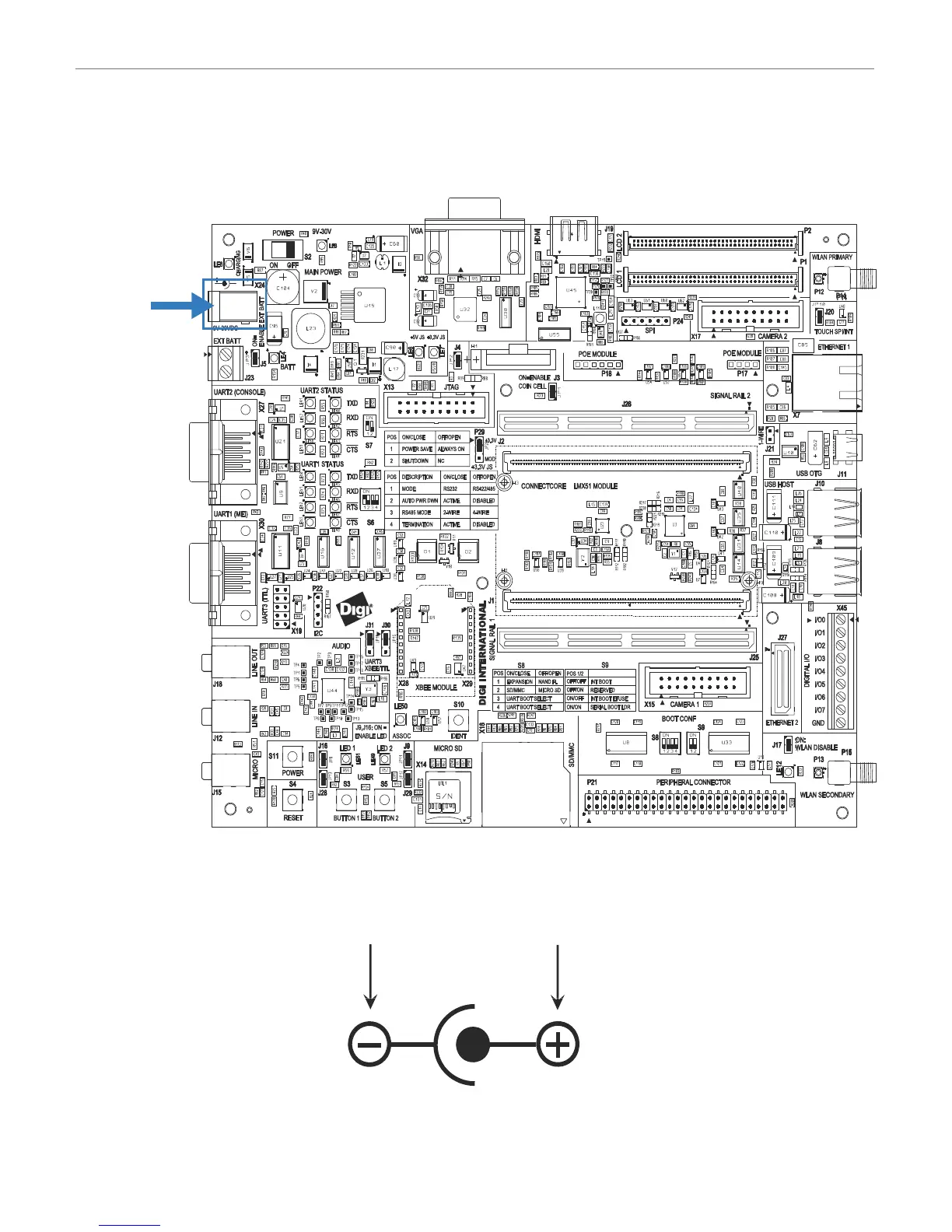

The main power connector (X24) is a barrel connector for the development board’s 9-30VDC
power supply. The figure below shows the polarity.
Power
Connector,
X24
Ground 9-30 VDC
