Switches and Push-buttons
Power Switch, S2
The development board has an ON/OFF switch, S2. The power switch S2 can switch both 
9V-30VDC input power supply and 12VDC coming out of the optional PoE module. However, if
a power plug is connected to the DC power jack, the PoE is disabled.

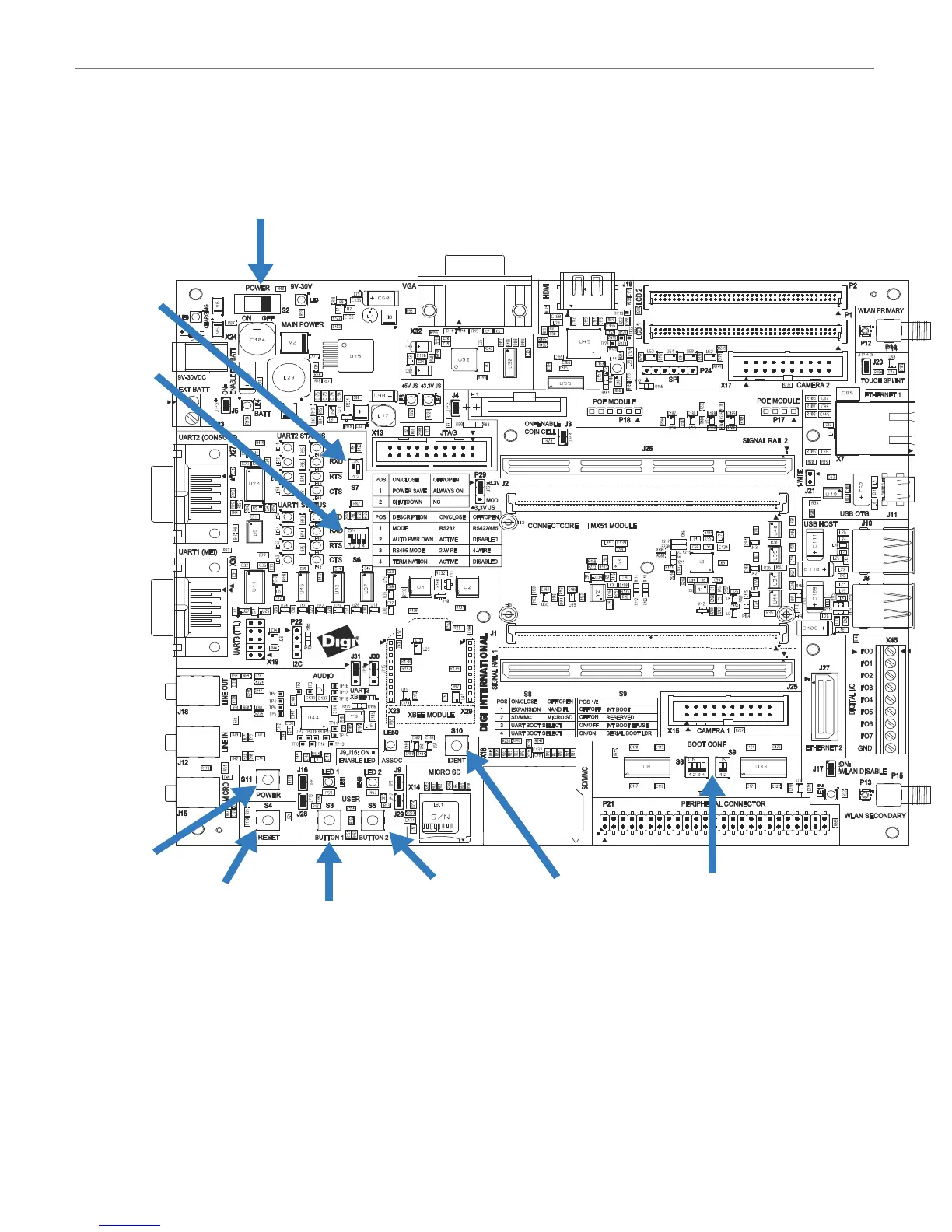

Power Switch, S2
UART 2
Switch, S7
UART 1
Switch, S6
Power
Button, S11
Reset
Button,
S4
User
Button 1,
S3
User
Button 2,
S5
Ident
Button 1,
S10
Boot Conguration
Buttons S8, S9
