Ethernet 1 Interface
The development board provides one 8-wire RJ-45 jack with integrated 1:1 transformers and
link/activity LEDs for the Ethernet 1 interface. This interface is attached to the Fast Ethernet
controller (FEC) of the i.MX51. The ConnectCore for i.MX51 module provides a 10/100
Ethernet PHY chip for this interface.
The Ethernet 1 RJ-45 connector also supports 802.3af (PoE).

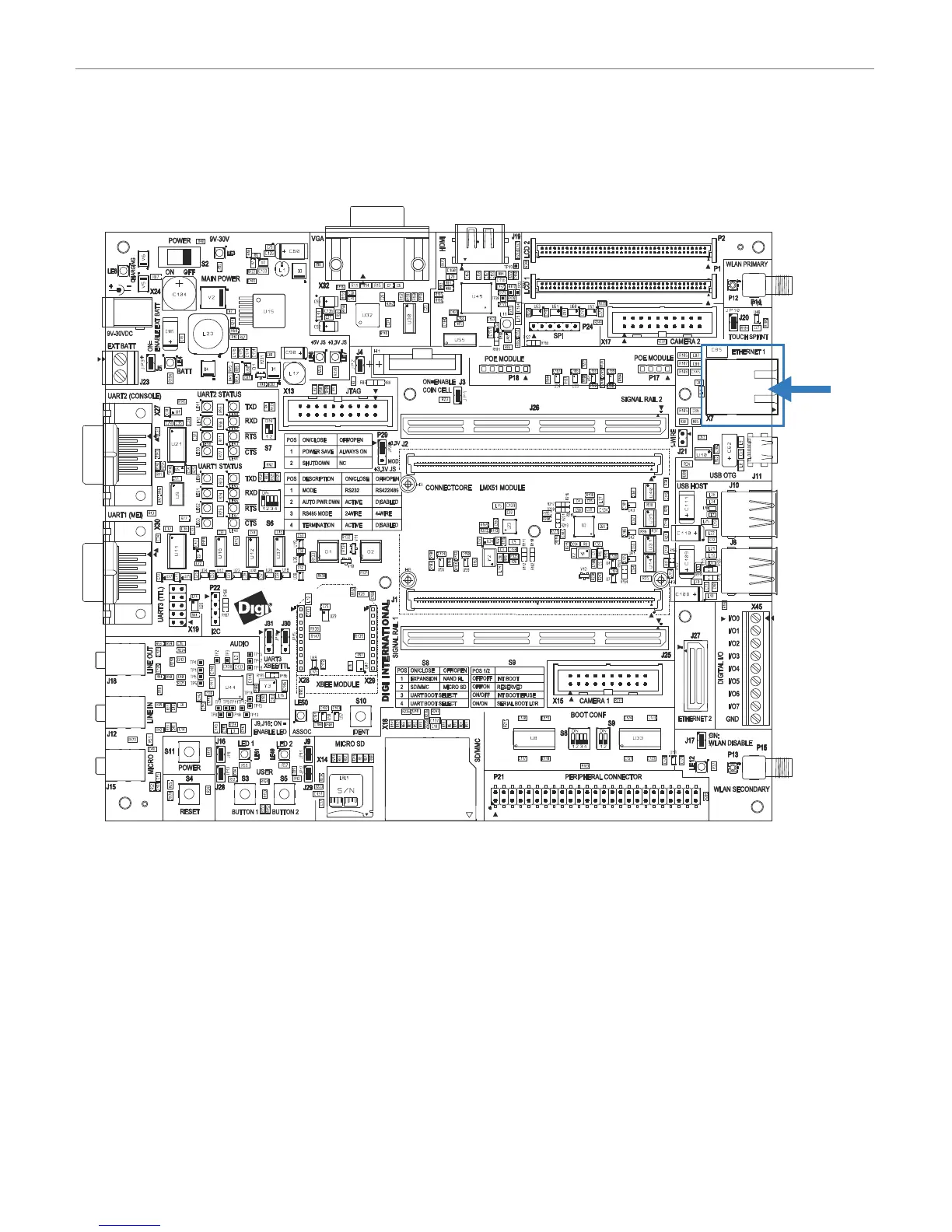

Ethernet 1
RJ-45,
X7
