Network Interface
Antenna specifications: 802.11 a/b/g antenna
Attributes
Dimensions
Note:
Dimensions are provided for reference purposes only. The actual antenna might vary.
Attribute Band 1 Band 2
Frequency 2.4 ~ 2.4835 GHz 5.15 ~ 6 GHz
Bandwidth 120MHz 875MHz
Wavelength 1/4 Wave 1/4 Wave
Impedance 50 Ohm 50 Ohm
VSWR < 19 typ. Center < 19 typ. Center
Connector RP-SMA RP-SMA
Gain 2.3dBi 3.6dBi

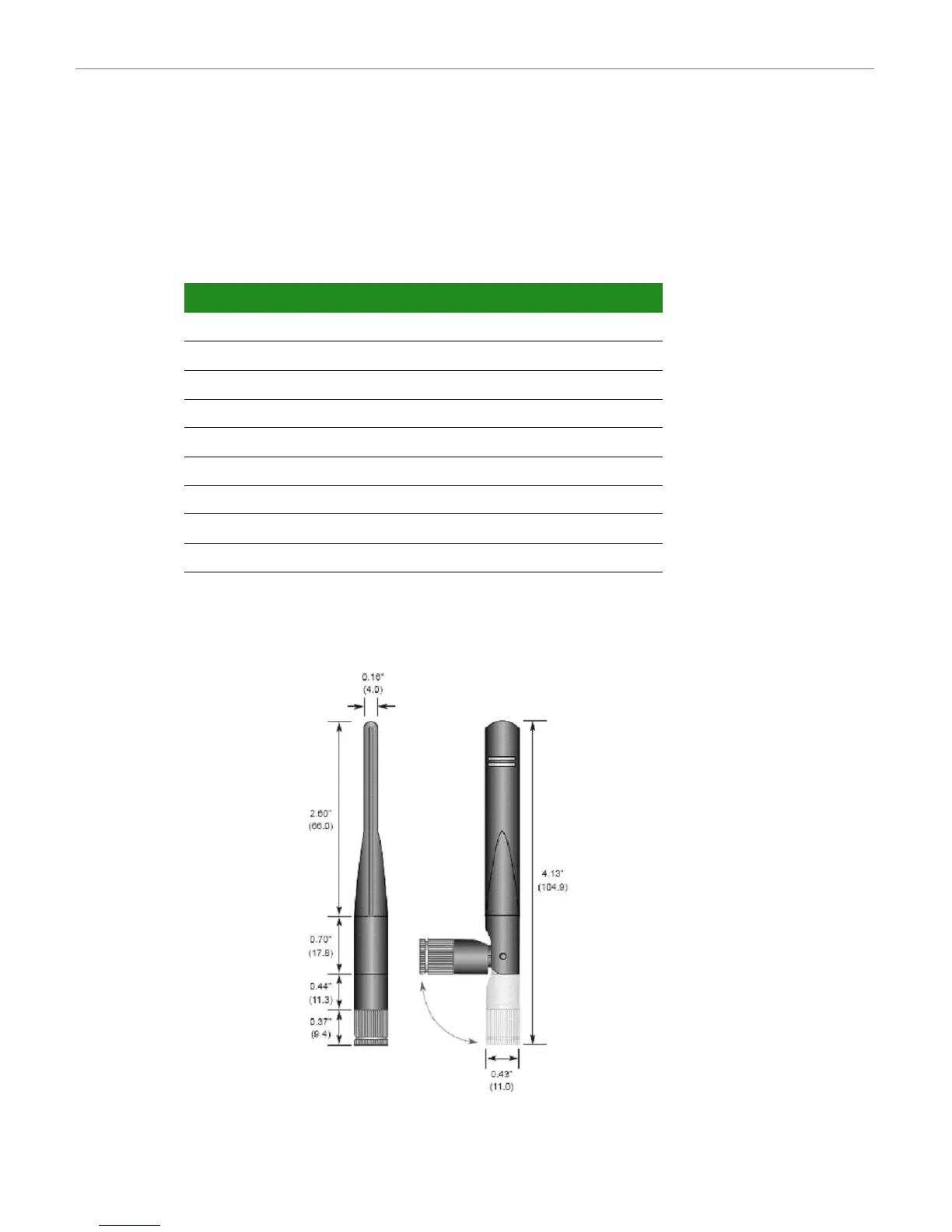

Dimension See measurements in the drawing after this table
Part Number ANT-DB1-RAF-RPS
