Signature labeller - Replacement of wear strip
When the wear strip has worn out or become damaged, the quality of print will deteriorate.
The wear strip is held in-place by the near edge stripping bar clamping it between that and the near edge
support bar
Underneath the wear strip is a silicone tube mounted into the stripping bar, this may also need replacing
from time to time.

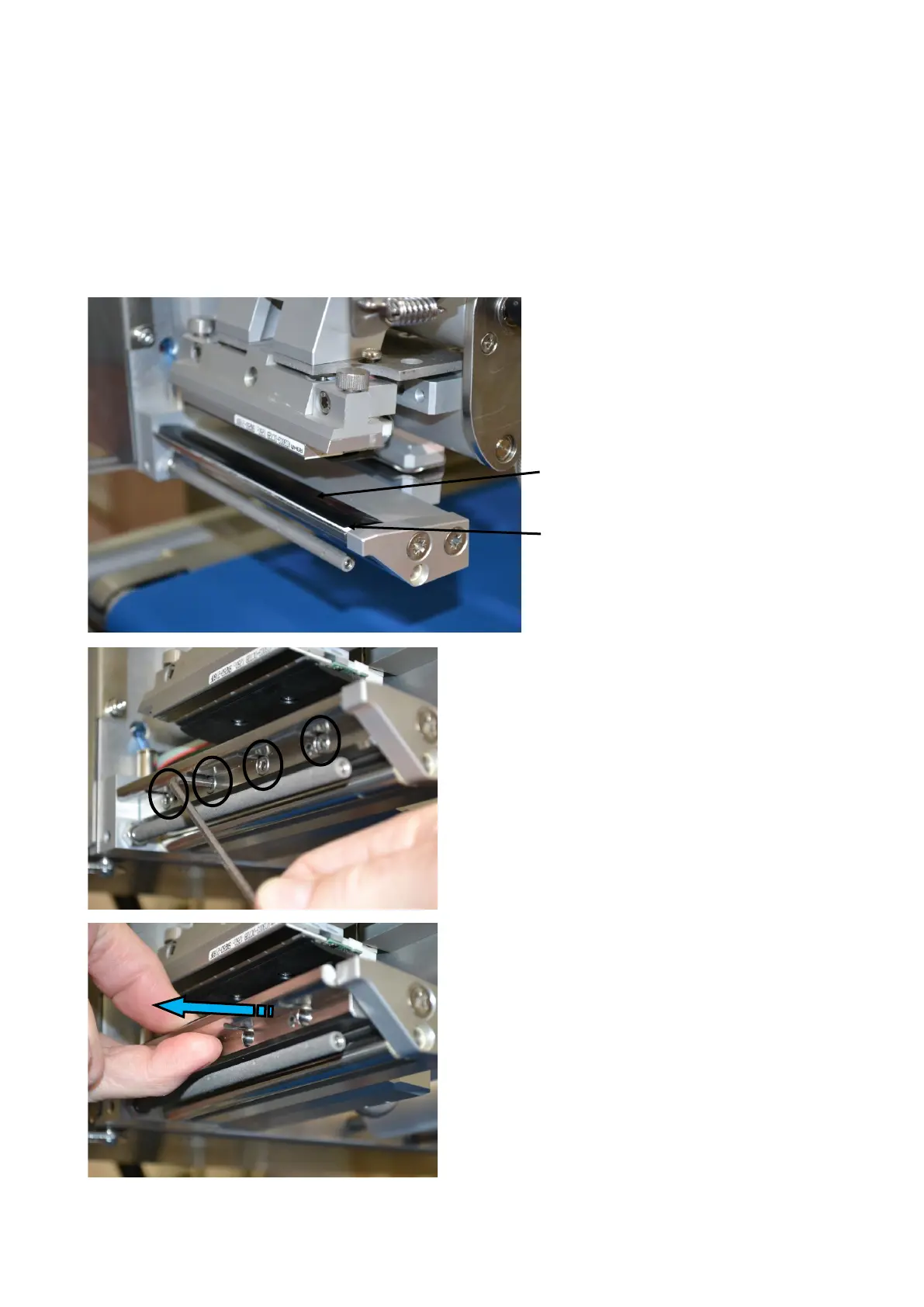

Wear strip
Silicone tube (sits under wear strip)
To remove the wear strip, unscrew the four
screws holding the stripping bar in place
Withdraw the stripping bar from the near edge
bar support
