HI, MI, WI-700 service manual - 4 –servicing
4-49 Issue 9 04/2020
Signature labeller - thermal head horizontal position
Head set up position - wear strip
With the thermal head position set to its default position
(see previous page) the head set up position can be set

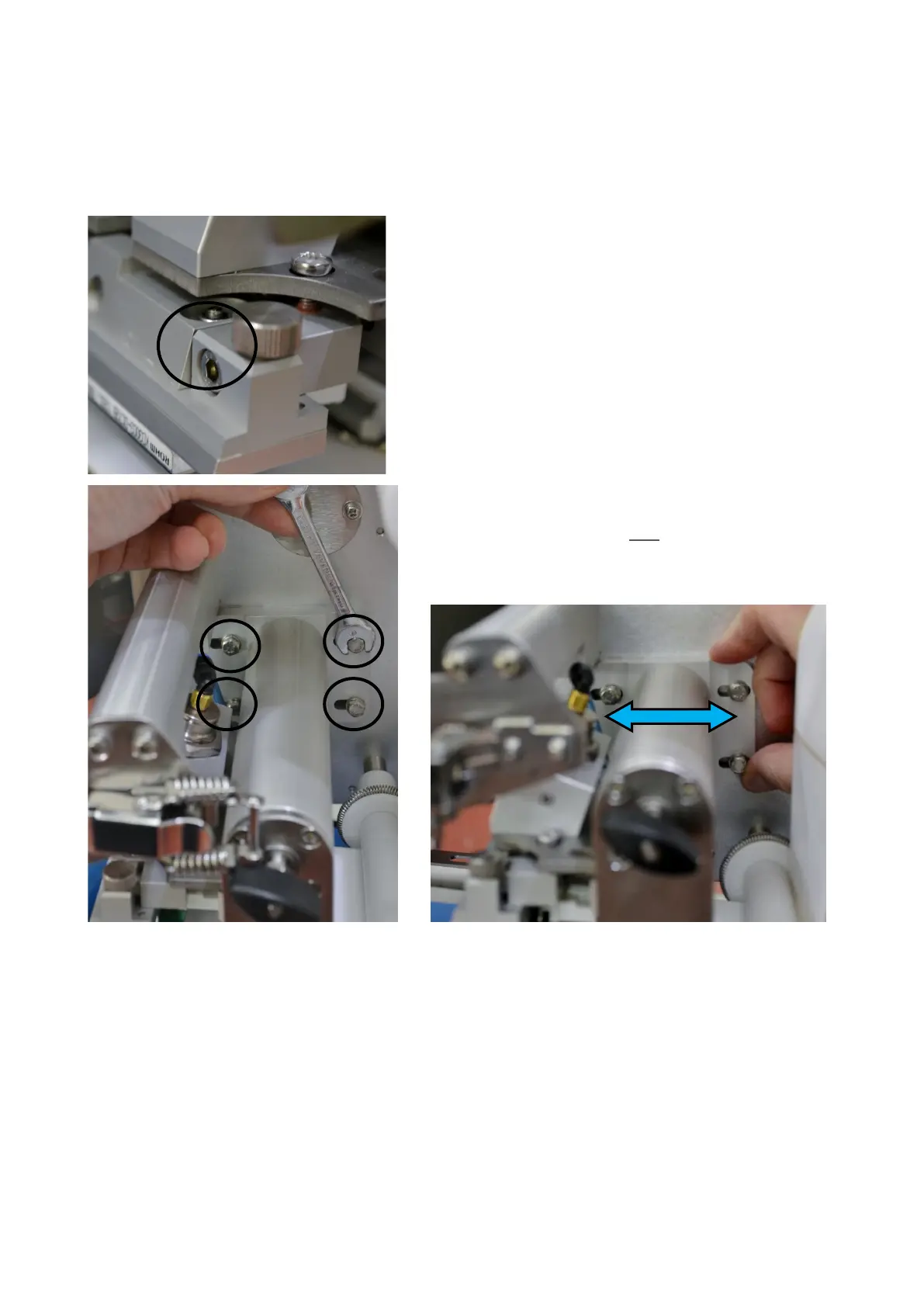

Loosen the four hex head screws holding the mounting
plate to the back plate.
Slide the assembly back / forward to obtain the correct
position of thermal head at stripping bar - see page 51
for examples
The correct position for the mounting plate is
approximately 1mm in from right side of the slot end in
the plate
