HI, MI, WI-700 service manual - 4 –servicing
4-48 Issue 9 04/2020
Signature labeller - thermal head horizontal position
Head set up position - wear strip type & platen roller
The head mounting plate (701-0021) which is fixed to the labeller back plate with four hex head screws
has a default position which then allows for correct fine horizontal adjustment on the two adjuster screws
NOTE: before setting the head mount plate position, the thermal head horizontal position should
be set using the two adjuster screws to its default position - see below

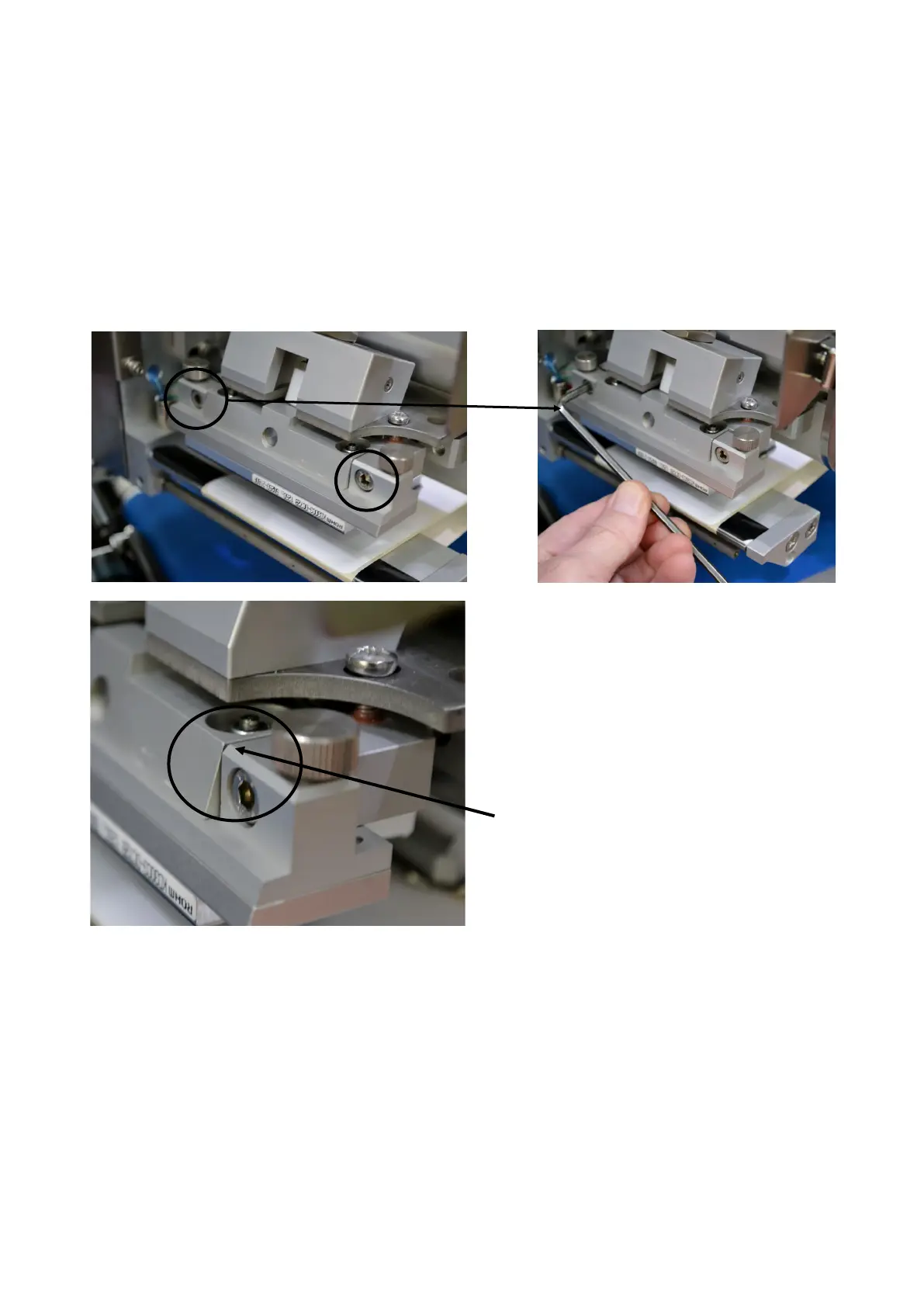

Set the thermal head horizontal position to its
default position by turning in/out the two adjust-
er screws circled above
The default position is when the two top edges
of the two brackets (head adjustment block &
head mounting bracket) are in line, see circled
area left
This should be equal on both adjuster screws
