HI, MI, WI-700 service manual - 4 –servicing
4-51 Issue 9 04/2020
Signature labeller - thermal head horizontal position
Head set up position - continued

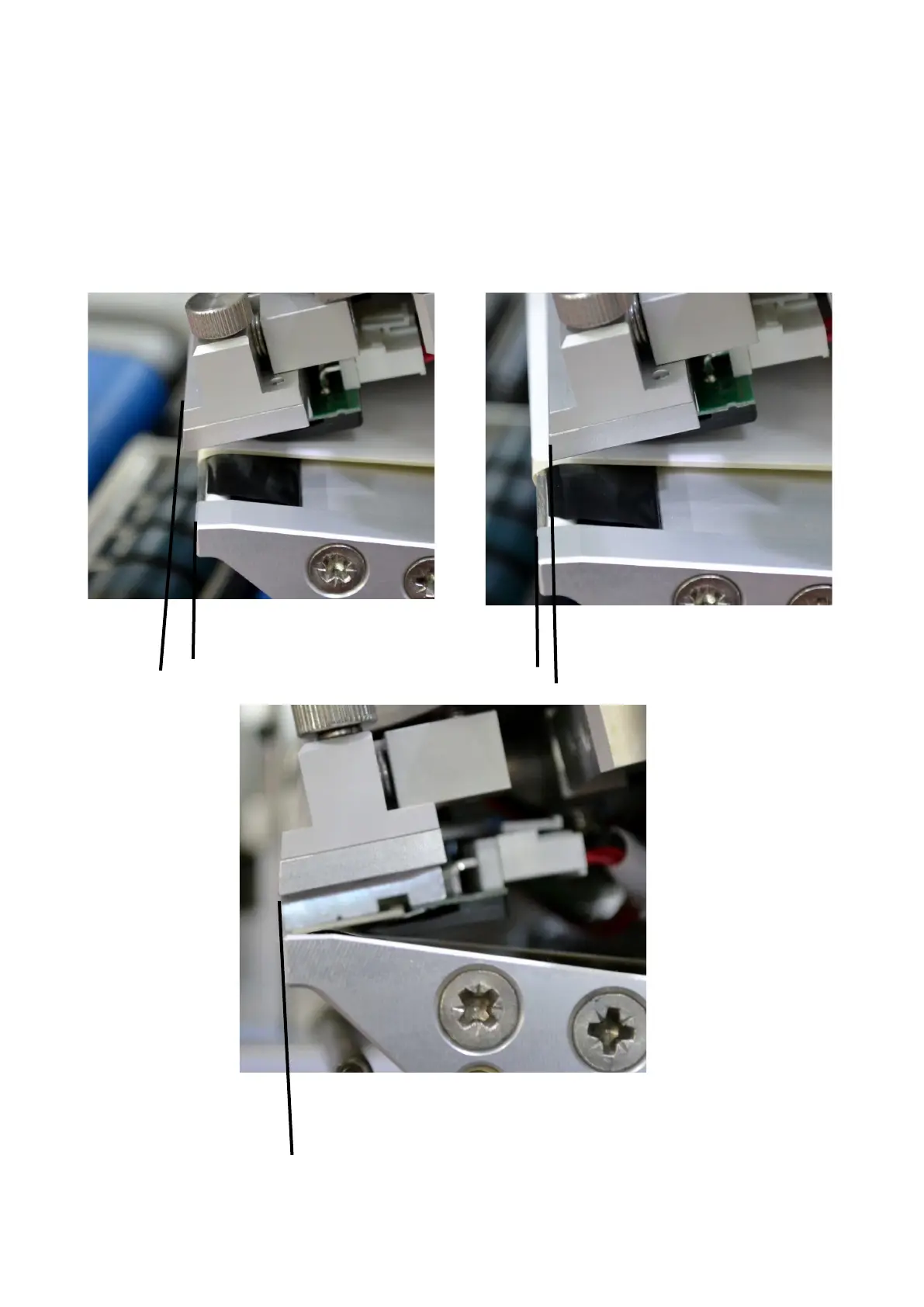

When moving the mounting plate back / forward the position of the thermal head to the stripping bar is set.
The front edge of the thermal head should be in-line with the front edge of the striping bar
Thermal head too far forward
Thermal head too far back
Correct position
