HI, MI, WI-700 service manual - 4 –servicing
4-52 Issue 9 04/2020
Signature labeller - thermal head horizontal position

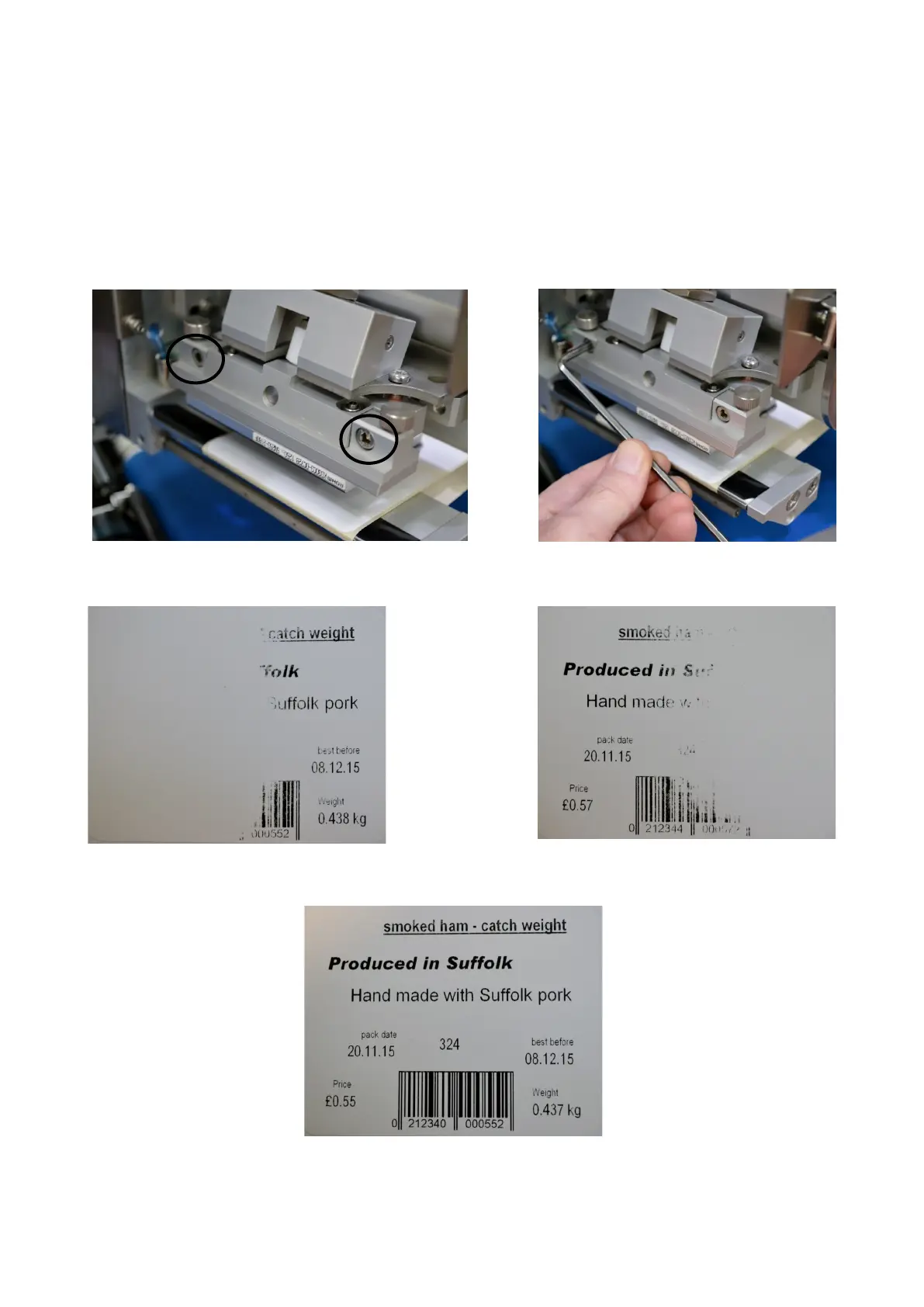

Fine adjustment using adjuster screws
If the head mounting plate had been moved or the print is poor, the two adjuster screws can be adjusted
for a fine adjustment of the horizontal thermal head position.
Turn each adjuster screw to obtain the required print quality
Typical poor print
quality if horizon-
tal head position
is incorrect
Adjust each
screw evenly to
keep print
straight and
consistent across
the label
Adjuster screws set even-
ly and in correct position
To Next Page
