Classic labeller - electronic board
The Classic labeller uses the same electronic board as the Signature labeller but does not use the sensor
I/F board.

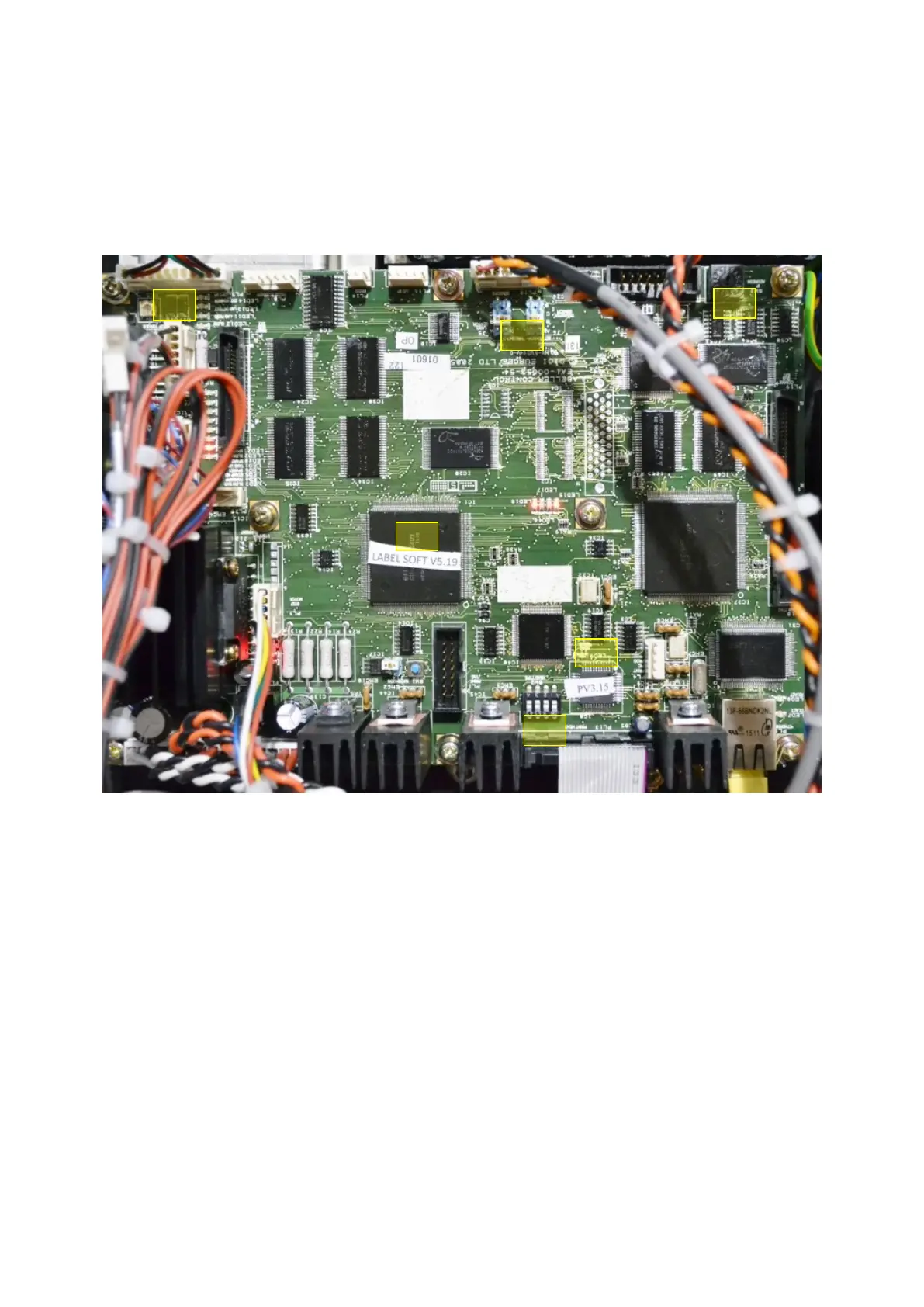

The orientation of the this board in the Classic labeller is as shown below
1
2
3a
4
5
6
Refer to previous page for description of each numbered area
