HI, MI, WI-700 service manual - 4 –servicing
4-91 Issue 9 04/2020

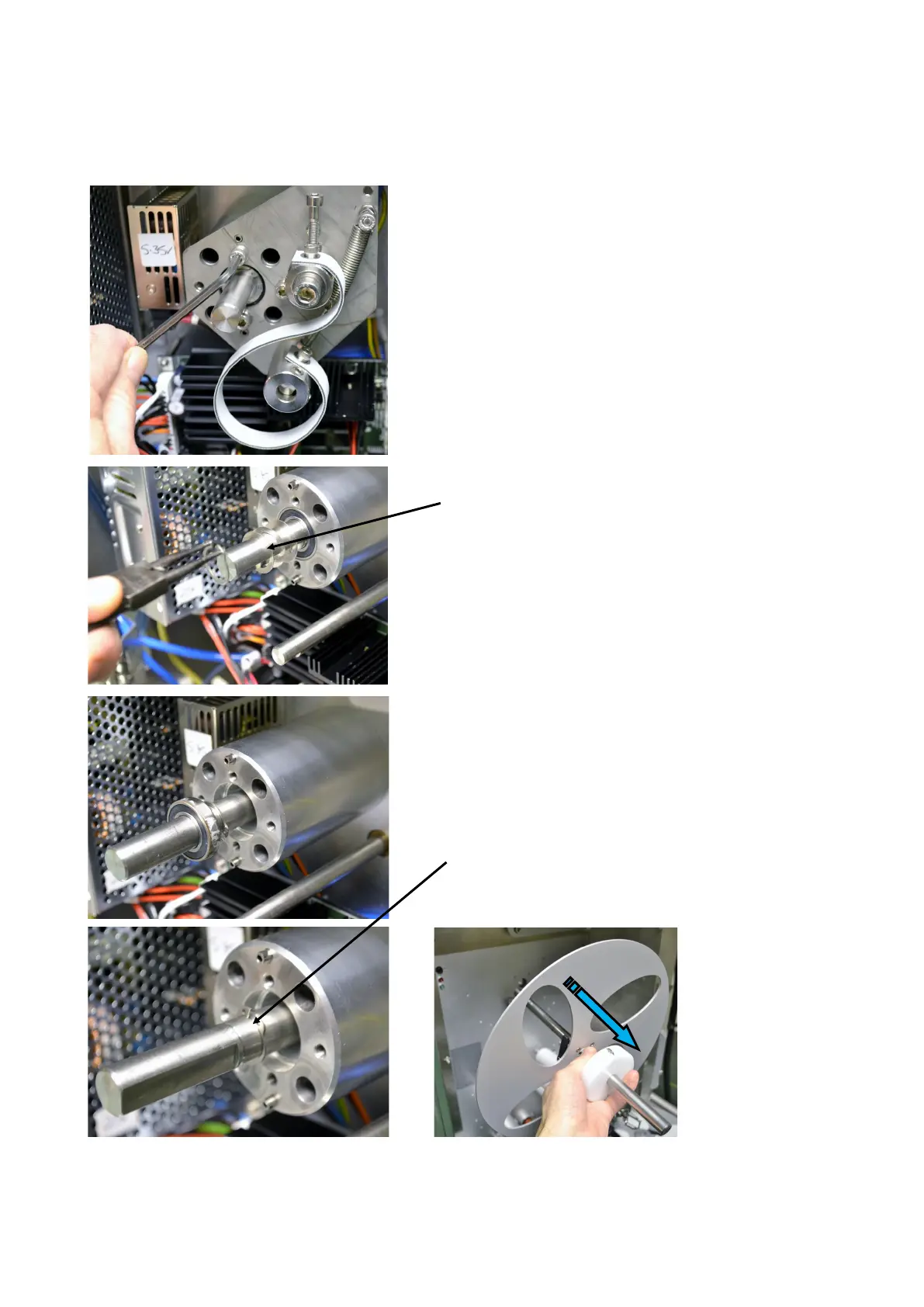

Change label reel to centralizer type - continued
Remove the four screws holding the brake mounting
plate to the reel boss and remove the back plate from
the boss
Remove the outer circlip and the shim
Remove the outer bearing
Note: this is normally held in place with Loctite 222
which is a low strength locking compound therefore
the bearing should push out easily if a sharp push on
the shaft at the front of the labeller is applied to push
the bearing out of the boss
Remove inner circlip
The reel and its
shaft can now be
remove from the
front of the labeller
