HI, MI, WI-700 service manual - 4 –servicing
4-92 Issue 9 04/2020
Change label reel to centralizer type—continued

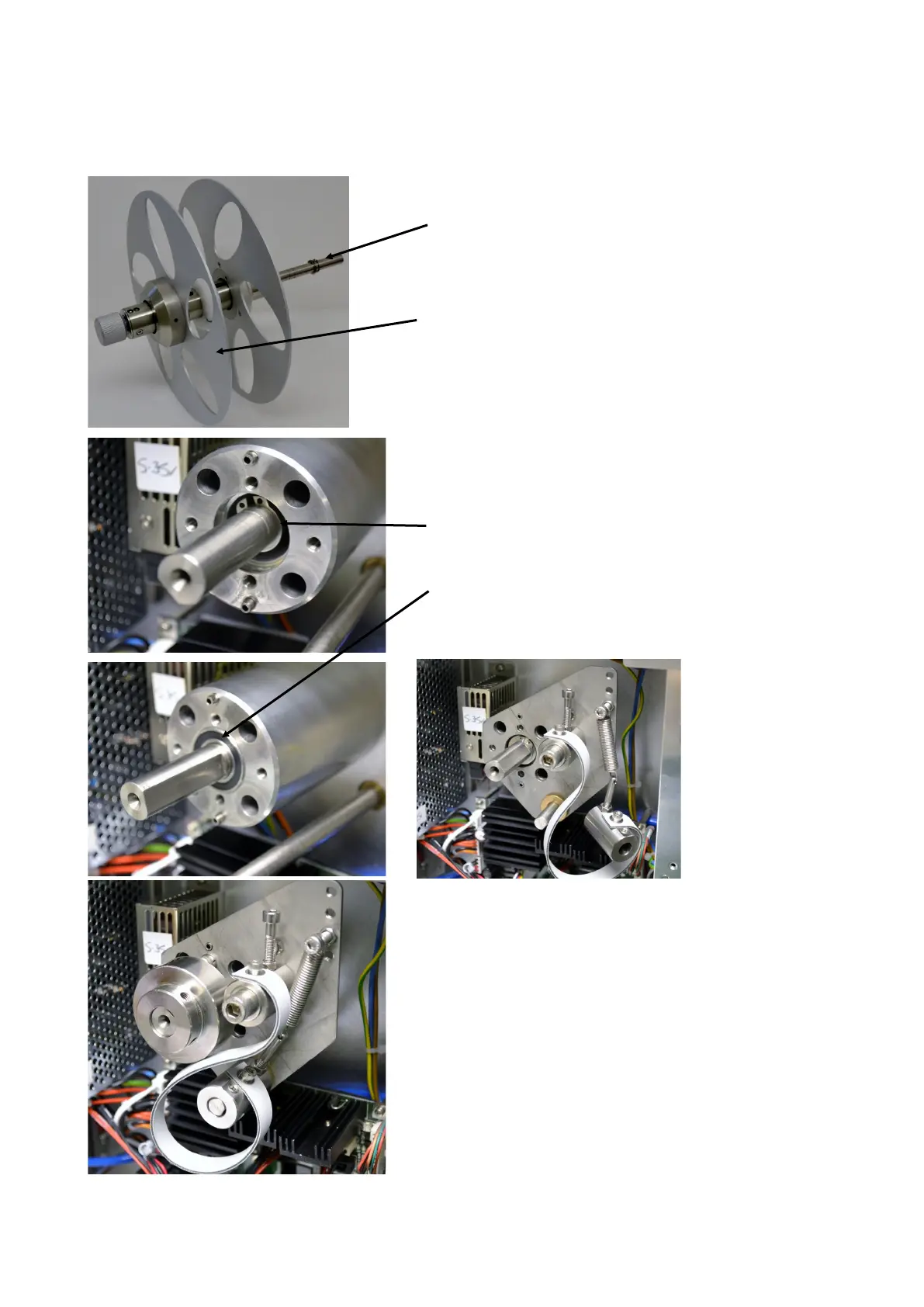

Remove the circlips and shims from the centralizer shaft
end
Un-clip & remove outer reel if required
From the front of the labeller, slide the centralizer shaft in
the reel boss.
At the rear of the labeller, fit the inner circlip
Clean bearing surface of any old locking compound
Re-fit the bearing. To secure in place use Loctite 222
Re-fit brake boss and tighten set screws.
Re-tighten set screws in brake pivot boss.
Use low strength locking compound such as Loctite 222
on set screws
Note: the brake arm at the front of the labeller may need
to be loosened from the shaft to re-align front and rear
parts
Re-fit belt onto brake boss
Fit shim and outer
circlip.
Re-fit brake mount-
ing plate
To Next Page
