HI, MI, WI-700 service manual - 4 –servicing
4-120 Issue 9 04/2020
Labeller - Classic type - Thermal head change
If the thermal head is to be disconnected and removed, the electrical power
to the labeller must be turned off.

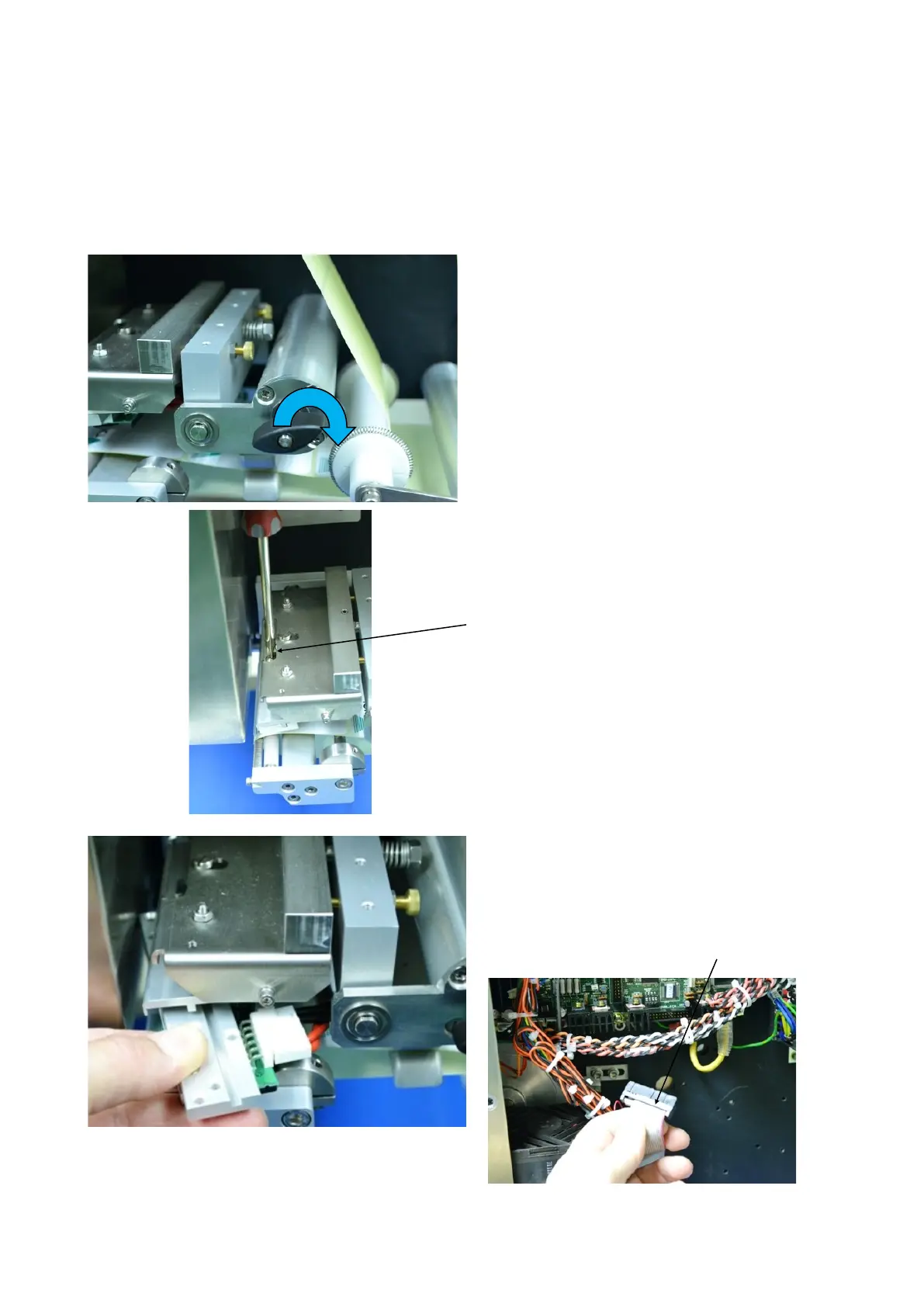

Raise the thermal head to its upper position by
turning the black hand lever.
Using a cross head screw driver, un-screw the
single screw holding the thermal head and its brack-
et in place.
Carefully withdraw the thermal head from its
mounting position.
Note: the two cables connected to the thermal head
may need to be disconnected at the rear of the
labeller (on the labeller board) to allow enough slack
cable for the head to be removed
