Network commissioning and diagnostics Commissioning pushbutton and associate LED
XBee/XBee-PRO ZigBee RF Modules User Guide 87
Broadcast node identification transmission
Associate
(D5 = 1
Device not joined)

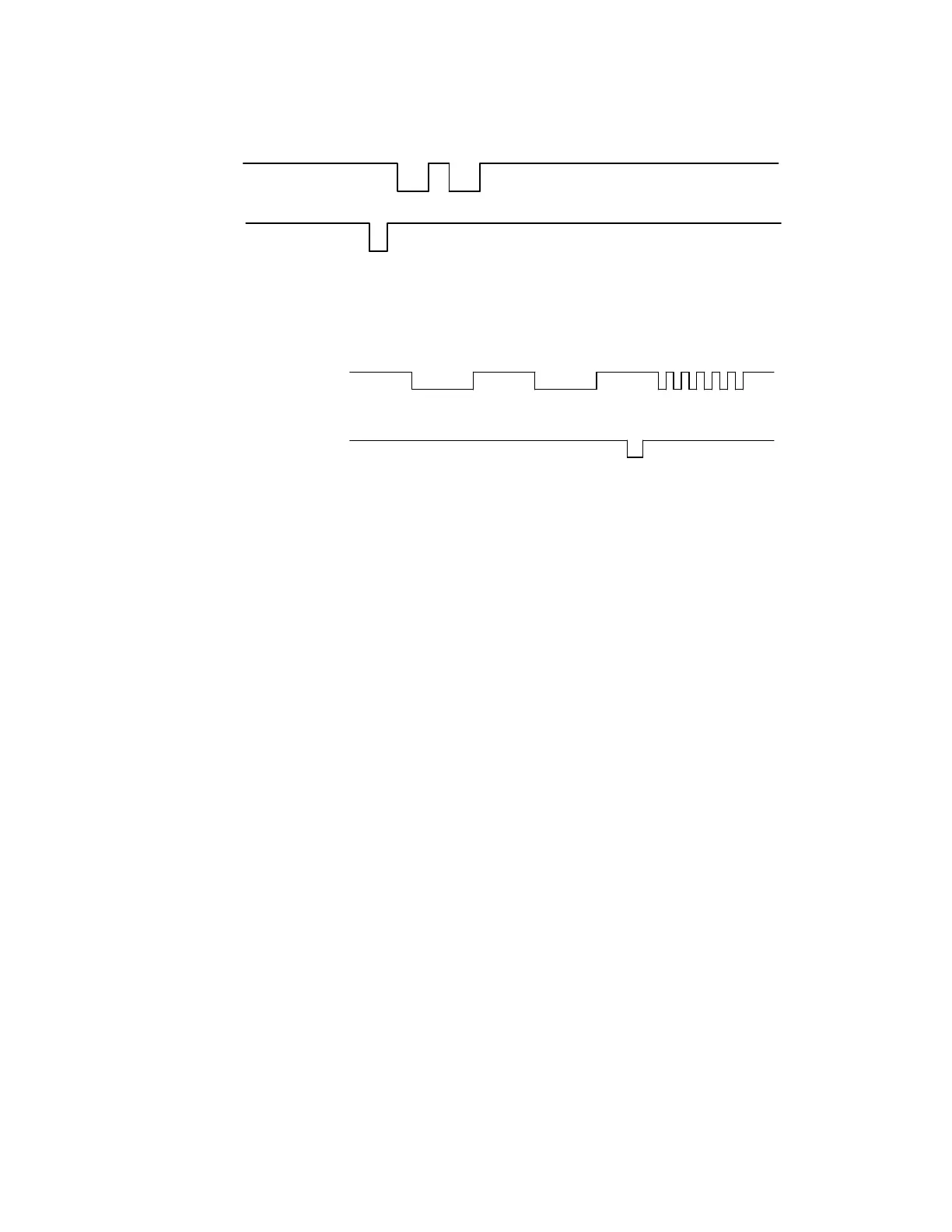

A single commissioning button press when the device has not joined a network that
causes the associate pin to blink to indicate the AI Code where: AI = # blinks + 0x20.
In this example, AI = 0x22.
AD0/DIO0
Associate Pin
(D5 = 1)
AD0/DIO0 Pin
(Remote Device)
A single button press on a remote device causes a broadcast node identification transmission
to be sent. All devices that receive this transmission blink their associate pin rapidly for one
second if the associate LED functionality is enabled. (D5 = 1)
