DigiDesign C 24 - Stereo Studio Connections

Chapter 5: Connecting Your Studio 27
Stereo Studio Connections

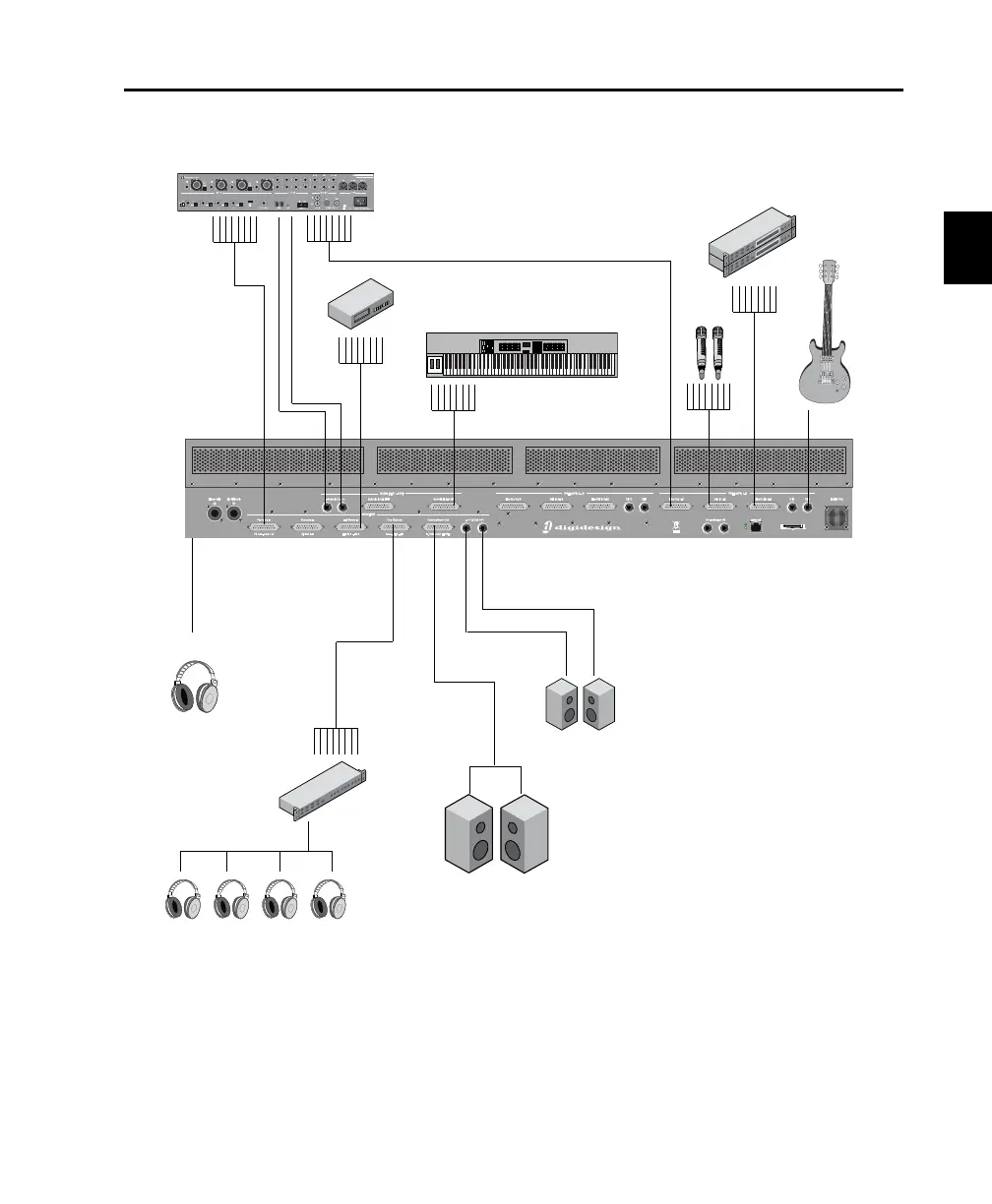

Example studio setup with stereo monitoring
Pro Tools In
Headphone Out
DIMic In Line In
Preamp Line Out
C|24
Line Submixer In
Ext Stereo In
Monitor Alt Out
Monitor
to Pro Tools
Cue Out
Main Out
Ch 1,3
003
Rack
L
R
Pro Tools
Stereo Out 1-2
Cue Out 1-2
Submixer
Out
Alternate speakers
Main speakers
Cue system
