DigiDesign C 24 - Surround Studio Connections

C|24 Guide30
Surround Studio Connections
5.1 Surround Setup

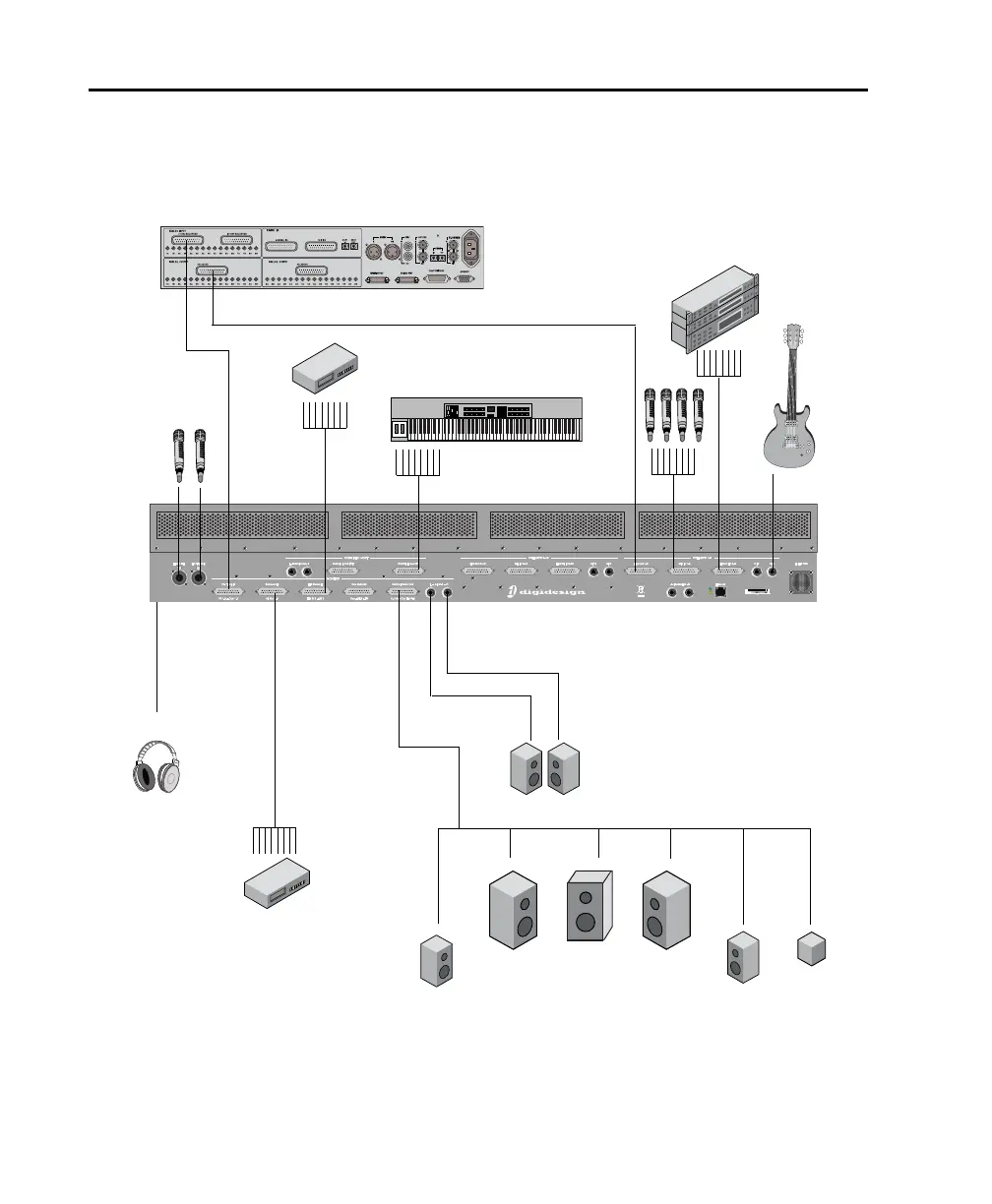

Example studio setup with 5.1 surround monitoring
Pro Tools In
Headphone Out
DIMic In Line In
Preamp Line Out
C|24
192 I/O
Line Submixer In
Ext Stereo In
Monitor Alt Out
Monitor
LCR
Ls Rs LFE
to Pro Tools
Ext Talkback
& Listen Mics
Main Out
Ch 1-6
123456
Alt
Surround In
Pro Tools
Ch 1-6 Out
Cue Out 1-2
Alternate speakers
