Appendix A: C|24 Connector Pinouts 103
Appendix A: C|24 Connector Pinouts

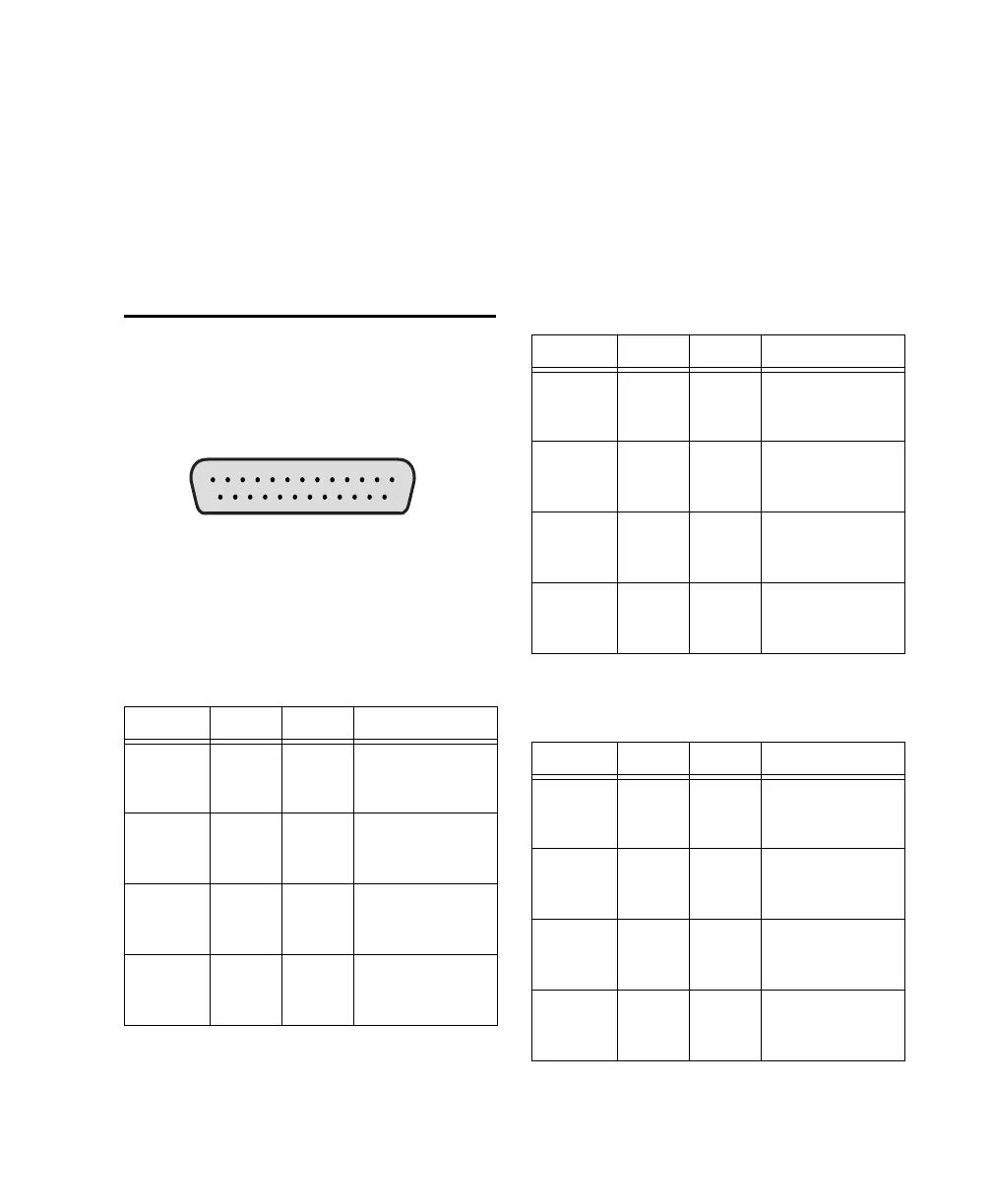

Female DB-25 Connectors
All C|24 DB-25 connector pinouts conform to
the pin numbering scheme shown below.
Submixer 1–8 ST
Submix In 1–4 (ST)
Submix In 5–8 (ST)
DB-25 Connector (user view)
Submixer Stereo Inputs 1–4
Channel Hot (+) Cold (–) Ground (shield)
1
Submixer
In 1 Left
24 12 25
2
Submixer
In 1 Right
10 23 11
3
Submixer
In 2 Left
21 9 22
4
Submixer
In 2 Right
7208
113
1425
5
Submixer
In 3 Left
18 6 19
6
Submixer
In 3 Right
4175
7
Submixer
In 4 Left
15 3 16
8
Submixer
In 4 Right
1142
Submixer Stereo Inputs 5–8
Channel Hot (+) Cold (–) Ground (shield)
1
Submixer
In 5 Left
24 12 25
2
Submixer
In 5 Right
10 23 11
3
Submixer
In 6 Left
21 9 22
4
Submixer
In 6 Right
7208
Submixer Stereo Inputs 1–4
Channel Hot (+) Cold (–) Ground (shield)
