PCX924 v2 ANALOG CABLE DIAGRAM

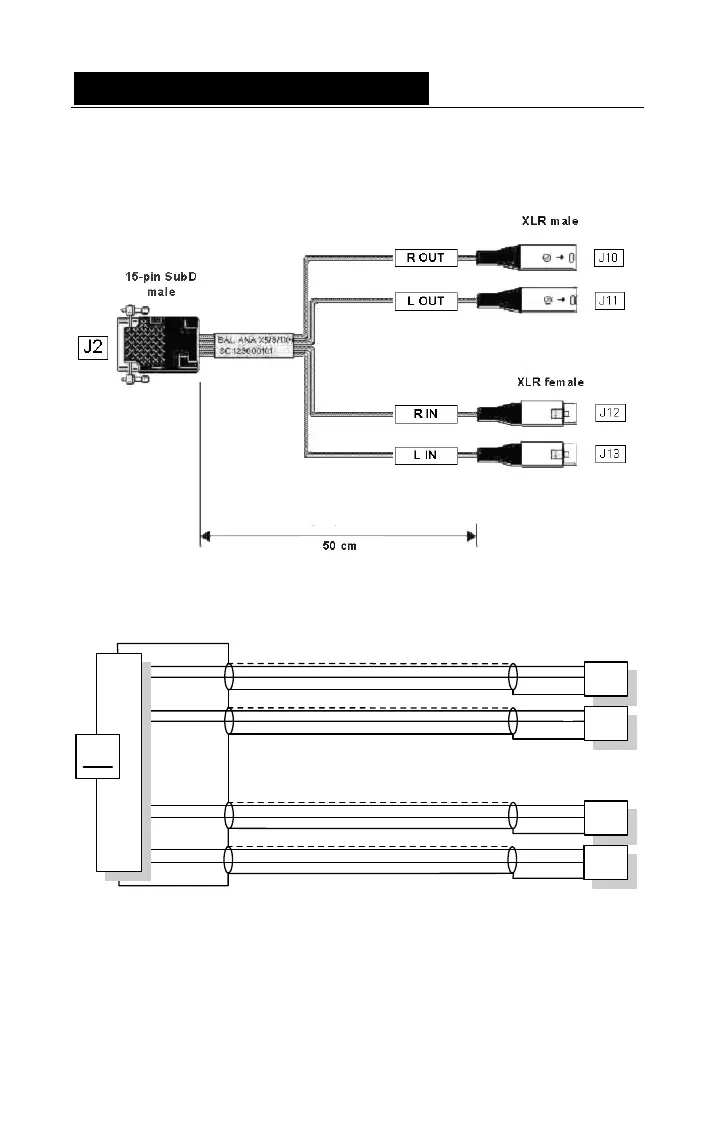

Schematic diagram of the cable delivered by Digigram*:
Wiring Diagram – Analog Cable PCX924 v2
J13
female
+
-
3
2
1
Left IN
J12
female
+
-
3
2
1
Right IN
J11
male
+
-
3
2
1
Left OUT
J10
male
+
-
3
2
1
Right OUT
XLR
1
9
10
3
13
6
7
15
J2
Signal number
22
