58 TMR3610 Operators Manual D4023-EN

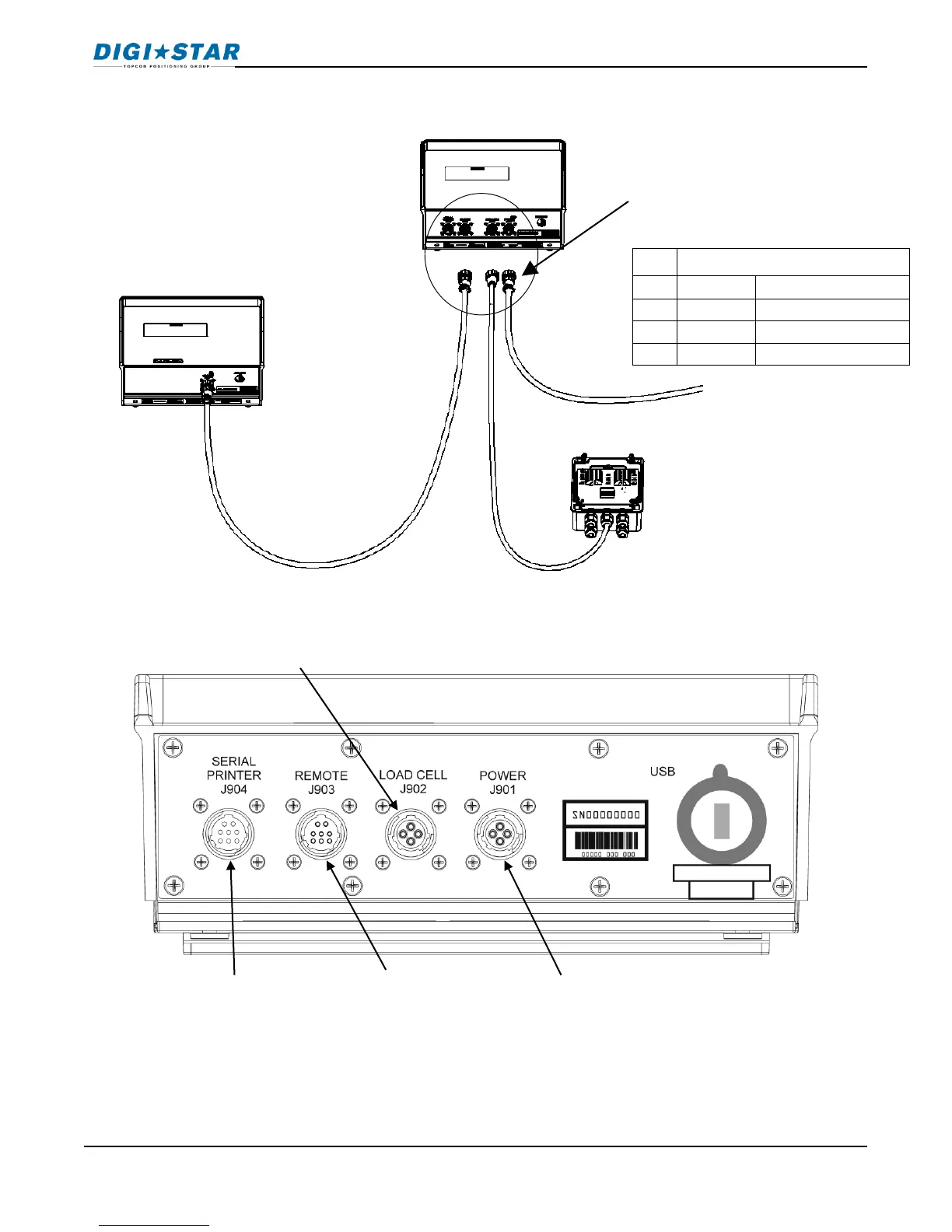

Indicator Connection Diagram
Pin
To 12VDC Power Supply
1
Red
+Terminal
2
Black
-Terminal
3
Orange
Alarm Out
4
Blue
Remote Input
Remote
Indicator
(Optional)
See J-Box
Connections
Scale Indicator
Power Supply
Digital Input/ Output
Connection
(Optional)
Remote Indicator
Connection
(Optional)
Power Cord
Connection
J-Box Connection
Installation
