Digistar TMR3610 - Connecting Load Cells in Junction Box; Load Cell Direction

D4023-EN TMR3610 Operators Manual 59
Bottom Panel Cable Connections
16.3 Connecting Load Cells in Junction Box
16.4 Load Cell Direction
Observe direction of arrow when installing load cell.
Wire Color Key
Color
Description
1
White
Signal +
2
Green
Signal -
3
Red
Excitation +
4
Black
Excitation -
5
Shield
Shield

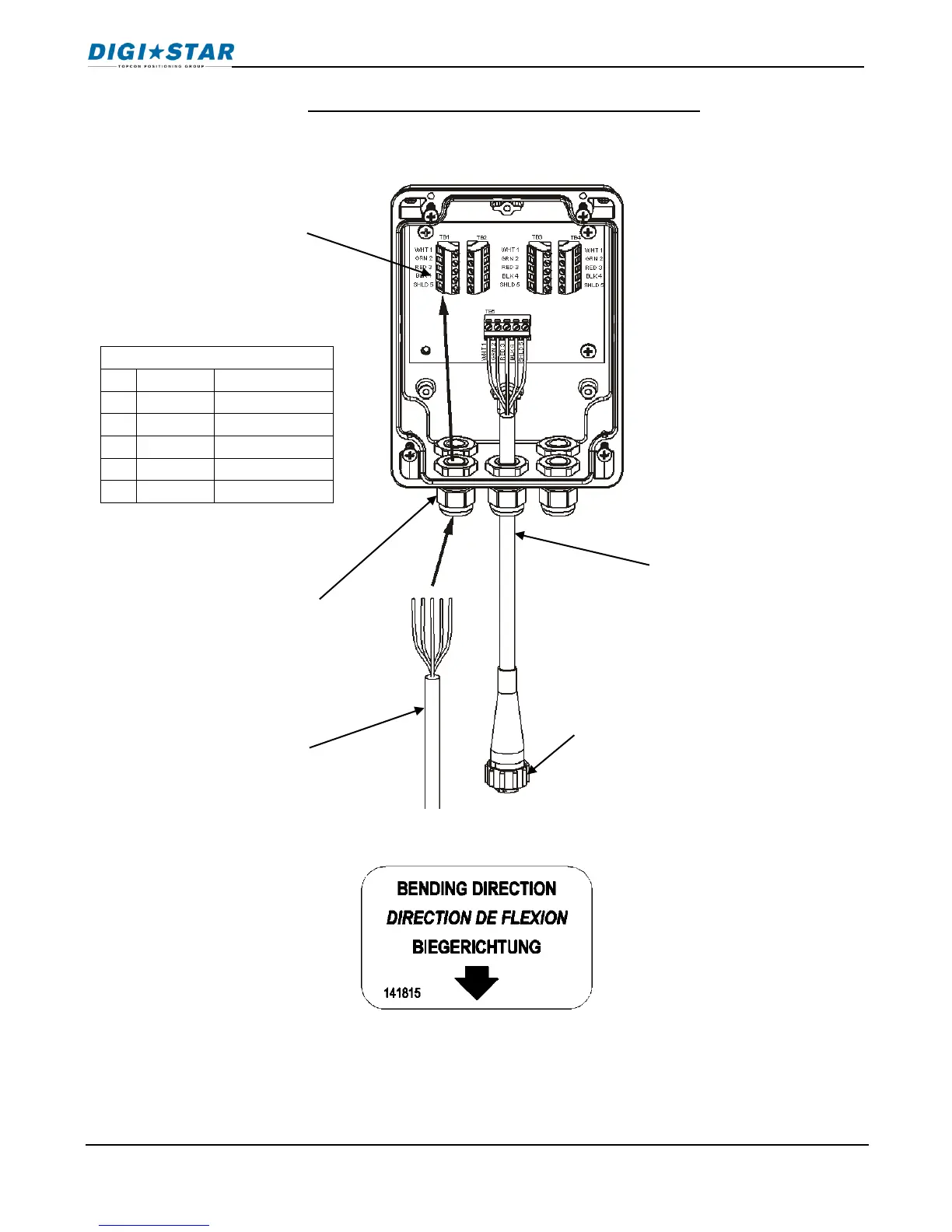

Connect load
cell wires to
terminal blocks.
J-Box Illustrated for 4 Load
Cells to be installed.
J-Box
Cable
Tighten
Nuts
Load Cell
Cable
Connect to Indicator
Bottom Panel
Installation
