DigiTech RP-7 VALVE User Manual

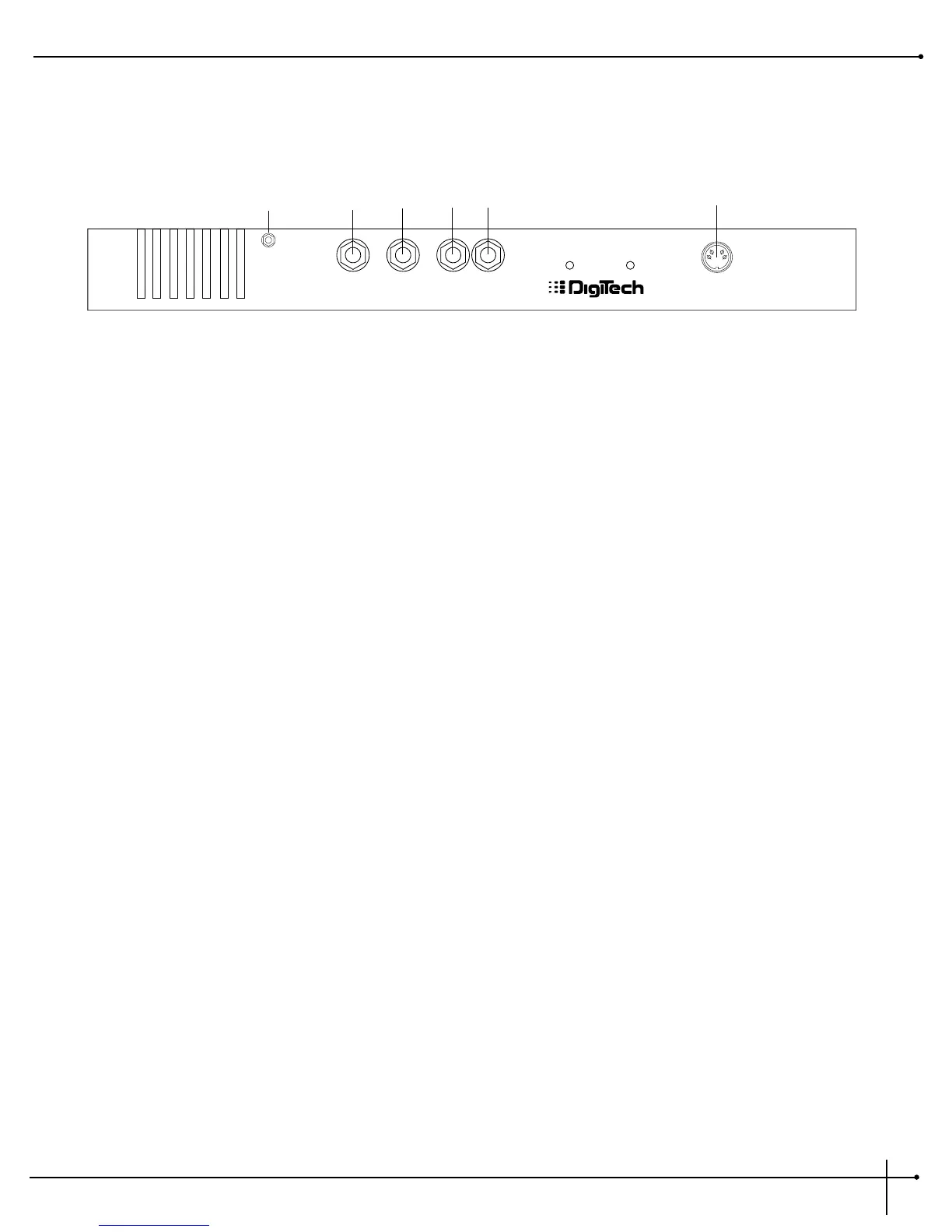

The Rear Panel
1) Jam-Along Jack- This is the Jam-Along Jack connection of the RP-7 Valve. Connect output of CD or Cassette player here. This is also the
insert point for music that is to be used in the Lear-A-Lick mode.
2) Input - This is the RP-7 Valve’s audio input. Plug your guitar in here.
3) Headphone Output - 1/4” stereo plug for headphones. The headphone level is controlled by the main output
level knob.
4) Left/Mono Main Output - This is the RP-7 Valve’s left main audio output. This output must be used if a mono effect
is desired.
5) Right Main Output - This is the RP-7 Valve’s right main audio output. Use both left and right main outputs to take
advantage of stereo effects.
6) AC Line Input - This is the AC adapter receptacle. Use only the included PS 0912 power supply.
INPUT
JAM-ALONG
RIGHT
OUTPUT
LEFT/MONO
OUTPUT
HEADPHONES
POWER
9VAC 1.33A
23
4
5
6
1
RP-7 Valve
User Guide
Section -1 Introduction
5
