8.7 Spare Parts

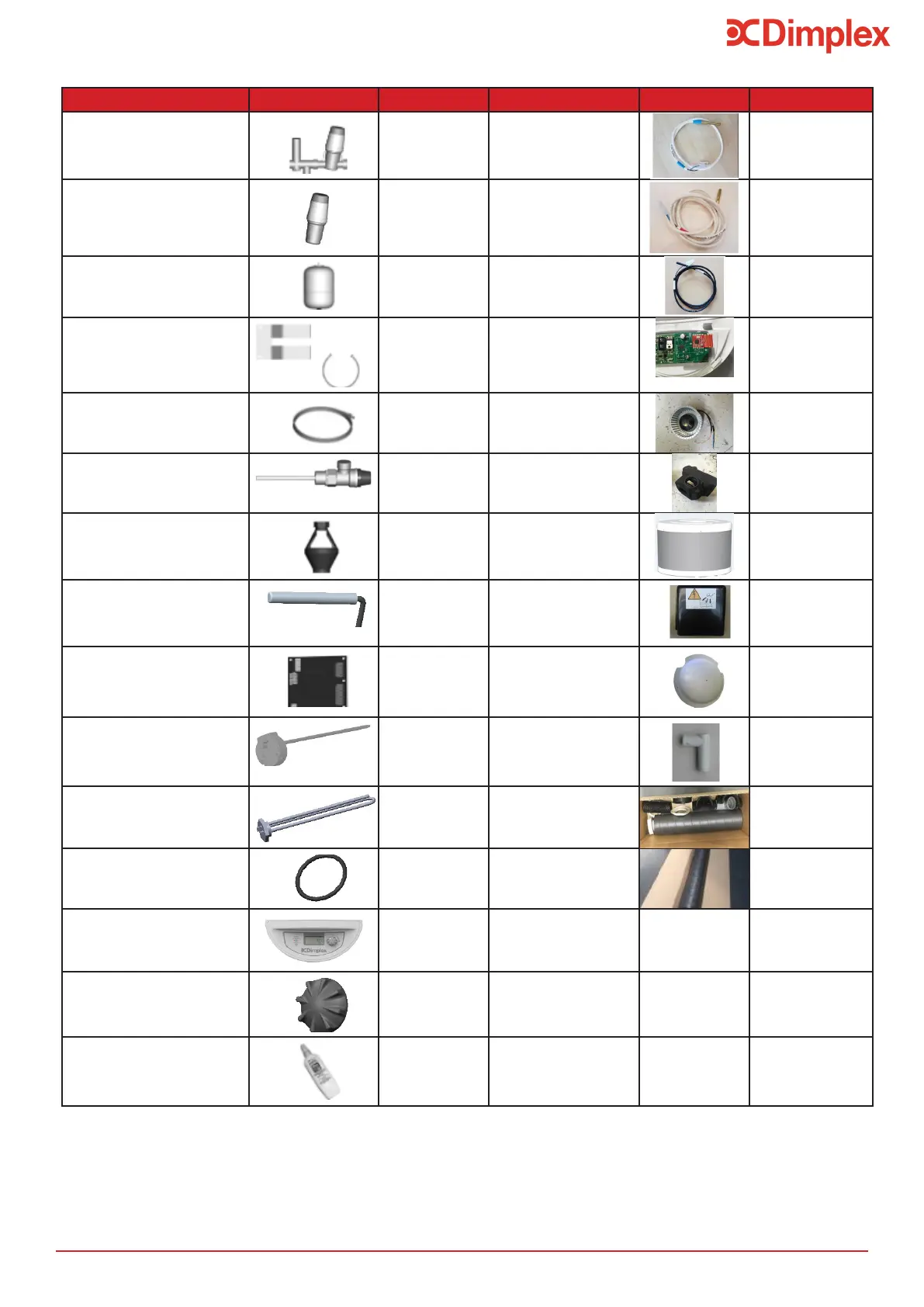

Table 6: Edel Air Source Water Heater Spare Part
Description Image Part No Description Image Part No
22mmx3barInletcon-
trol group
X-R00041-1 SensorIg460 X-B1244576
InletcontrolgroupPRV
cartridge
X-R00009-1 SensorIg1200 X-B1244575
18 litre expansion vessel X-R00045-2 Defrosting sens kit X-B4993072
Expansionvesselxing
kit
X-R00094-2 RF module 500000710
DN16 3/4” BSP x 1000
expipe
X-R00095-1 Fan 140 500001242
1/2” BSP T&P valve X-R00020-1 Fan enclosure 500001270
15 x 22 straight PE
tundish
X-R00047-1 Insulatedhood 500001243
Temp. sensor - 25°C - X-B1243950 Electrical lid X-B4992027
C3S PCB Controller X-B1244096 Heating cover ele-
ment
500001244
70-84°C Thermostat X-1239160 Condensate T pipe 500001245
1200W electric heating
element
X-1244562 EDL170VentKit 500001044
Electric heating seal X-1657452 EDL170 Extension
VentKit
500001493
PCB +Display +PGM
+Cable
X-4592570
Display Screen Dial X-1758866
Thread sealant X-R00836-1
