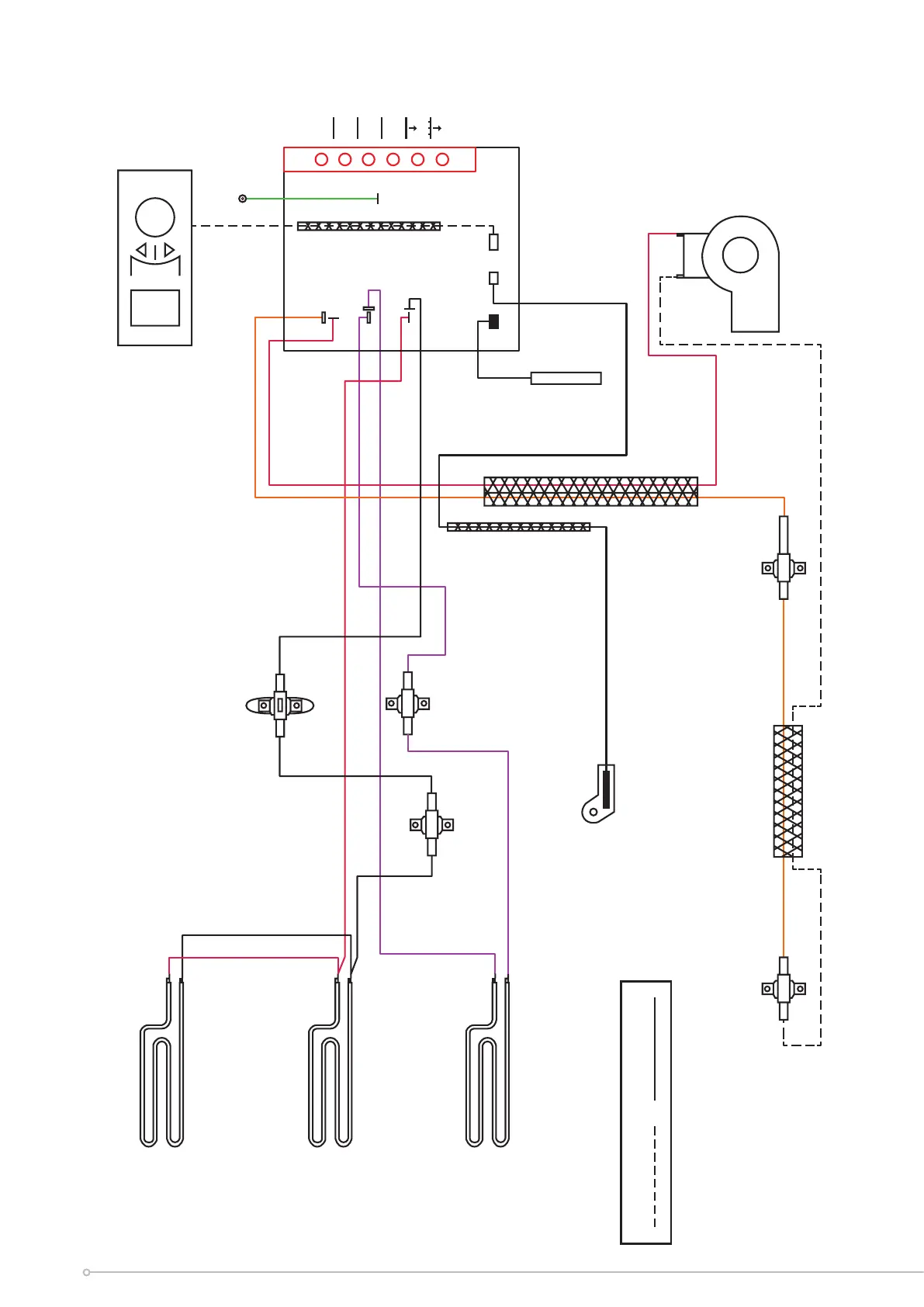

Schéma de circuit - Série XLE A
INDIQUEZ LE FIL BLANC INDIQUEZ LE FIL NOIR
REDUCTEUR
ETAT
GAUCHE
(130° BLEU)
REDUCTEUR
ETAT DROITE
(130° BLEU)
EMPLACEMENT
THERMOCOUPLE
AJUSTE AU
MODULE
PRINCIPAL DE
CONTRÔLEUR
LIMITE
D'AUGMENTATION
ETAT (120° VERT)
DISJONCTEUR
MANUELLE (140°)
INTERFACE UTILISATEUR
TERRE
TERRE
TERRE
NEUTRE (HEURES PLEINES)
DIRECT (HEURES PLEINES)
DIRECT (HEURES CREUSES)
NEUTRE (HEURES CREUSES)
VENTILATEUR
PCB
LIMITE TEMP
(125° NOIR)
NOYAU THERMOCOUPLE
MONTÉ SUR LE CÔTÉ
INTÉRIEUR (OU DANS
BOITIER PLASTIQUE)
ÉLÉMENTS DE STOCKAGE
108
