Warning: Before obtaining access to terminals, all supply circuits must
be disconnected.

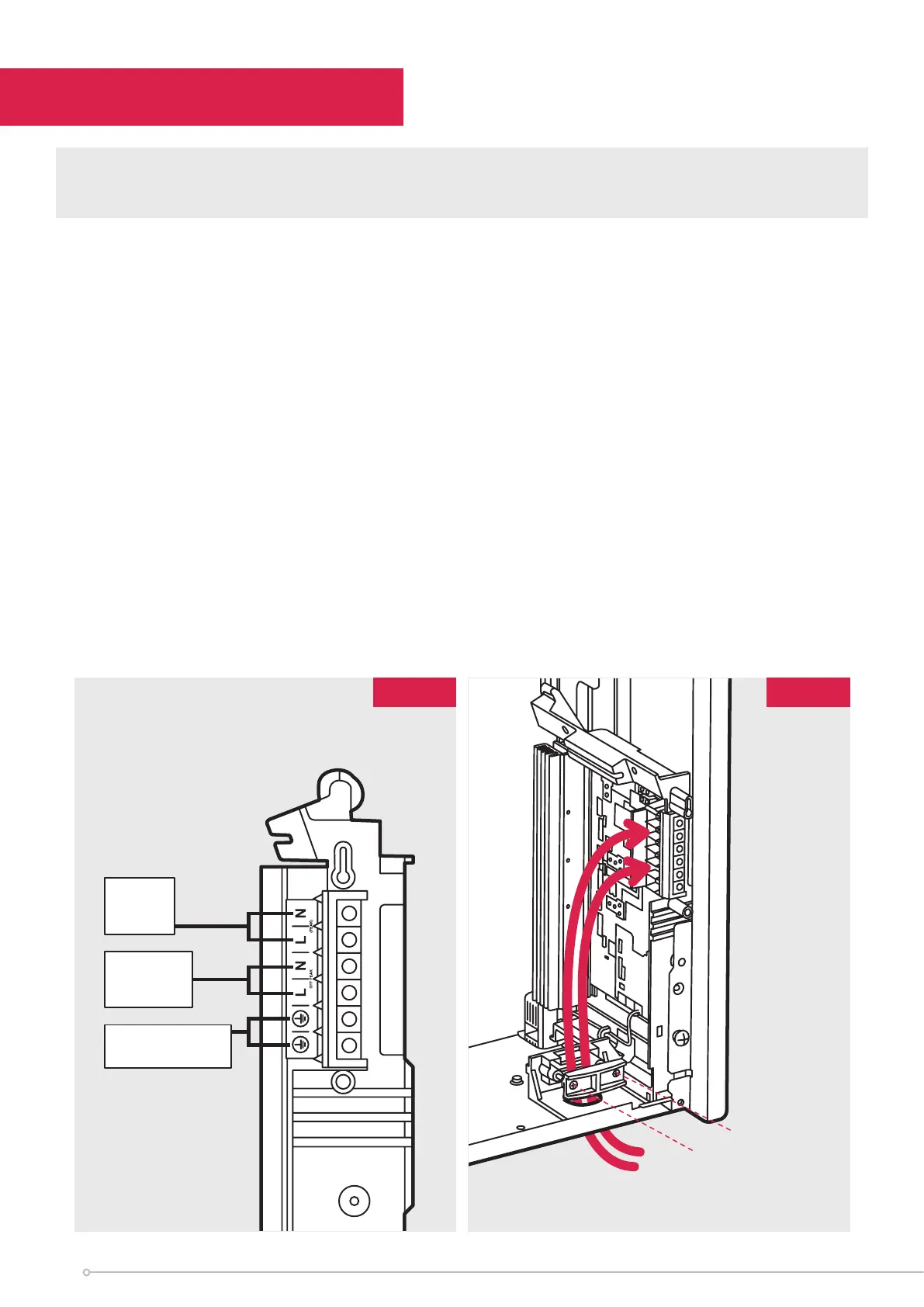

7. The heater leaves the factory configured to operate with two mains supplies, a 24
hour peak supply and an o peak switched supply. (Fig. 7)
Not suitable for use on single supply.
Storage / Fan circuit
Fan Circuit = PEAK L
Storage Circuit = OFF-PEAK L
Fan Circuit = PEAK N
Storage Circuit = OFF-PEAK N
The earth wire should be connected into the earth terminal block marked E
WARNING: Terminal block maximum torque 0.5 Nm
Neutral
Live
(O-Peak)
Neutral
Live
(Peak)
Earth
(Both Supplies)
Switched Supply
Terminal Block
Mains
Cable
Tighten Screws
Electrical Connections
Fig. 7 Fig. 8
