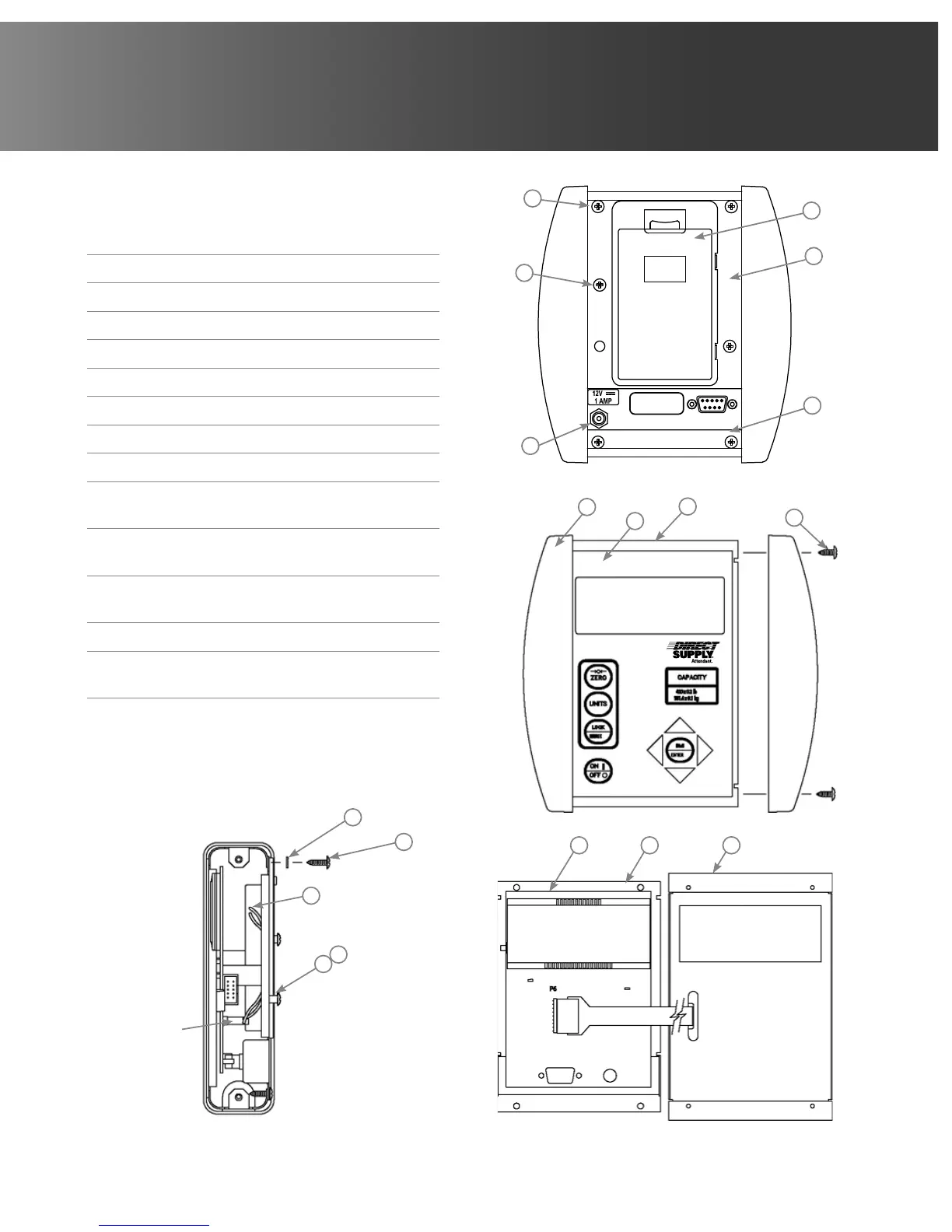

Parts Identification
5
1
4
9
Item Qty Description
1 1 Keypad
2 1 PC Board
3 1 Rear Panel
4 1 Front Panel
5 2 End Cap
6 1 Battery Holder
7 2 Mounting Spear
8 4 Washer, #6 Lock Int. Tooth
9 4
Screw, #6X.375 TH
Sheet Metal (Black)
10 4
Screw, #6X.50 TH
Sheet Metal (White)
11 2
Screw, #6-32X.312
THMS W/THD-Lock Patch
12 1 Serial Tag
13 1
Optional AC Adapter
100-240VAC/12VDC @ 1 AMP
6
3
10
11
12
13
8
10
6
7
11
CONNECT TO P3
2 3 4
