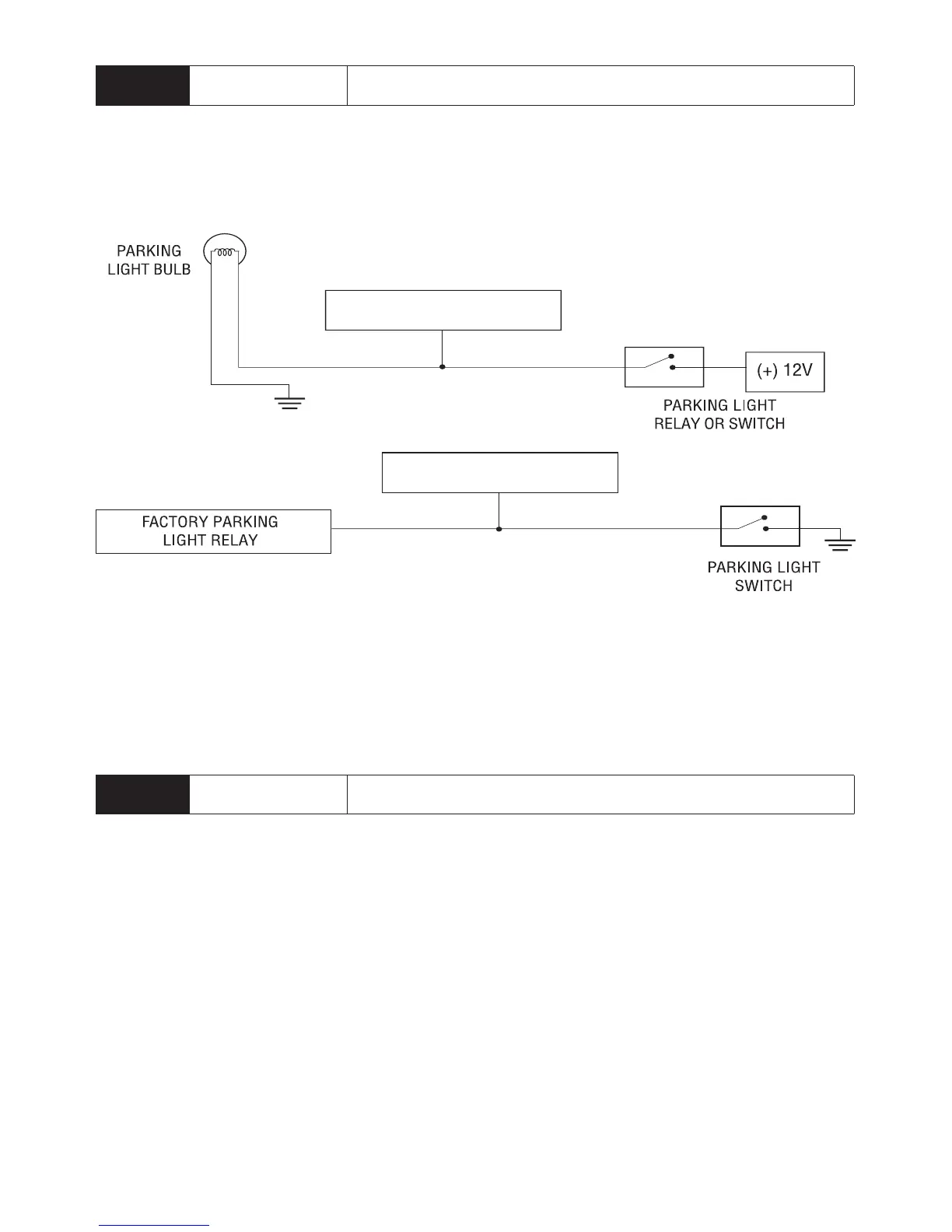

WHITE PARKING LIGHT OUTPUT

This wire should be connected to the parking light wire in the vehicle. See Set-

ting the light ﬂash polarity section of this guide for polarity settings.

(+) Positive Light Flash Output

(-) Negative Light Flash Output

WHITE H1/11

(+) LIGHT FLASH OUTPUT

WHITE H1/11

(-) LIGHT FLASH OUTPUT

Note: For parking light circuits that draw 10-amps or more, the internal jumper

must be switched to a (-) light ﬂash output. (See Setting the light ﬂash polarity

section of this guide.) P/N 8617 or a standard automotive SPDT relay must be

used on the H1/11 light ﬂash output harness wire.

H1/12

ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT

This wire supplies a (-)500 mA ground as long as the system is locked and when

the remote start is activated. (This feature can be turned off by programming the

anti-grind option Off). This output ceases as soon as the system is unlocked. The

GWA can be hooked up to an optional starter kill/anti-grind relay control mod-

ule, a voice module or any accessory that requires a ground when armed.

Note: The one time bypass feature does not disable function.
