Bypassing Sensor Inputs
There are times when you need to temporarily bypass all sensor inputs
to the unit, such as during remote start. Anytime an auxiliary channel
output is used, all inputs are bypassed for five seconds. During the
five second bypass period, ground can be supplied to the Blue Instant
Trigger Input wire of the primary 12-pin harness without triggering the

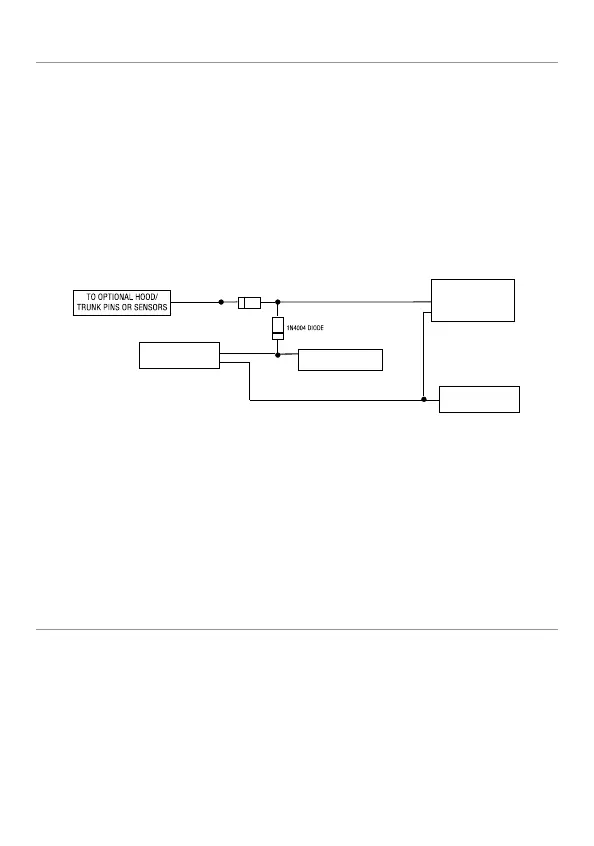

unit. This can be done using the status and ignition output of a Directed
remote engine starting unit, as described in the following diagram:
Alarm System
Status/ GWR (Ground While
Running) from remote start
Yellow (+) Ignition Output
from Directed Remote Start
Yellow (+)
Ignition Input
12-pin Harness
Blue Instant Trigger Input
Zone 1, 12-pin Harness
Remote Start Unit
Starter Disable
Relay
When the five second bypass period ends, if the unit senses ground
on the Blue Instant Trigger Input wire of the primary 12-pin harness, all
trigger inputs except the door trigger inputs remain bypassed until five
seconds after ground is removed from the Blue wire. The ignition input
needs to be bypassed during remote start also.
System Features Learn Routine
The System Features Learn Routine dictates how the unit operates. It
is possible to access and change the settings using the Control Cen-
ter button. However, this process can be greatly simplified by using
XKLOADER3.
