Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214
Twisted pair at the steering column or behind radio
White/Orange
White/Gray, White,
White/Pink or White/Black
FT CAN High: Orange/Green
FT CAN Low: Orange/Brown
(-) Parking Lights Output: Green/Black: 2
CHTHD1 (R1-R7)
/ THCHD1 (R1)
(optional)
12-pin Connector
(Vehicle side)
Ignition
Barrel
12-pin Connector
(harness side)
12-pin Connector
(harness side)
20
11
1 10
5
Driver Door Module
(brown 20-pin conn.)
2 3 4 6 7 8
15
9
12
13
14
16 18 19
17
(-) Driver Door
Trigger: Violet, pin 5
Hazard light switch
(black 12-pin conn.)
1
2
3
4
5
6
7
8
9
10
11
12
(-) Hazard Lights:
White/Dk.Blue,
pin 4
(-) RAP Off Output: Yellow/Black: 10
Refer to the Vehicle Wiring Reference Charts for wire color and location.

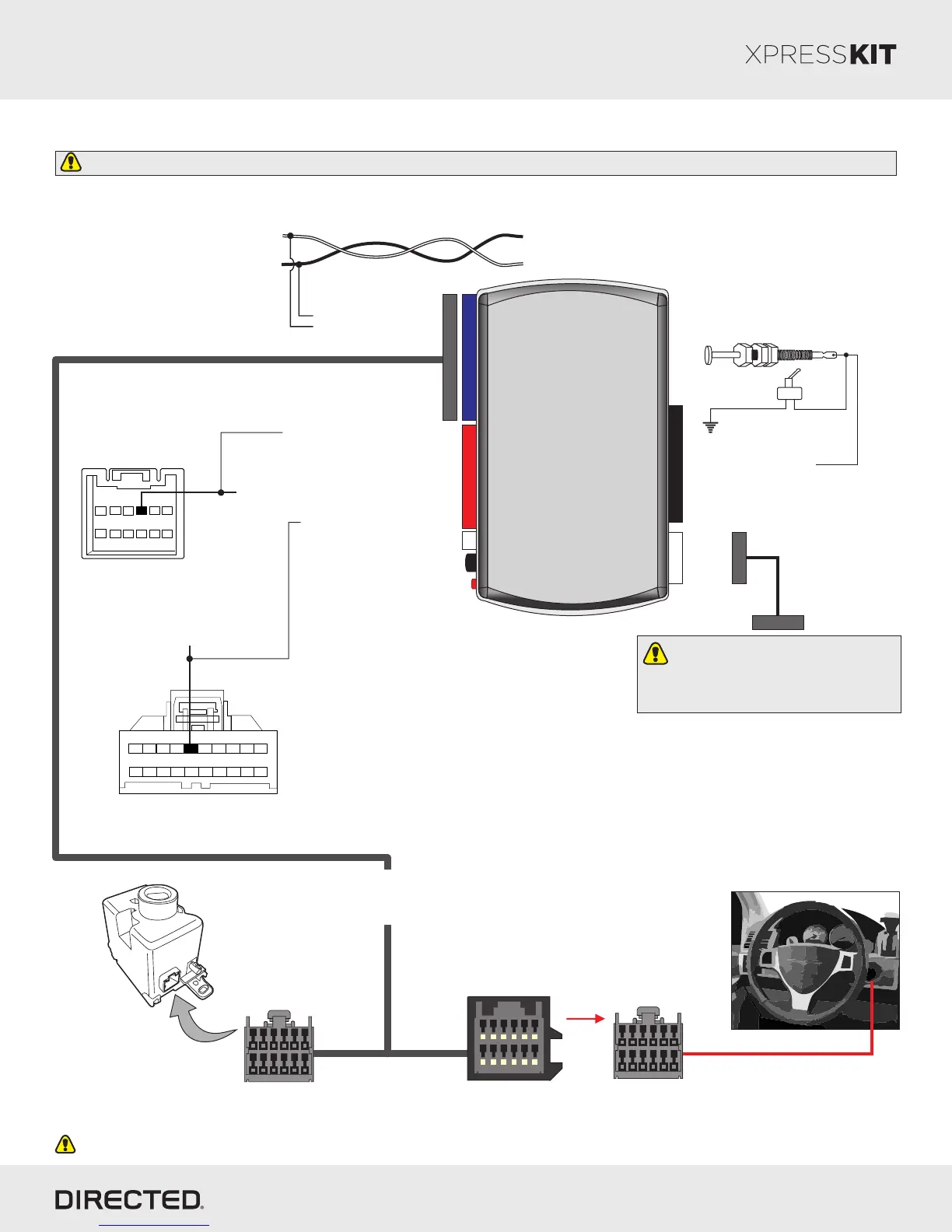

Installation Type 4 - with CHTHD1 (R1-R7) / THCHD1 (R1) T-Harness
Page 12
All connectors are displayed from the wire side (unless specified otherwise).
10
DBALL2
Prog. Button
LED
4
14 12 2
RF
TX
(-) Ground
RX
(+) 12V
6: White/Black: (-) Hood Input
Hood Pin
Remote Start Safety
Override Switch
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
