Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214

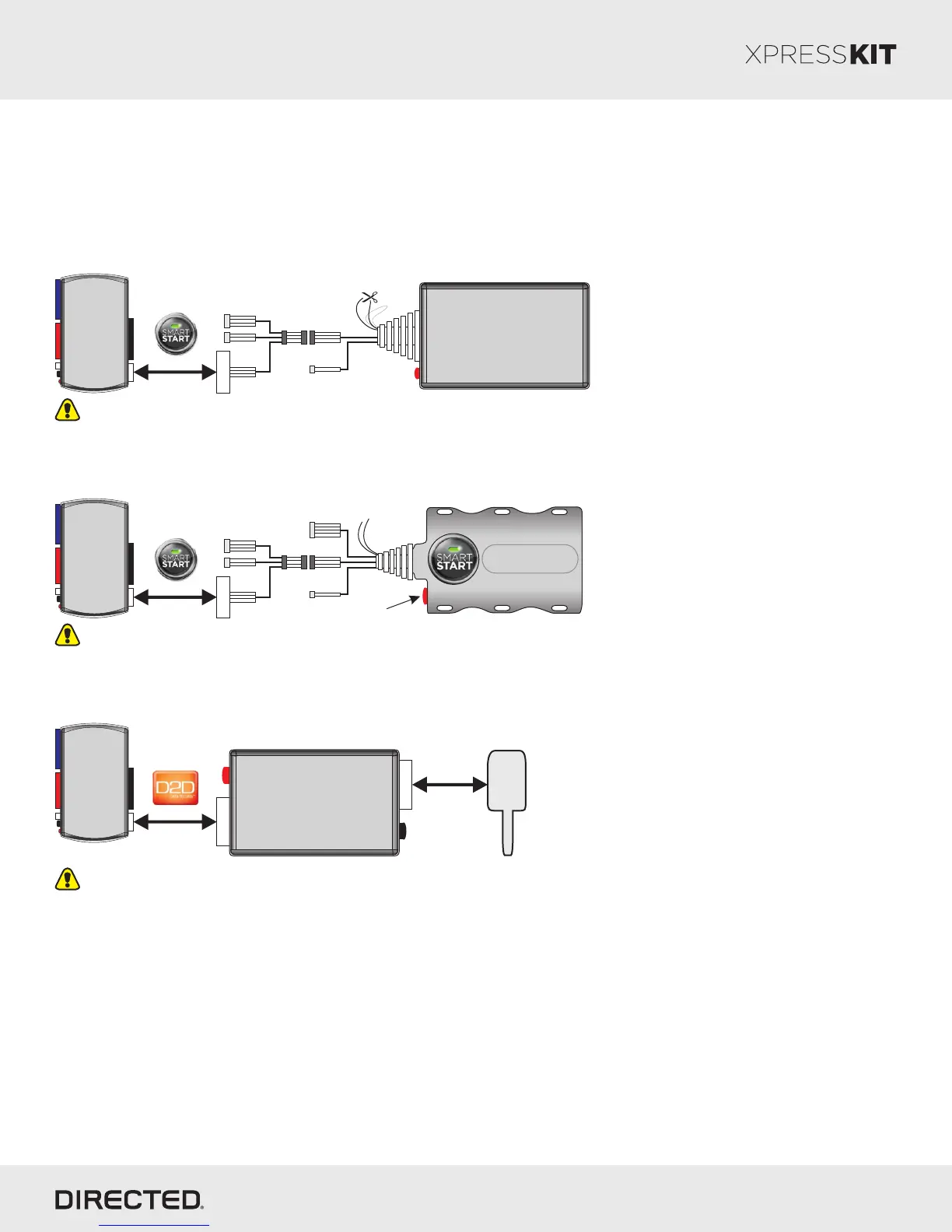

SmartStart/XL202 Installation Notes
Page 24
The optional XL202 and antenna are not included and MUST be purchased separately.
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
4
4
XL202
Antenna
XOVER
SmartStart is optional and not included. It MUST be purchased separately.
SmartStart is optional and not included. It MUST be purchased separately.
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
D2D (4 pins, white)
4 pins
2 pins,
not used
CABLE
CABLE
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DBALL2 package.
2. The modules must be connected in a specific order. Refer to the Module Programming section for more information.
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
SmartStart Revision B
RF Kit
RF Kit & PKE Combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF Kit, PKE & SmartStart BT Combination
SmartStart Revision A
DBALL2
DBALL2
DBALL2
LED
Prog.
Button
D2D (4 pins, white)
4 pins
2 pins,
not used
OR
SmartStart
Configuration Wires (White & Brown or Blue)
Cut Brown or Blue Loop
LED
THIS SIDE UP
LED
The DBALL2 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock
Remote Start Activation, RF Kits or SmartStart (all sold separately). This section provides specific installation information for
SmartStart and XL202.
