Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214

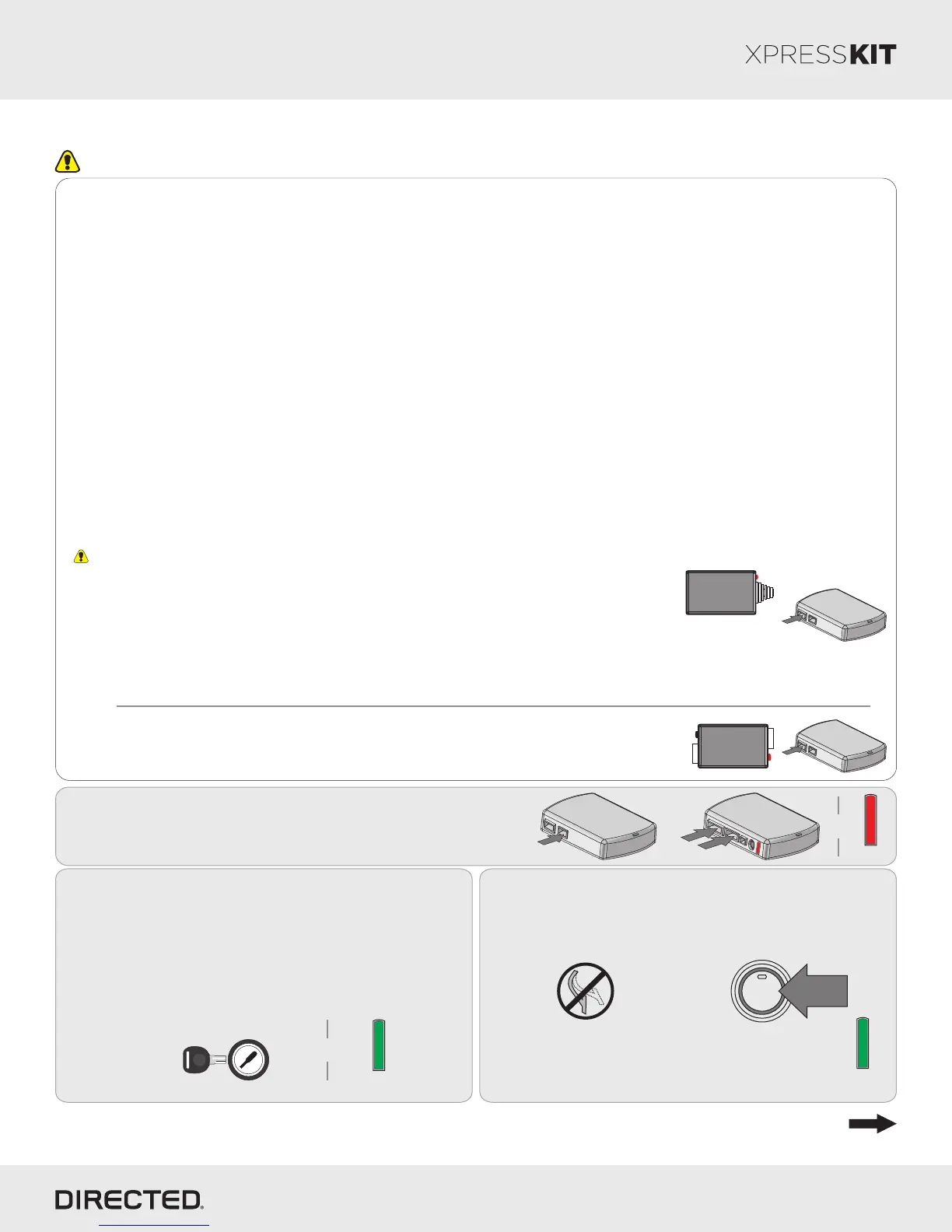

Module Programming (WITH Factory Keyless)
Page 25
2
or
Insert the key into the ignition barrel and turn it
to the ON position.
Key Ignition Push-to-Start (PTS) Ignition
It is important to wait for the LED to start flashing
green. Refer to the LED Diagnostics section for
troubleshooting if the LED does not
flash green within 15 seconds.
Flashes
Green
&
Flashes
Green
Key IN
OFF
START
ON
It is important to wait for the LED to start flashing
green. Refer to the LED Diagnostics section for
troubleshooting if the LED does not
flash green within 15 seconds.
Press the Push-to-Start (PTS) button twice to
turn the ignition ON.
Important: Do NOT press the brake pedal.
2X
ENGINE
START
STOP
PUSH
Do NOT
press the
brake pedal
Refer to the LED Diagnostics section for more information and for troubleshooting purposes.
Go to the next page to complete the module programming.
1
10-pin
D2D
st
1
12-pin
14-pin
nd
2
rd
3
&
Solid
Connect the 10-pin, 12-pin and 14-pin harnesses to
DBALL2, then wait until the LED turns ON solid red.
10-pin
D2D
XL202
10-pin
D2D
SmartStart
OR
The DBALL2 module must be disconnected from any power source before SmartStart can
be connected to it. Failing to do so could damage DBALL2.
a. To ensure that the D2D communication between SmartStart and DBALL2 works properly,
the Gray wire must be connected to a ground source (Rev B SmartStart), and the Brown or
Blue loop must be cut (Rev A SmartStart).
b. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be provided by
the DBALL2 D2D connector.
Connect SmartStart to DBALL2 using the D2D port.
SmartStart Installation
Connect XL202 to DBALL2 using the D2D port.
XL202 Installation
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
Note: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the proper feature and
function programming is selected using XpressVIP (version 4.5 or higher). Visit www.directechs.com to download the latest
version of the application.
Warning! To take advantage of advanced features, you must use XpressVIP 4.5 (and higher) or the Directechs Mobile app.
When the flashing operation is successful, you can proceed with the programming instructions below.
Flashing a module using your computer:
1. Connect the interface module to your computer using the
XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and
select the Config for RSR button.
3. Follow the instructions to select your vehicle, installation
type, and configure your options.
4. Once you have configured the firmware options, click on the
FLASH button.
Flashing a module using your smartphone or tablet
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or
tablet.
3. Select FLASH YOUR MODULE and follow the on screen
instructions.
