Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214
Twisted pair at the steering column or behind radio
FT CAN Low: Orange/Brown
(-) Parking Lights Output: Green/Black: 2
CHTHD1 (R1-R7)
/ THCHD1 (R1)
(optional)
12-pin Connector
(Vehicle side)
Ignition
Barrel
12-pin Connector
(harness side)
12-pin Connector
(harness side)
(-) Driver Door
Trigger: Violet
Driver
Kick
Panel
FT CAN High: Orange/Green
(-) RAP Off Output: Yellow/Black: 10
30
86
85
87
87a
To vehicle’s
(+) Parking Lights
Fuse 15A
+12V
Refer to the Vehicle Wiring Reference Charts for wire color and location.
Passenger kick panel, harness to rear
(+) 12V:
Red/White
(+) Parking Lights:
White/Violet
White/Orange
White/Gray, White
White/Pink or White Black

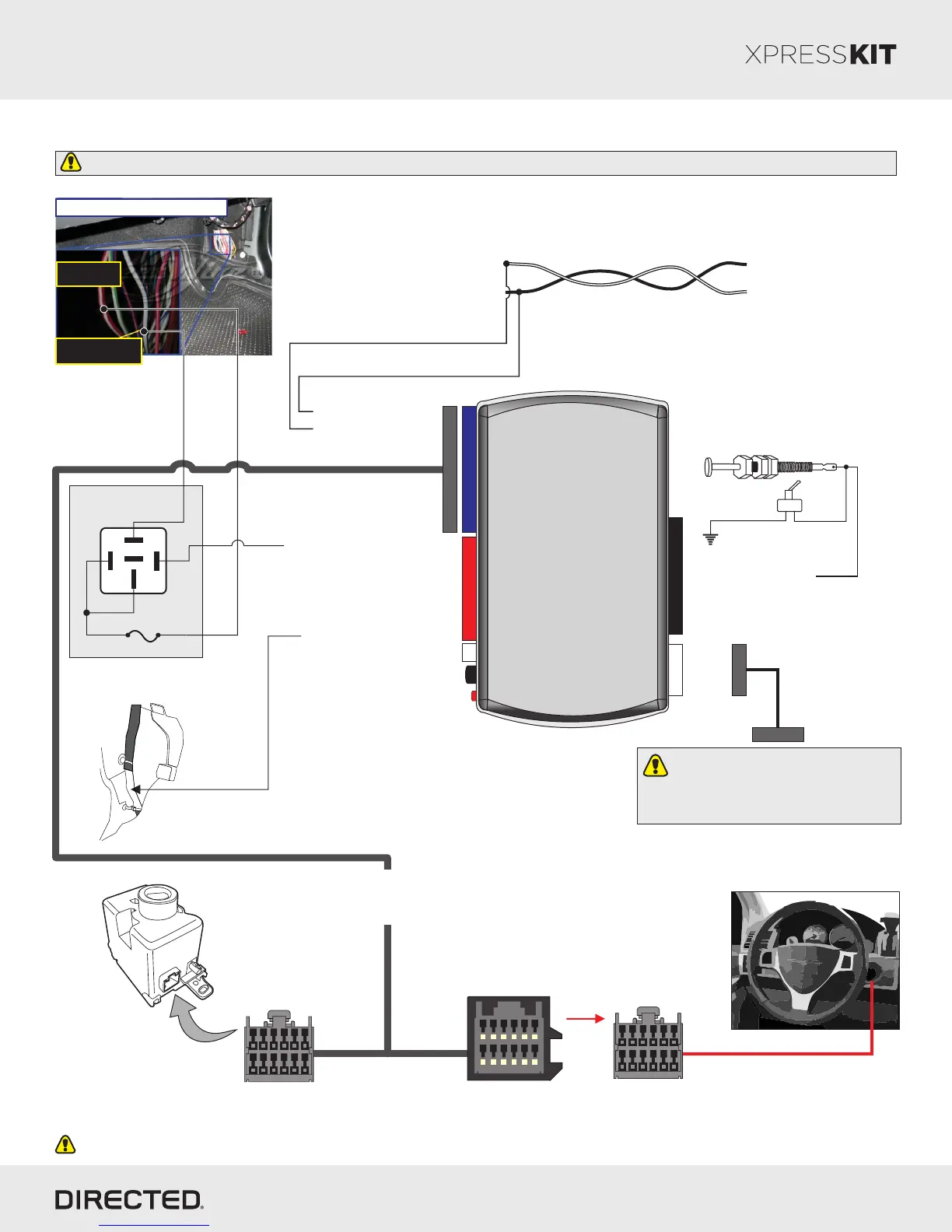

Installation Type 3 - with CHTHD1 (R1-R7) /THCHD1 (R1) T-Harness
Page 9
All connectors are displayed from the wire side (unless specified otherwise).
10
DBALL2
Prog. Button
LED
4
14 12 2
RF
TX
(-) Ground
RX
(+) 12V
6: White/Black: (-) Hood Input
Hood Pin
Remote Start Safety
Override Switch
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
