Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214
(-) Parking Lights Output: Green/Black
N.C.
8-pin Connector
at ignition switch
(Vehicle side)
8-pin Connector
(harness side)
8-pin Connector
(harness side)
Ignition Switch
T
-04
HS CAN High: Orange/Green
HS CAN Low: Orange/Brown
Diagnostic Connector OBDII
(connector side view)
1 8
169
HS CAN High: Pin 6
HS CAN Low: Pin 14
(+) Parking lights:
White/Violet
30
86
85
87
87a
To vehicle’s
(+) Parking Lights
Fuse 15A
+12V
Driver Door Trigger
Refer to the Vehicle
wiring reference chart.
(+) 12V
Refer to the Vehicle
wiring reference chart.
Drivers kick
harness to rear

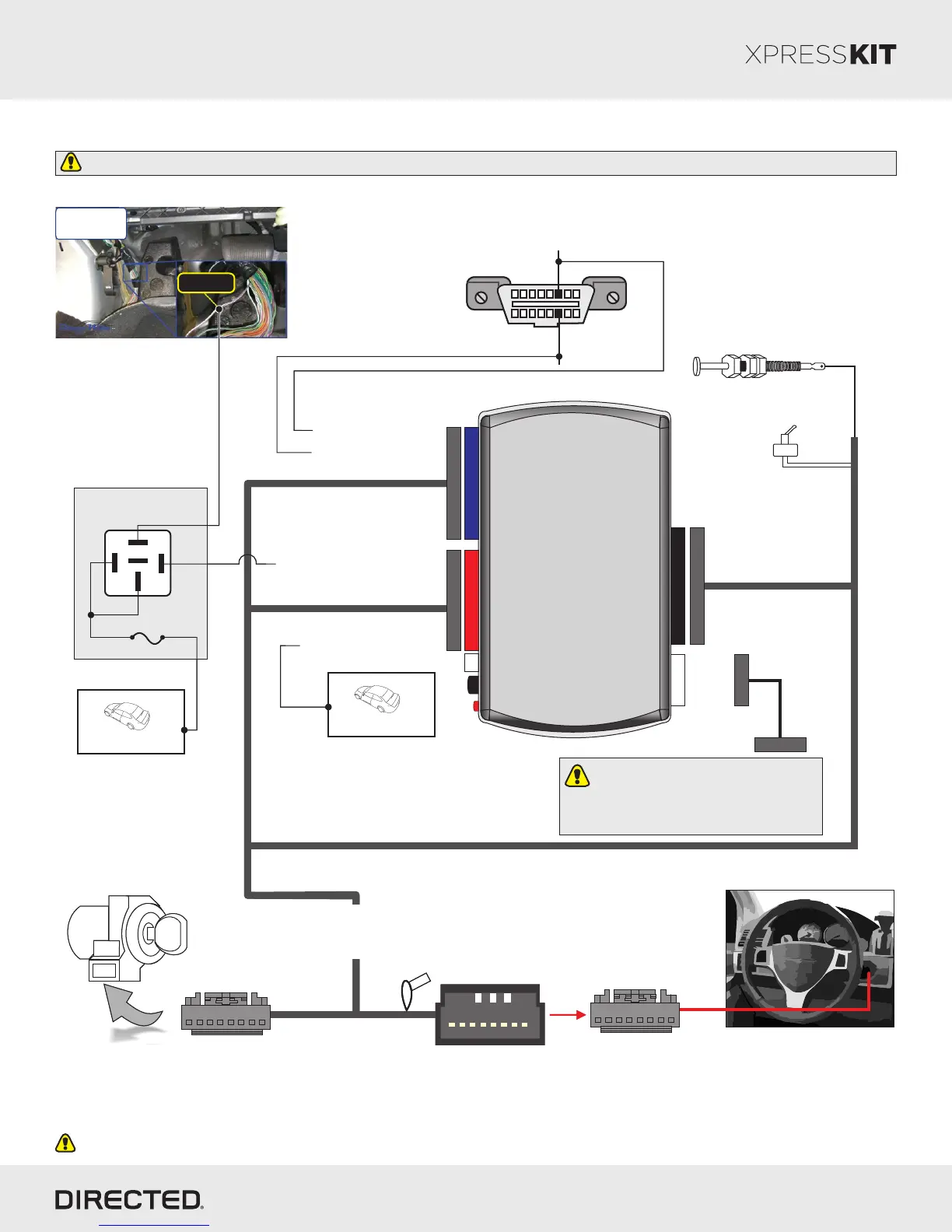

Installation Type 5 - with CHTHD2 (R1-R6 & R9-R10) /THCHD2 (R1) T-Harness
Page 15
TX
(-) Ground
RX
(+) 12V
10
DBALL2
Prog. Button
LED
4
14 12 2
(-) RAP Off Output: Yellow/Black
RF
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
N.C.
8-pin Connector
at ignition switch
(Vehicle side)
8-pin Connector
(harness side)
8-pin Connector
(harness side)
T-04
Remote Start Safety
Override Switch
Hood Pin
White/Black
With the exception of the OBDII Diagnostic connector, all adapters are displayed from the wire side (unless specified otherwise).
1 8
169
HS CAN High: Pin 6
HS CAN Low: Pin 14
(+) Parking lights:
White/Violet
30
86
85
87
87a
To vehicle’s
(+) Parking Lights
Fuse 15A
+12V
Refer to the Vehicle Wiring Reference Charts for wire color and location.
Driver Door Trigger
Refer to the Vehicle
wiring reference chart.
(+) 12V
Refer to the Vehicle
wiring reference chart.
Drivers kick
harness to rear
CHTHD2 (R1-R6 & R9-10)
/ THCHD2 (R1)
(optional)

Directed DBALL2 Specifications

General

Brand	Directed
Model	DBALL2
Category	Remote Starter
Language	English
