Directed DBALL2 - Page 19

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214
(-) RAP Off Output: Yellow/Black
(-) Parking Lights Output: Green/Black
30
86
85
87
87a
To vehicle’s
(+) Parking Lights
Fuse 15A
+12V
8-pin Connector
at ignition switch
(Vehicle side)
Sentry Key Module
near Ignition Switch
CHTHD2 (R1-R6 & R9-10)
/ THCHD2 (R1)
(optional)
8-pin Connector
(harness side)
8-pin Connector
(harness side)
Drivers or passenger kick
harness to rear
(+) Parking Lights
White/ Violet
Refer to the Vehicle Wiring Reference Charts for wire color and location.
(+) 12V
Refer to the Vehicle
wiring reference chart.
Driver Door Trigger
Refer to the Vehicle
wiring reference chart.

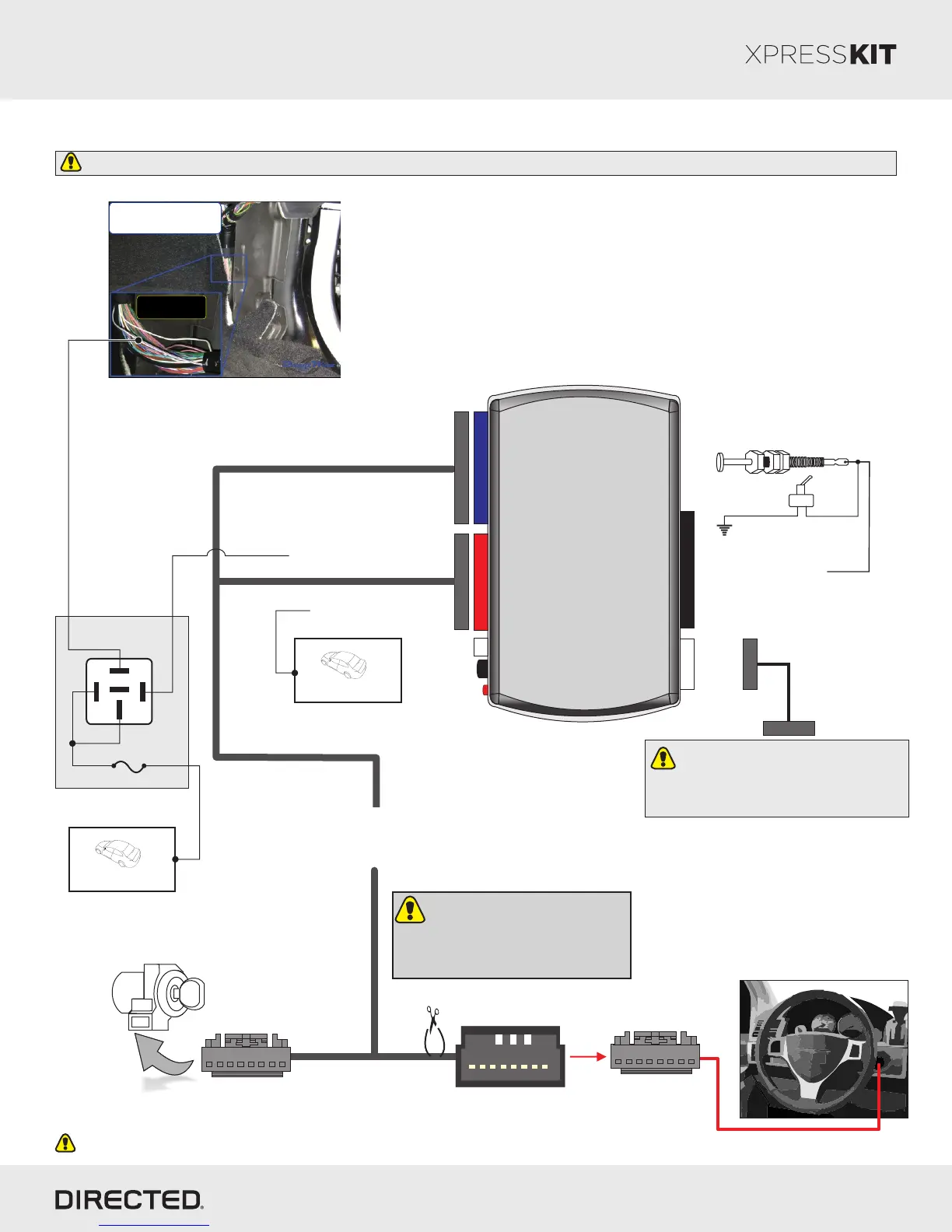

Installation Type 6 - with CHTHD2 (R1-R6 & R9-R10) /THCHD2 (R1) T-Harness
Page 19
All connectors are displayed from the wire side (unless specified otherwise).
10
DBALL2
Prog. Button
LED
4
14 12 2
RF
TX
(-) Ground
RX
(+) 12V
6: White/Black: (-) Hood Input
Hood Pin
Remote Start Safety
Override Switch
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
CUT
T-04
For CHTHD2 R9-R10:
If the vehicles security light
remains ON after performing
a remote start takeover, then Cut the
Violet/Brown T-04 loop found on
the T-Harness.
