Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214

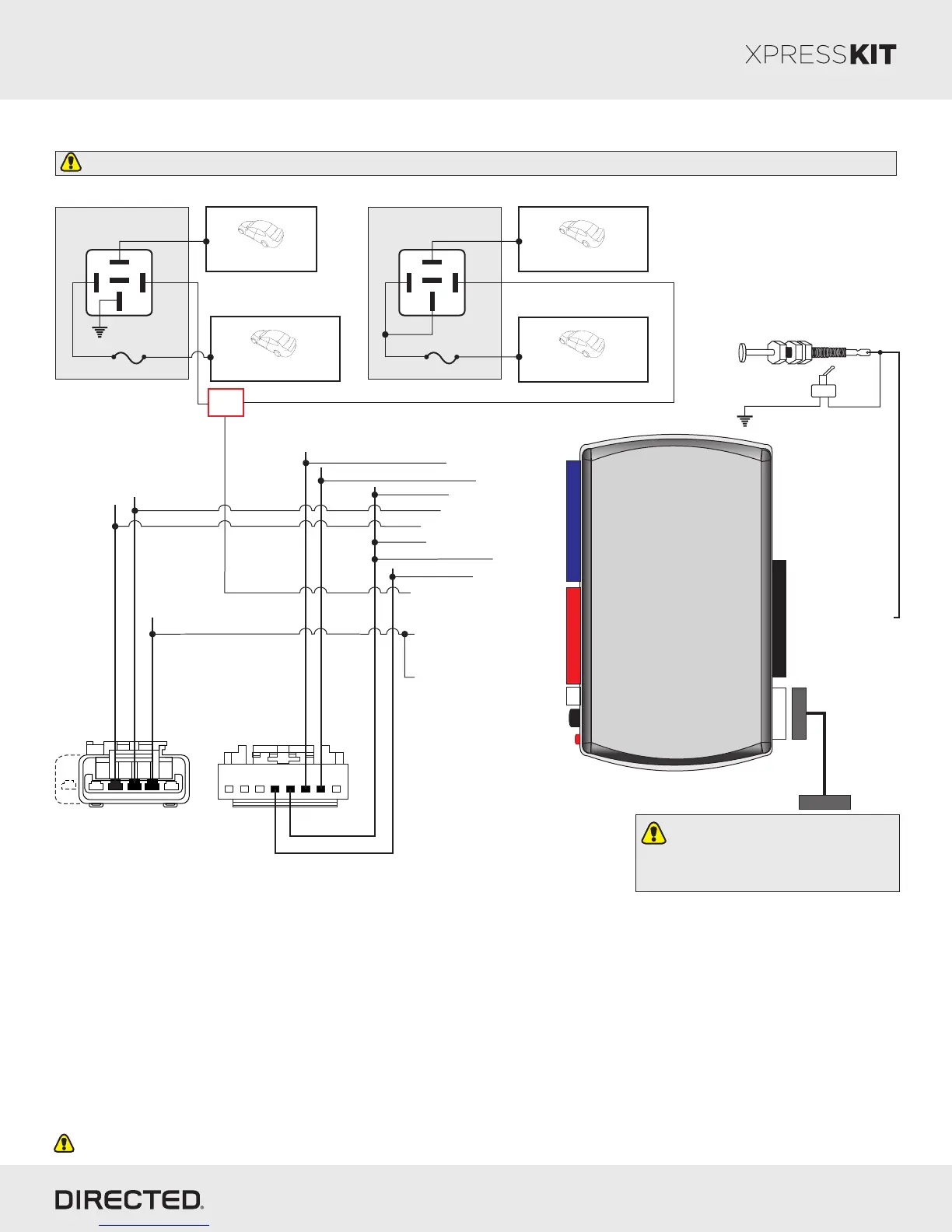

FT CAN High: Tan/Black: 3
FT CAN Low:White
or White/Pink ,
pin 7
FT CAN High:
White/Orange,
pin 6
1
8
(+) Ign.: Pink/White or Pink/Green, pin 3
(+) Start: Pin 4
MUX:
Violet/Brown,pin 2
1
Ignition Switch
(connector side view)
Sentry Key Module
near Ignition Switch
(connector side view)
FT CAN Low: Tan: 4
(-) Ground: Black: 14
(+) 12V: Red: 13
(+) Ignition Output: Yellow: 8
(+) Starter Output: Yellow/Red: 11
(MUX) Ign. Output: Violet/Green: 8
(MUX) Ign. Output: Violet/Brown: 9
(-) Pk. Lights Output: Green/Black: 2
(+) Ignition Input: Brown: 7
(+) Starter Input: Brown/Red: 12
(-) Parking Lights
Refer to the Vehicle
wiring reference chart.
30
86
85
87
87a
To vehicle’s
(-) Parking Lights
Fuse 15A
+12V
5-pin
or
6-pin
(+) 12V: Red or
Red/Striped, pin 5
(-) Ground:
Black or
Black/Striped,
pin 4
Refer to the Vehicle Wiring Reference Charts for wire color and location.
(+) Parking Lights
30
86
85
87
87a
To vehicle’s
(+) Parking Lights
Fuse 15A
+12V
Refer to the Vehicle
wiring reference chart.
(+) 12V Pk. Light Relay
Refer to the Vehicle
wiring reference chart.
OR
(+) 12V Pk. Light Relay
Refer to the Vehicle
wiring reference chart.
Installation Type 7
Page 22
10
DBALL2
Prog. Button
LED
4
14 12 2
RF
6: White/Black: (-) Hood
Hood Pin
Remote Start Safety
Override Switch
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
All connectors are displayed from the wire side (unless specified otherwise).

Directed DBALL2 Specifications

General

Brand	Directed
Model	DBALL2
Category	Remote Starter
Language	English
