Directed DBALL2 User Manual

Platform: DBALL2
Firmware: CHRYSLER Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170214
(MUX) Parking Lights Output: Violet/Green: 8
(MUX) Parking Lights Output: Violet/Brown: 9
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Ignition Interrupt (vehicle side): Yellow: 8
Ignition Interrupt (conn. side): Orange/Yellow: 9
(+) 12V: Brown: 7
(-) Ground: Black: 14
(+) 12V: Red: 13
PU
S
H
TO
R
E
L
EA
S
E
Driver
Kick
Panel
(-) Driver Door
Trigger: Violet
(MUX)
Parking Lights:
Pin 3
1
6
12
7
(+) Ignition: Pink/White, pin 3
(+) 12V:Lt.Blue/Red ,pin 1
(-) Ground: Black/Striped, pin 4
HS CAN High: Pin 5
HS CAN Low: Pin 6
Ignition
Barrel
Headlight switch
(black 6-pin conn.)
6
5
4
3
2
1
(-) RAP Off Output: Yellow/Black: 10
Refer to the Vehicle Wiring Reference Charts for wire color and location.
CUT
Ignition switch
(Connector side view)

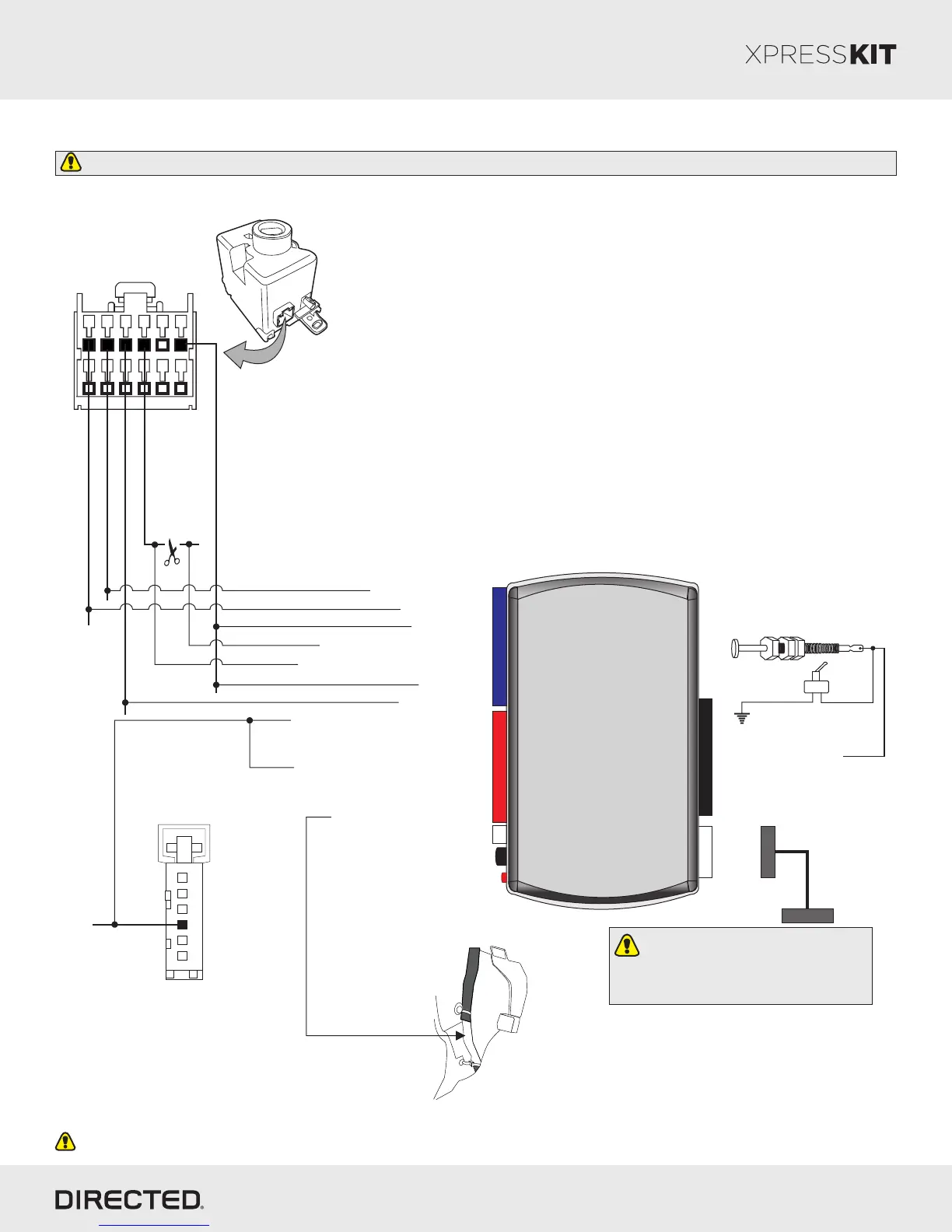

Installation Type 2 - without T-Harness
Page 7
All connectors are displayed from the wire side (unless specified otherwise).
10
DBALL2
RF
Prog. Button
LED
4
14 12 2
TX
(-) Ground
RX
(+) 12V
6: White/Black: (-) Hood Input
Hood Pin
Remote Start Safety
Override Switch
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.

Directed DBALL2 Specifications

General

Brand	Directed
Model	DBALL2
Category	Remote Starter
Language	English
