Page 11
Rev.: 20141117
Platform: DBALL/DBALL2
Firmware: CHRYSLER7 Range Extender Ready (RXT) Installation
© 2014 Directed. All rights reserved.

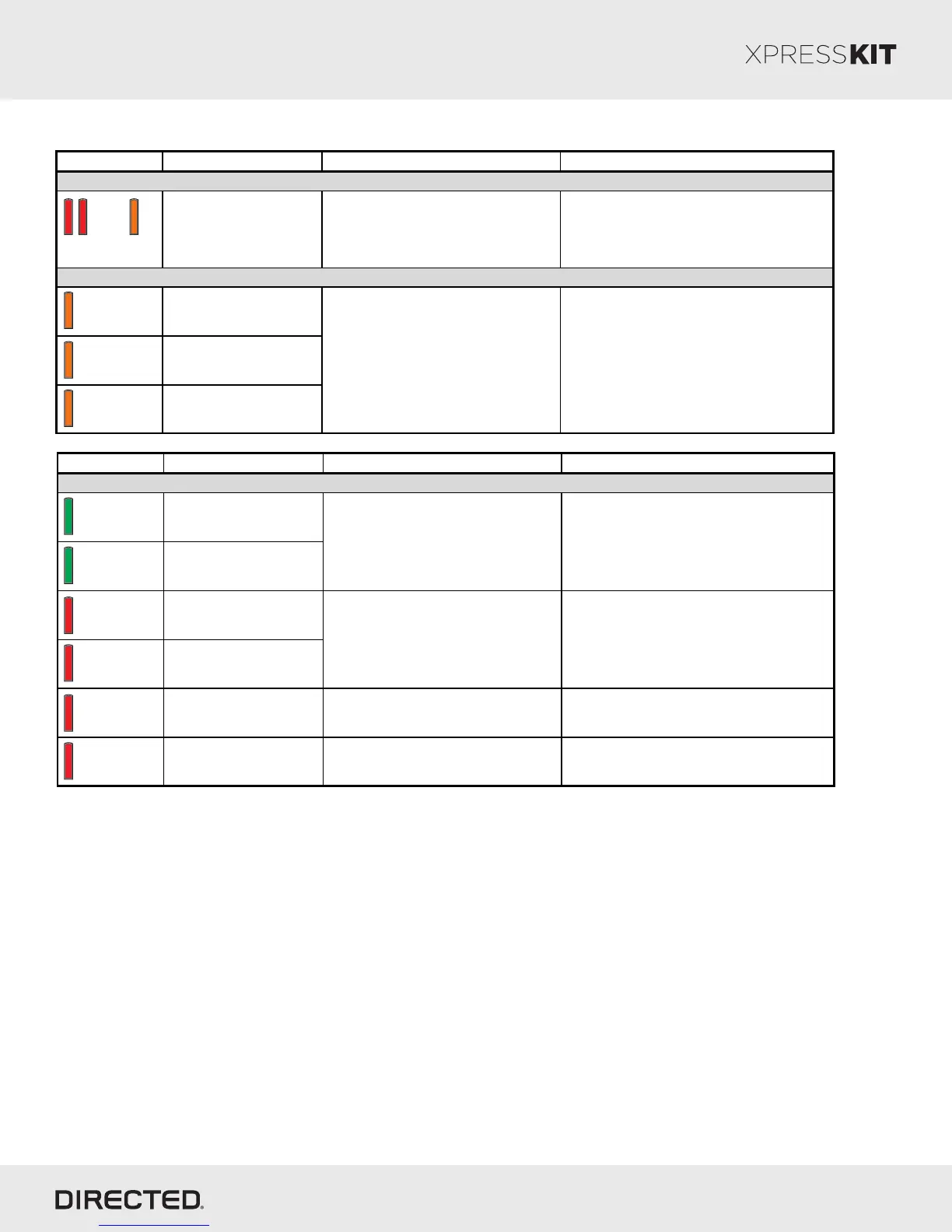

LED Description Troubleshooting Comment
External module synchronization
(Flashes red, red,
then orange) x 10
Diagnostic OBDII feature not
initialized.
Diagnostic OBDII BUS statuses like DTC codes
w ill not be available on SmartStart because the
BUS w as not detected. Please check your
HSCAN connections, reset, and reprogram the
module.
SmartStart can still be used but w ill w ork w ith limited
statuses.
D2D and W2W commands
Flashes orange
x 1
LOCK command received.
Flashes orange
x 2
UNLOCK command
received.
Flashes orange
x 3
TRUNK command received.
If the bypass module fails to flash, it means the
module did not receive the signal.
Commands can come from RF, D2D or W2W.
LED Description Troubleshooting Comment
RXT Code
Flashes green
x7
Start command received.
Flashes green
x8
Stop command received.
Flashes red x 5 Start failed.
Flashes red x 6 Stop failed.
Flashes red x 7 RFTD disabled.
OEM Remote Start Activation w as attempted
w hen RFTD feature is disabled.
Activated from Web automatically w hen using RXT
flash tool or can be done manually. Refer to feature
programming section for more information.
Flashes red x 8 OEM RS disabled.
RXT start not possible w hen OEM system is
disabled.
Refer to the ow ner documentation to activate it.
If the bypass module fails to flash, it means the
module did not receive the signal.
If using XL202, make sure that the proper cable is
connected. When using SmartStart make sure that
SmartStart is configured in D2D.
RXT start command not executed.
Module received the command, but the car did not
perform the action.
N/C: Violet/Brown
N/C: Violet/White
N/C: Blue/Red
N/C: Orange/Black
N/C: Yellow/Red
