Rev.: 20141117
Platform: DBALL/DBALL2
Firmware: CHRYSLER7 Range Extender Ready (RXT) Installation
© 2014 Directed. All rights reserved.
Page 6

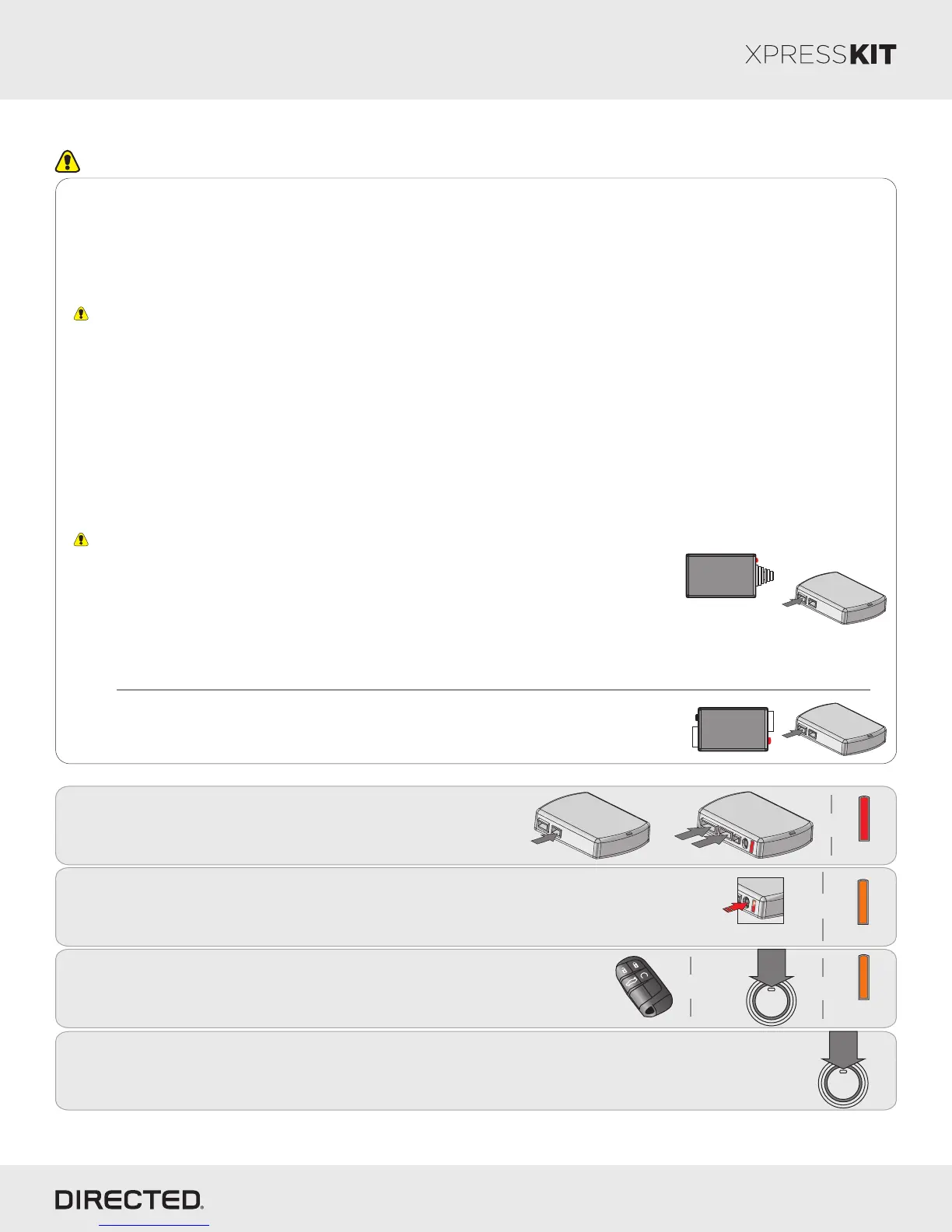

Module Programming
5
Turn the ignition OFF.
to OFF
2
10-pin
D2D
st
1
Connect the 10-pin, 12-pin and 14-pin harnesses to
DBALL, then wait until the LED turns ON solid red.
12-pin
14-pin
nd
2
rd
3
&
Solid
ENGINE
START
STOP
PUSH
4
Make sure the RKE (Remote Keyless Entry) is inside the vehicle.
Press the Start/Stop button to turn the ignition ON
("RUN" illuminates on Start/Stop switch).
The LED is solid orange for 3 seconds.
&
&
to RUN
Flashes
ENGINE
START
STOP
PUSH
PANIC
x2
x2
3
Press 5 times on the IPB button.
The LED flashes orange.
Solid
3 seconds
&
Press x5
Module Programming
Refer to the LED Diagnostics section on page 10 for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
Note: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the proper feature and
function programming is selected using XpressVIP (version 4.5 or higher). Visit www.directechs.com to download the latest
version of the application.
Warning! To take advantage of advanced features, you must use XpressVIP 4.5 or higher. Using version 2.9 or 3.1 will limit
available functions and features.
1. Connect the interface module to your computer using the XKLoader.
2. Open an Internet Explorer browser (version 6 or higher), and go to www.directechs.com. The detail of the platform and firmware
that is currently saved on the interface module will be indicated in the top left corner of the page.
3. Select the year, make and model of the vehicle; the page will refresh to display the compatible firmware.
4. In the search result page, select Config for RXT, and follow the instructions provided on the screen.
5. Once you have configured your options, click on the FLASH button to upload the firmware onto the interface module.
6. The following message will be displayed when the upload is completed:
“The flashing is successfully completed. You may now unplug the kit.”
You can now proceed with the programming instructions below.
10-pin
D2D
XL202
10-pin
D2D
SmartStart
OR
The DBALL module must be disconnected from any power source before SmartStart can be
connected to it. Failing to do so could damage DBALL.
a. To ensure that the D2D communication between SmartStart and DBALL works properly, the
Gray wire must be connected to a ground source (Rev B SmartStart), and the Brown or Blue
loop must be cut (Rev A SmartStart).
b. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be provided by
the DBALL D2D connector.
Connect SmartStart to DBALL using the D2D port.
SmartStart Installation
Connect XL202 to DBALL using the D2D port.
XL202 Installation
N/C: Violet/Brown
N/C: Violet/White
N/C: Blue/Red
N/C: Orange/Black
N/C: Yellow/Red
To Next Page
