Directed Xpresskit dball 2 User Manual

Rev.: 20141117
Platform: DBALL/DBALL2
Firmware: CHRYSLER7 Range Extender Ready (RXT) Installation
© 2014 Directed. All rights reserved.

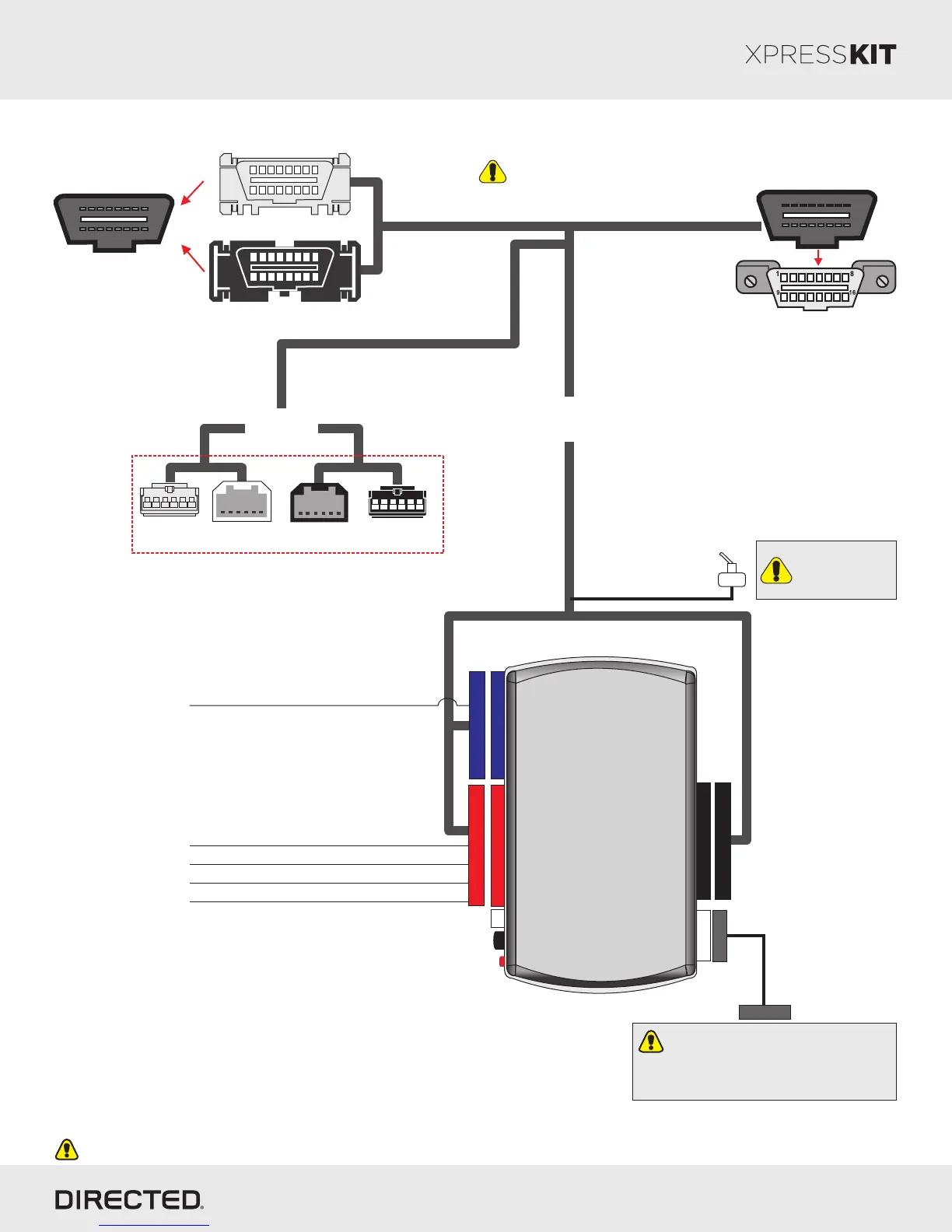

Installation with T-Harness THCHD3
OBDII
OBDII
Diagnostic 16-pin Connector
(vehicle side)
OBDII
OR
OBDII
Diagnostic 16-pin Connector
(vehicle side)
These T-Harness connectors are
NOT interchangeable. They will fit
ONLY the appropriate vehicles.
NOT Used
T-01
T-02
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Remote Start Safety
Override Switch
10
LED
4
14 12 2
THCHD3 Rev. 1
(Optional T-Harness)
Page 4
6-pin
Connectors
With the exception of the OBDII Diagnostic connector, all connectors are displayed from the wire side.
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
RF
Prog. Button
DBALL/
DBALL2
N/C: Violet/Brown
N/C: Violet/White
N/C: Blue/Red
N/C: Orange/Black
N/C: Yellow/Red
N/C: Violet/Brown
N/C: Violet/White
N/C: Blue/Red
N/C: Orange/Black
N/C: Yellow/Red
