lPage 71
DishPro Wiring Diagrams

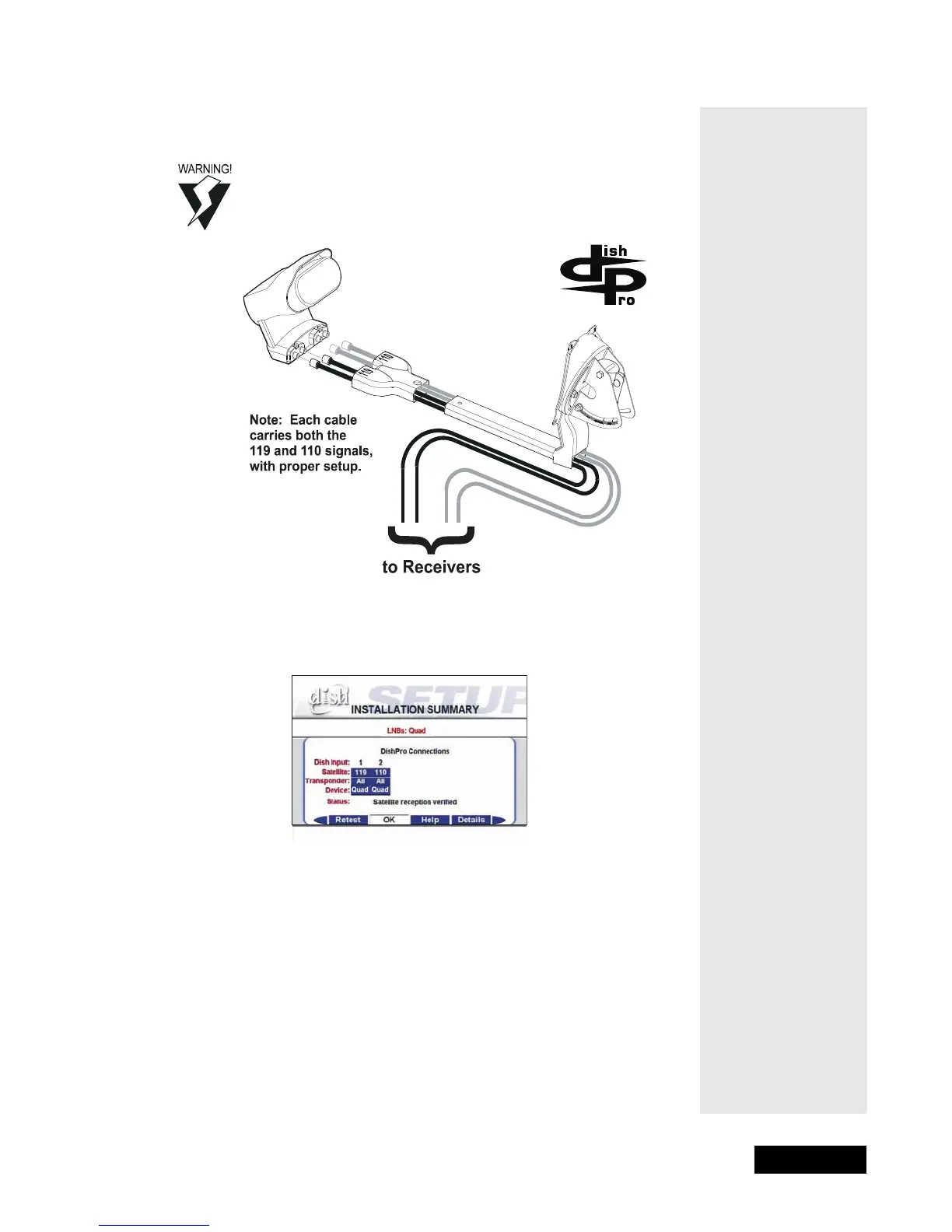

DISH 500, ONE DISHPRO QUAD LNBF, FOUR CABLES, NO
SWITCH, FOUR DISHPRO RECEIVERS
This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC)
and all local electrical codes. Please see Ground the System
on page page 90 for more information.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to the
one shown below.
.
