Page 72
Installation Instructions
Chapter 4

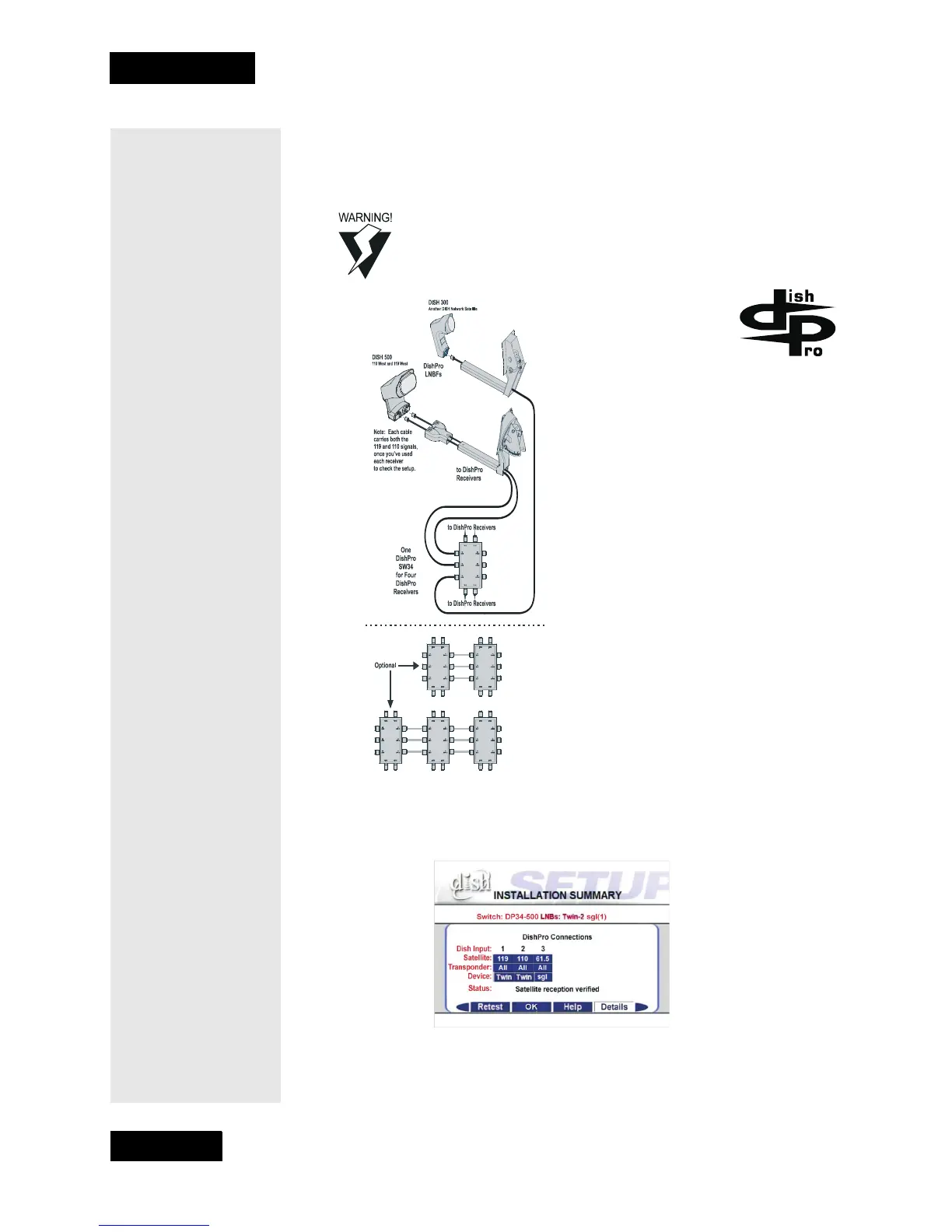

DISH 500 WITH A DISHPRO TWIN LNBF, ONE DISH300 WITH
A DISHPRO SINGLE LNBF, ONE DP34 SWITCH,
MULTIPLE DISHPRO RECEIVERS (ALL DISHPRO)
This diagram leaves out grounding to be clear. Make sure
you ground the system per the National Electrical Code
(NEC) and all local electrical codes. Please see Ground
the System on page 90 for more information.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to
the one shown below.
Two
DishPro34
Switches
for eight
DishPro
Receivers
Three
DishPro34
Switches for
twelve DishPro
Receivers
To Next Page
