Page 74
Installation Instructions
Chapter 4

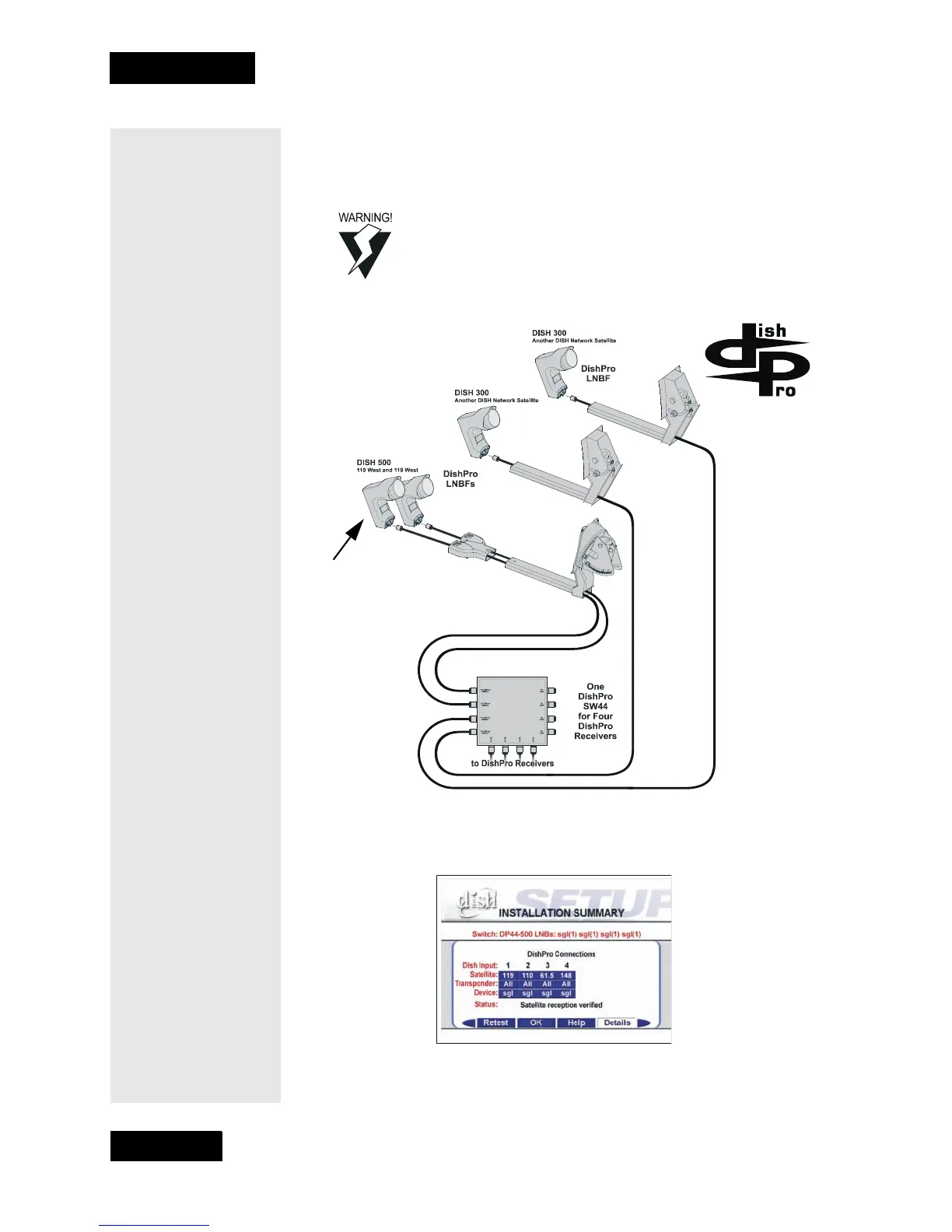

THREE DISHES, FOUR SINGLE-OUTPUT DISHPRO LNBFS,
FOUR CABLES, ONE DP44 SWITCH, FOUR DISHPRO
RECEIVERS (ALL DISHPRO)
This diagram leaves out grounding to be clear. Make sure
you ground the system per the National Electrical Code
(NEC) and all local electrical codes. Please see Ground
the System on page page 90 for more information
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to
the one shown below.
A DishPro
Twin LNBF
could be
substituted
for these
single
